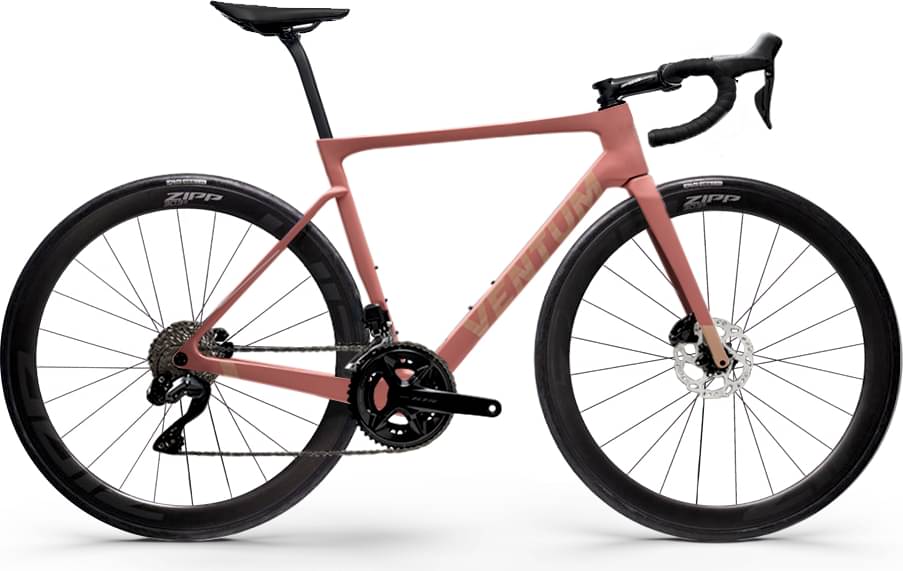

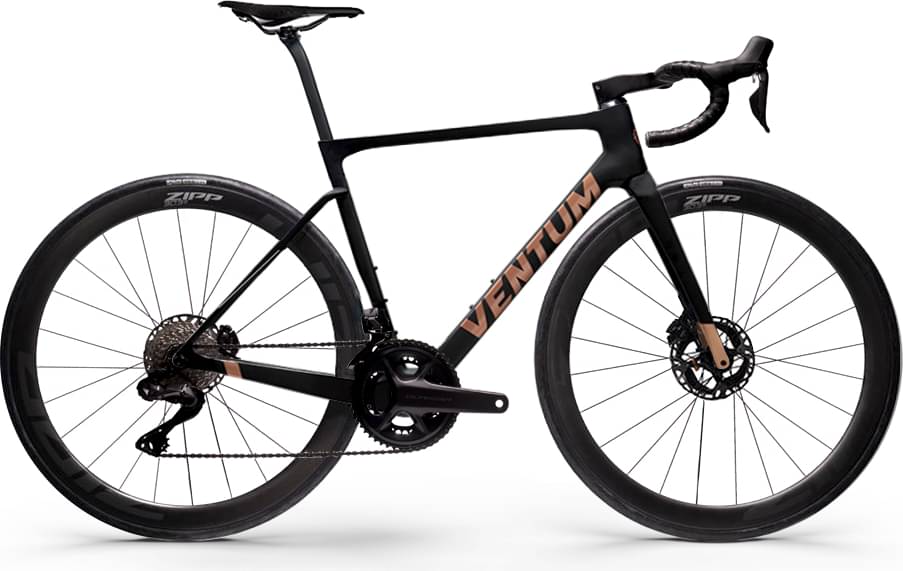

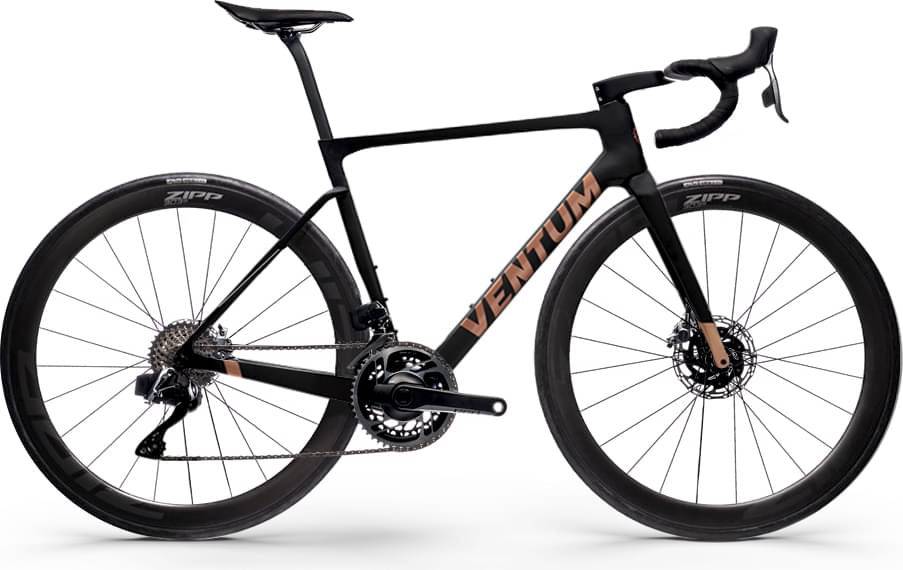

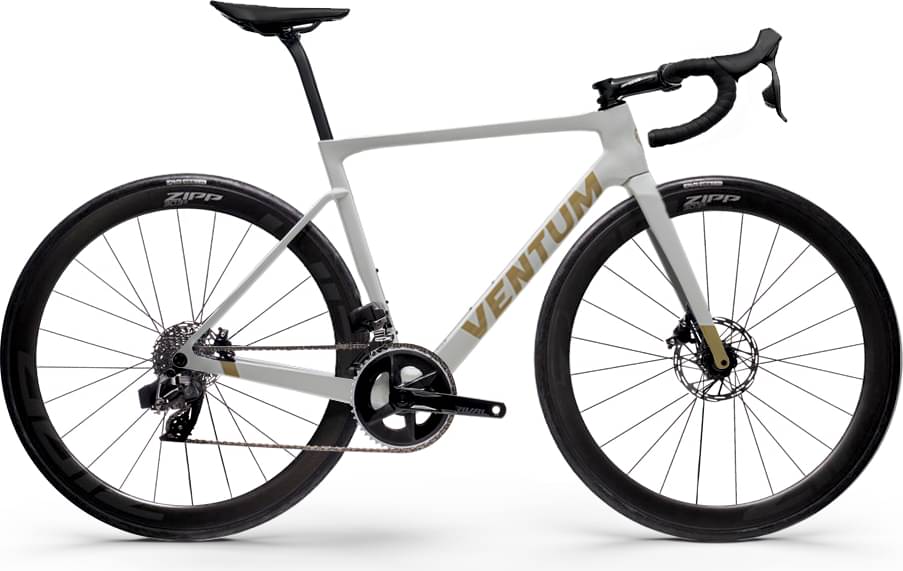

ventum NS1 SHIMANO DURA-ACE Di2 2023
2023 Road
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SHIMANO DURA-ACE Di2
Shift Levers
SHIMANO DURA-ACE Di2
Crank
SHIMANO DURA-ACE Di2
Brakes
Brakes
SHIMANO DURA-ACE Di2
Fit data

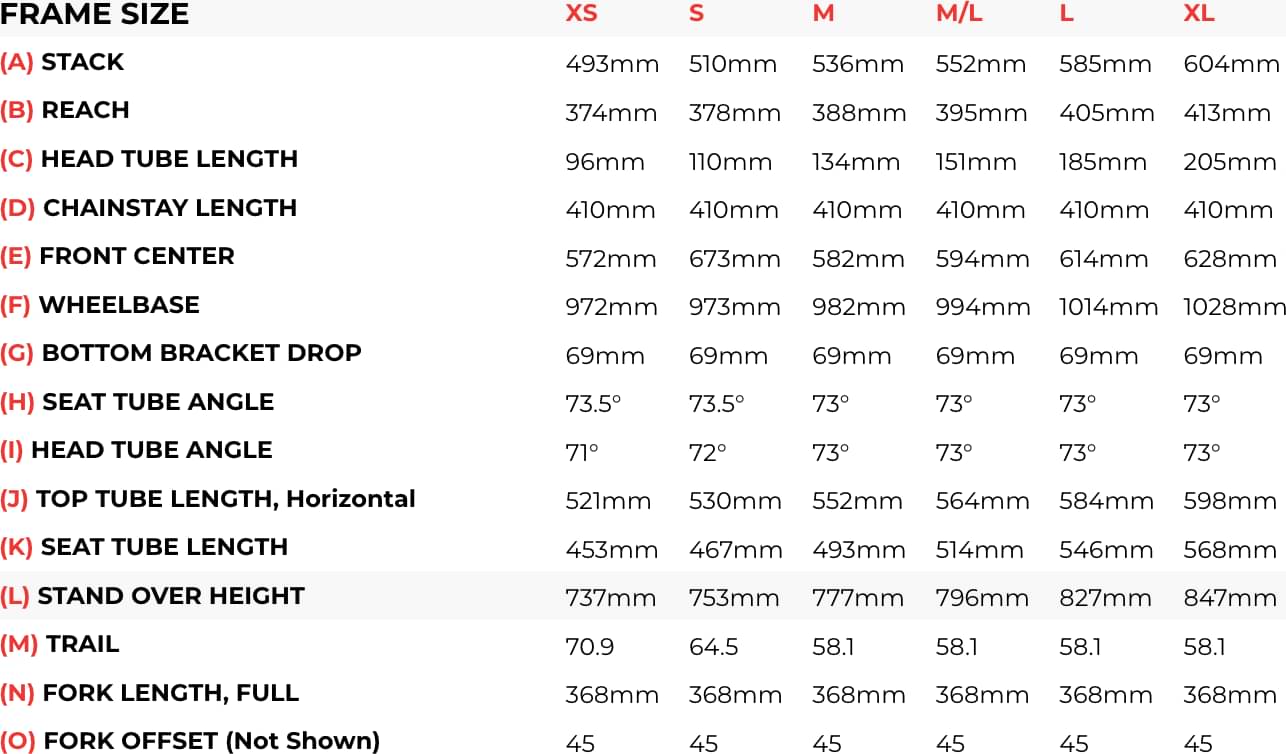

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.35 mm | 1.38 mm | 1.4 mm | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 572 mm | 673 mm | 582 mm | 594 mm | 614 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70.9 mm | 64.5 mm | 58.1 mm | 58.1 mm | 58.1 mm | 58.1 mm |
| Stack | 495 mm | 512 mm | 538 mm | 554 mm | 587 mm | 606 mm |
| Reach | 376 mm | 380 mm | 390 mm | 397 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 532 mm | 554 mm | 566 mm | 586 mm | 600 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 453 mm | 467 mm | 493 mm | 514 mm | 546 mm | 568 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 96 mm | 110 mm | 134 mm | 151 mm | 185 mm | 205 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 974 mm | 975 mm | 984 mm | 996 mm | 1016 mm | 1030 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 739 mm | 755 mm | 779 mm | 798 mm | 829 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model
NS1 SHIMANO DURA-ACE Di2 is a Ventum Ns1 model. There are 12 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Ventum NS1 SHIMANO 105 Di2 2023 has a starting price of 4199$. Ventum NS1 SHIMANO DURA-ACE Di2 2023 on the other hand is the most expensive at 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ventum NS1 SHIMANO DURA-ACE Di2 price was 7999$. Comparing this to the average Aero bike price, we see that the price is 89.95% more expensive.
NS1 SHIMANO DURA-ACE Di2 components
Fork material
NS1 SHIMANO DURA-ACE Di2 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Ventum NS1 SHIMANO DURA-ACE Di2 2023, has a 700c model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ventum NS1 SHIMANO DURA-ACE Di2 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Ventum NS1 SHIMANO DURA-ACE Di2 bike has 6 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
