Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ventum NS1 Carbon Frame
Suspension Fork
Ventum NS1 Carbon Fork
Drivetrain
Rear Derailleur
SRAM Force RD-FRC-E-D1
Front Derailleur
SRAM Force FD-FRC-E-D1
Shift Levers
SRAM Force ED-FRC-D1
Cassette
SRAM CS-XG-1250-D1
Wheels
Rims
Vision Team 30 Alloy, ENVE Foundation 45, ENVE SES 3.4, ENVE SES 6.7, Zipp 303 S, Zipp 303 Firecrest, Zipp 404 Firecrest
Brakes
Brakes
Rim
Cockpit
Handlebar
Ventum Carbon One-Piece Bar/Stem
Seat
Seatpost
Ventum Seatpost, Material: Carbon, 400mm Length, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.39 mm | 1.4 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 568 mm | 575 mm | 584 mm | 596 mm | 614 mm | 630 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 57.4 mm | 57.4 mm | 57.4 mm | 57.4 mm | 57.4 mm | 57.4 mm |
| Stack | 486 mm | 505.5 mm | 532 mm | 548 mm | 581 mm | 600 mm |
| Reach | 361 mm | 374 mm | 384 mm | 391 mm | 401 mm | 409 mm |
| Top Tube Length | 509 mm | 525 mm | 548 mm | 560 mm | 579 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 447 mm | 467 mm | 493 mm | 514 mm | 546 mm | 568 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 82 mm | 110 mm | 134 mm | 151 mm | 185 mm | 205 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 968 mm | 971 mm | 980 mm | 992 mm | 1010 mm | 1026 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 696 mm | 724 mm | 746 mm | 772 mm | 806 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

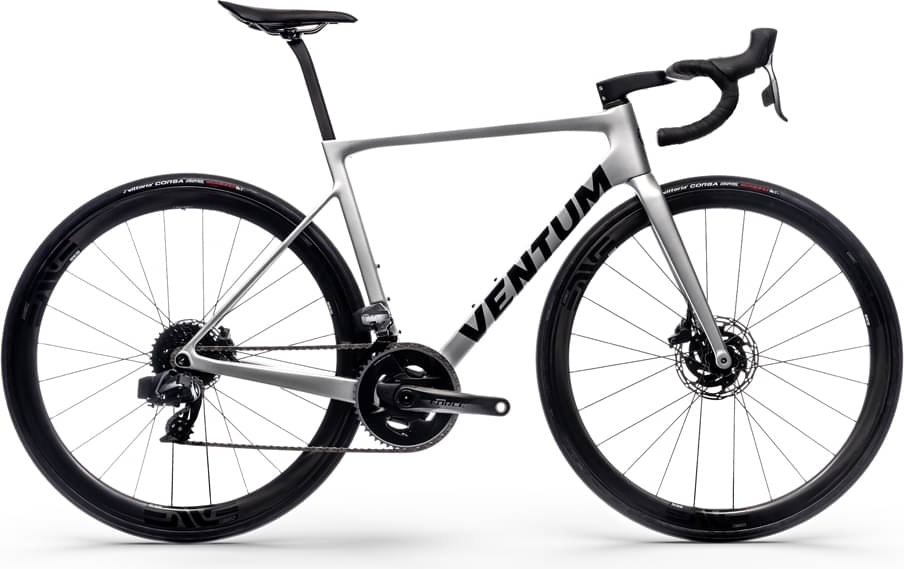

NS1 SRAM FORCE AXS completes the Ventum Ns1 model. There are 12 bikes that carry this model name. You can easily view all of the Ventum Ns1 bikes models from 2022, here.
Model range prices
Ventum NS1 SRAM RIVAL AXS 2022 is the cheapest bike model and costs 4499$. Ventum NS1 SHIMANO 12-SPEED DURA-ACE Di2 2022 is the most expensive one and costs 8999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ventum NS1 SRAM FORCE AXS price was 6499$. Comparing this to the average Aero bike price, we see that the price is 54.33% more expensive.
Overview of components
Fork material
NS1 SRAM FORCE AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Ventum NS1 SRAM FORCE AXS 2022, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NS1 SRAM FORCE AXS comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
