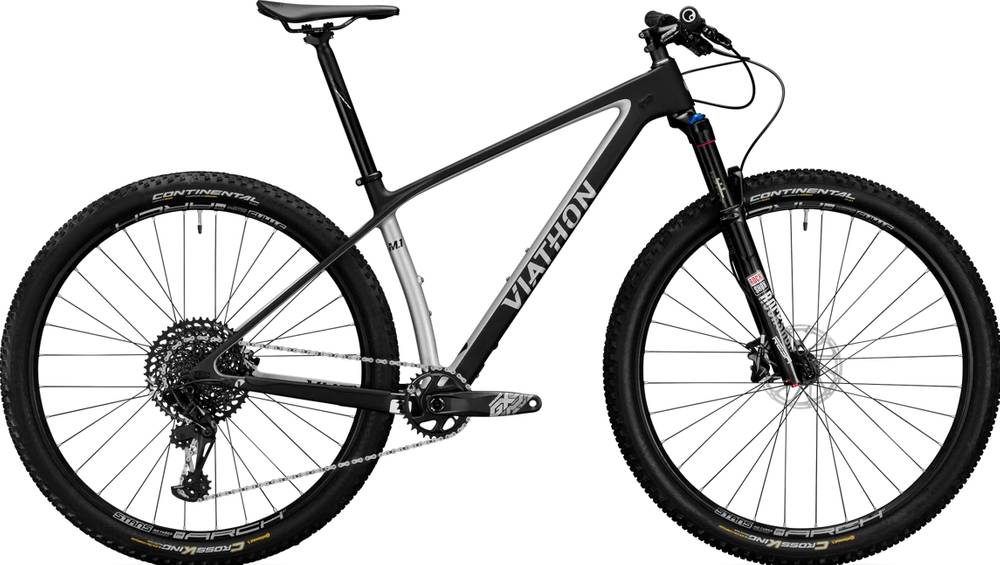

Viathon M.1 GX Eagle Outlet 2020
2020 Mountain
Estimate price |
2,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 177cm
LG
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
VIATHON M.1 MOUNTAIN 29" CARBON FRAME
Suspension Fork
ROCKSHOX REBA RL 29" 120MM
Drivetrain
Rear Derailleur
SRAM GX EAGLE
Shift Levers
SRAM GX EAGLE TRIGGER SHIFTER
Cassette
SRAM XG-1275 EAGLE 10-50T
Crank
SRAM GX EAGLE DUB 32T
Bottom Bracket
SRAM DUB BSA 73MM
Chain
SRAM GX EAGLE 12-SPEED
Wheels
Rims
STAN'S NO TUBES ARCH S1 TEAM 29 6-BOLT DISC
Tires
CONTINENTAL X-KING 29 X 2.3 FRONT / 2.2 REAR FOLDING BLACK CHILI
Brakes
Brakes
SRAM LEVEL TL
Disk Rotors
SRAM CENTERLINE 6-BOLT 160MM
Cockpit
Stem
FSA AFTERBURNER 70 MM
Handlebar
FSA AFTERBURNER 740MM
Grips
ERGON GA20
Headset
FSA
Seat
Saddle
FIZIK TUNDRA M5 126MM S-Alloy
Seatpost
FSA AFTERBURNER 400MM 0 OFFSET
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm |
| Front Center | 659 mm | 685 mm | 711 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86.1 mm | 86.1 mm | 86.1 mm |
| Stack | 627 mm | 627 mm | 636 mm |
| Reach | 397 mm | 423 mm | 445.5 mm |
| Top Tube Length | 580 mm | 606 mm | 631 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 406 mm | 432 mm | 476 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1099 mm | 1125 mm | 1151 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 175 cm |
| Rider Max Height | 170 cm | 177 cm | 185 cm |
About this model
M.1 GX Eagle Outlet is a Viathon M1 model. Viathon released 10 bikes variations of this model so far. Take a sneak peek at all Viathon M1 bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Viathon M.1 GX Eagle 2020 has a starting price of 2198$. Viathon M.1 XX1 Eagle AXS 2020 on the other hand is the most expensive at 6498$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 2400$. In conclusion, this bike price is 15.08% lower than the price of the average Trail bike.
M.1 GX Eagle Outlet components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The M.1 GX Eagle Outlet 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The M.1 GX Eagle Outlet comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 185 cm (5.18 ft – 6.07 ft). In short, you can easily find one that suits you.
