Vitus E-Escarpe 290 VRS 2023
2023 E-bike
Estimate price |
6,422$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select
-
Groupset SLX, e*thirteen -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano BT-EN806-A, 630Wh, Downtube Integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Escarpe 6061-T6 Double Butted Alloy, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible. Axle Specifications: 180mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch
Suspension Fork
RockShox Lyrik Select RC 29", 150mm travel, DebonAir, Charger RC Damper, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
Rear Shock
RockShox Super Deluxe Select+ RT, DebonAir, 205mm x 60mm, trunnion
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12 Speed, Shadow Plus, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
Shimano SLX M7100, 12 Speed, Rapidfire Plus
Cassette
Geardrive GM12, 12 Speed, 11-52T Range
Crank
E*Thirteen E*Spec Plus, 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line
Bottom Bracket
N/A, N/A
Chain
KMC X12, 12 Speed, 116 Links
Wheels
Front Hub
Nukeproof Neutron V2, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Nukeproof Neutron V2, 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm
Rims
Nukeproof Neutron V2, 27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Assegai, 29" x 2.5" WT, 3C MaxxGrip compound, EXO+ casing, Rear: Maxxis Assegai, 29" x 2.5" WT, 3C MaxxGrip compound, EXO+ casing
Brakes
Brakes
SRAM DB8, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Neutron AM, 6061 Alloy, 45mm length, 31.8mm Handlebar Clamp Diameter, 0° Rise
Handlebar
Nukeproof Horizon V2 Riser, 7075 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 780mm Wide, 12mm Rise, L & XL: 800mm Wide, 25mm Rise
Grips
Vitus Lock On, N/A
Headset
Nukeproof, ZS56/28.6 upper & ZS66/46 lower to suit 1-1/8" upper tapered to 1.8" lower headtube
Seat
Saddle
Nukeproof Trail Saddle, Black, Steel Rails
Seatpost
Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Motor & Battery
Motor
Shimano BT-EN806-A, 630Wh, Downtube Integrated
Battery
Shimano BT-EN806-A, 630Wh, Downtube Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.33 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 745 mm | 763 mm | 795 mm | 843 mm |
| Rake | 33 mm | 32 mm | 33 mm | 33 mm |
| Trail | 138 mm | 139 mm | 138 mm | 138 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm |
| Reach | 434 mm | 448 mm | 475 mm | 519 mm |
| Top Tube Length | 575 mm | 592 mm | 616 mm | 657 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1190 mm | 1208 mm | 1240 mm | 1288 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 837 mm | 839 mm | 846 mm | 860 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
Model Overview
E-Escarpe 290 VRS belongs to the Vitus E E Escarpe model. 11 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Vitus E-Escarpe 2023 is the most economical model, with a starting price of 3891$. Vitus E-Escarpe 290 VRX 2023 on the other hand costs 7054$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Vitus E-Escarpe 290 VRS price was 5837$. Comparing the average cost of a Trail e-bike to this one, you will see that E-Escarpe 290 VRS price is 73.46% higher.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, E-Escarpe 290 VRS has a weight of 24.3 kg (53.57 lbs). In short, the average Trail e-bike weight is 2.53% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components

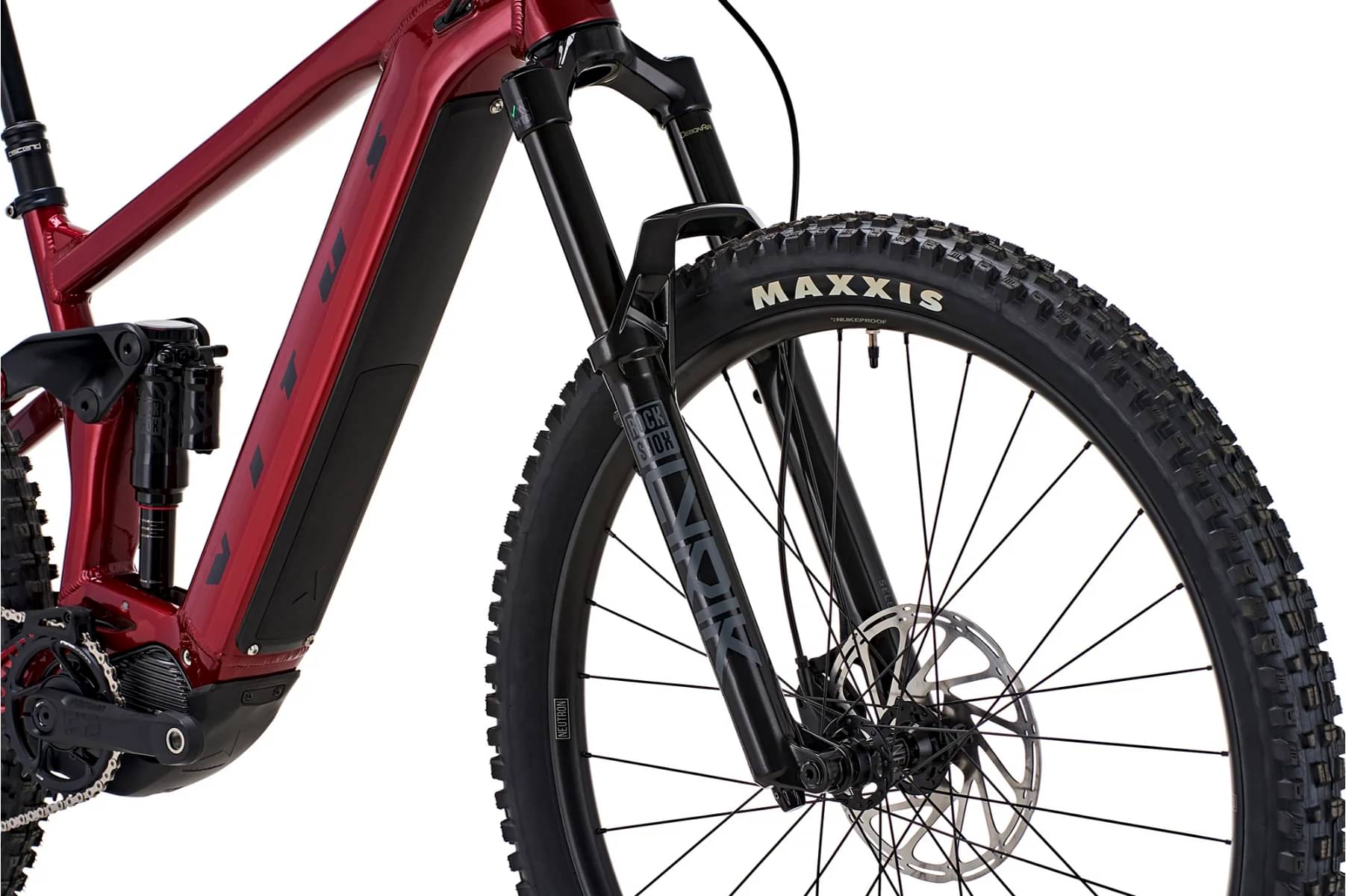

Fork
The fork installed on this bike is the RockShox Lyrik Select model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Vitus E-Escarpe 290 VRS e-bike has the RockShox Super Deluxe Select+ RT model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on E-Escarpe 290 VRS are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus E-Escarpe 290 VRS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 200 cm (5.15 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the E-Escarpe 290 VRS. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
