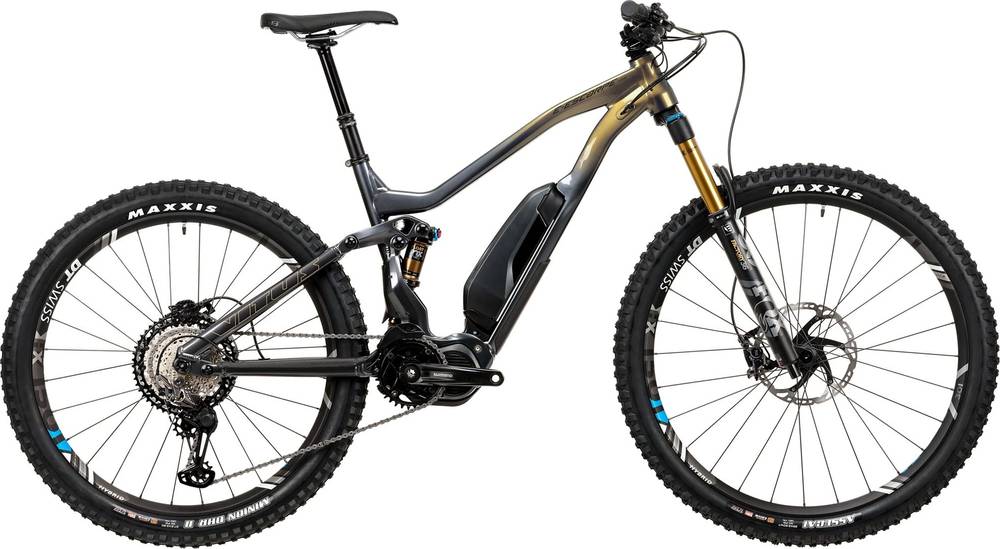

Vitus E-Escarpe VRX 2020
2020 E-bike
Estimate price |
6,690$
Weight | 22.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eEscarpe 29"/27.5" 140mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Suspension Fork
Fox Float 36 Factory 29" FIT GRIP 2 eBIKE+140mm, Fit Grip 2, Light Compression Tune, HSC/LSC/HSR/LSR adjusters, Kabolt 110, 44mm Offset
Rear Shock
Fox Float DPS Factory, 3 Position Dial, Trunnion, Evol LV air spring, 205mm x 57.5mm, 0.8 Spacer, custom tune
Drivetrain
Rear Derailleur
Shimano XTR 12 speed, RD-M9100, SHADOW PLUS
Front Derailleur
0, N/A
Shift Levers
Shimano XT 12 speed SL-M8100-R, I-Spec EV
Cassette
Shimano XT 12 speed 10-51T, CS-M8100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Crank
SHIMANO E8000 34T 165mm, CHAIN LINE 53MM
Bottom Bracket
Shimano E8000, N/A
Chain
Shimano XT 12 speed N/A
Wheels
Front Hub
HX 1501 SPLINE BLACK eMTB specific, Boost 110x15mm, 6-bolt Disc
Rear Hub
HX 1501 SPLINE BLACK, eMTB specific. Boost 148x12mm, 6-bolt Disc, Shimano 12spd MICROSPLINE steel freehub
Rims
HX 1501 SPLINE BLACK 35, eMTB specific, 27.5", 35mm inner rim width
Spokes
DT SWISS, N/A
Tires
MAXXIS ASSEGAI, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Brakes
Brakes
Shimano XT M8120 4 piston METAL PAD(W/FIN), SM-RT76 203mm rotor
Cockpit
Stem
Nukeproof Horizon 50mm * 31.8mm
Handlebar
Nukeproof Horizon "AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm"
Grips
VITUS Tapered, single alloy clamp, sticky rubber
Headset
ACROS ZS 44mm/56mm
Seat
Saddle
WTB Volt 142 RACE 0
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Motor & Battery
Motor
Shimano E8010 500wh N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Front Center | 757 mm | 777 mm | 798 mm | 824 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 124 mm | 123 mm |
| Stack | 609 mm | 609 mm | 619 mm | 627.5 mm |
| Reach | 429 mm | 449 mm | 466 mm | 487 mm |
| Top Tube Length | 592.5 mm | 612.5 mm | 632.5 mm | 652.5 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 382 mm | 433 mm | 483 mm | 523 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1199 mm | 1219 mm | 1240 mm | 1266 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
About this model
E-Escarpe VRX completes the Vitus E E Escarpe model. There are 11 e-bikes that carry this model name. Take a sneak peek at all Vitus E E Escarpe e-bikes models from 2020, by clicking here.
Model range prices
Vitus E-Escarpe 2020 is the most affordable e-bike of this model and has a price of 3891$. On the other hand, Vitus E-Escarpe VRX 2020, is the most expensive and costs 6081$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Vitus E-Escarpe VRX price was 6081$. Comparing the average cost of a Trail e-bike to this one, you will see that E-Escarpe VRX price is 80.71% higher.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 22.1 kg (48.72 lbs), the E-Escarpe VRX model is a bit lighter than average. In short, the average Trail e-bike weight is 7.24% higher than this one.
Overview of components
Fork
Vitus E-Escarpe VRX 2020 e-bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Vitus E-Escarpe VRX e-bike has the Fox Float DPS Factory model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The E-Escarpe VRX 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus E-Escarpe VRX has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 200 cm (5.15 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the E-Escarpe VRX. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
