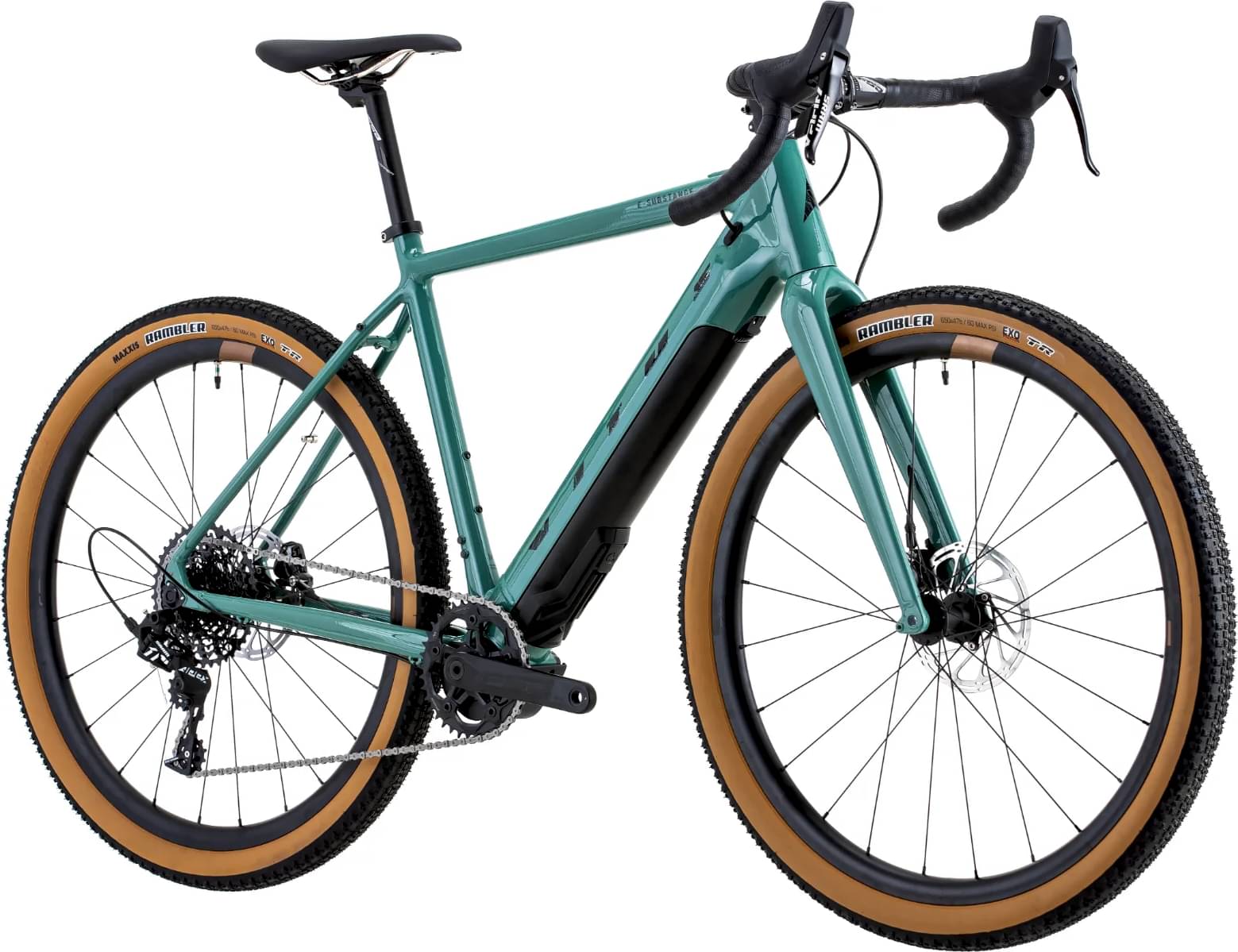

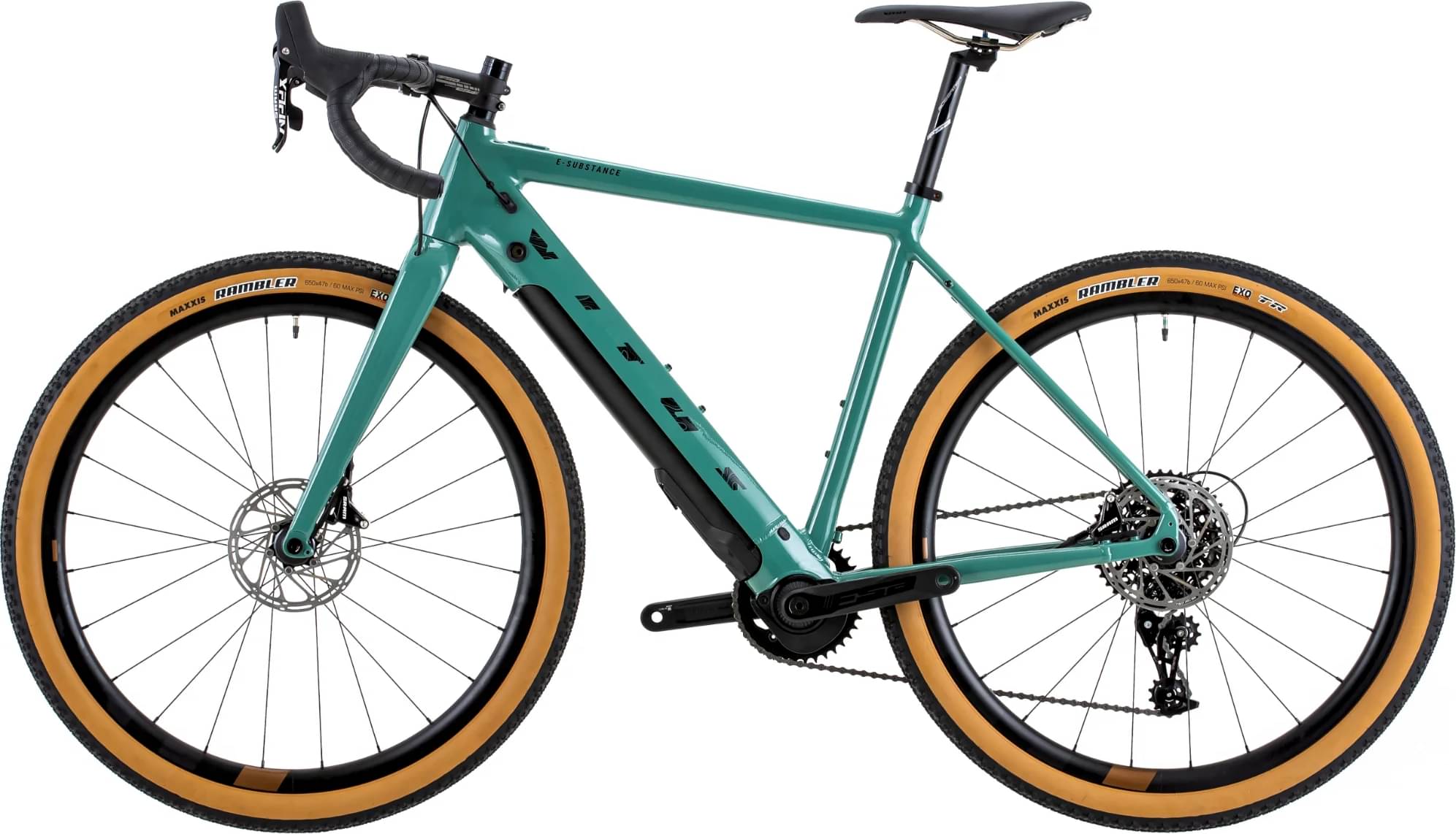

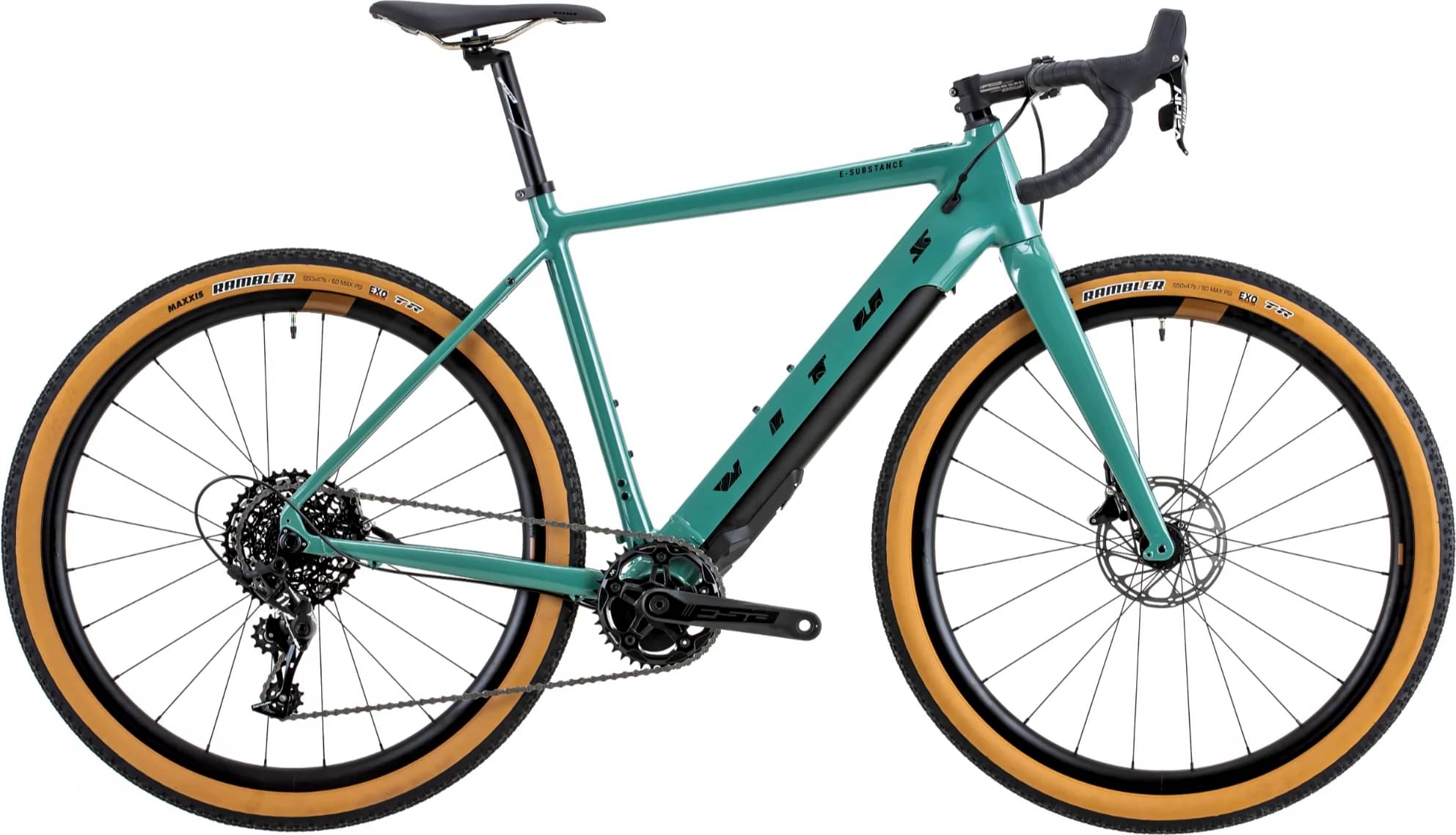

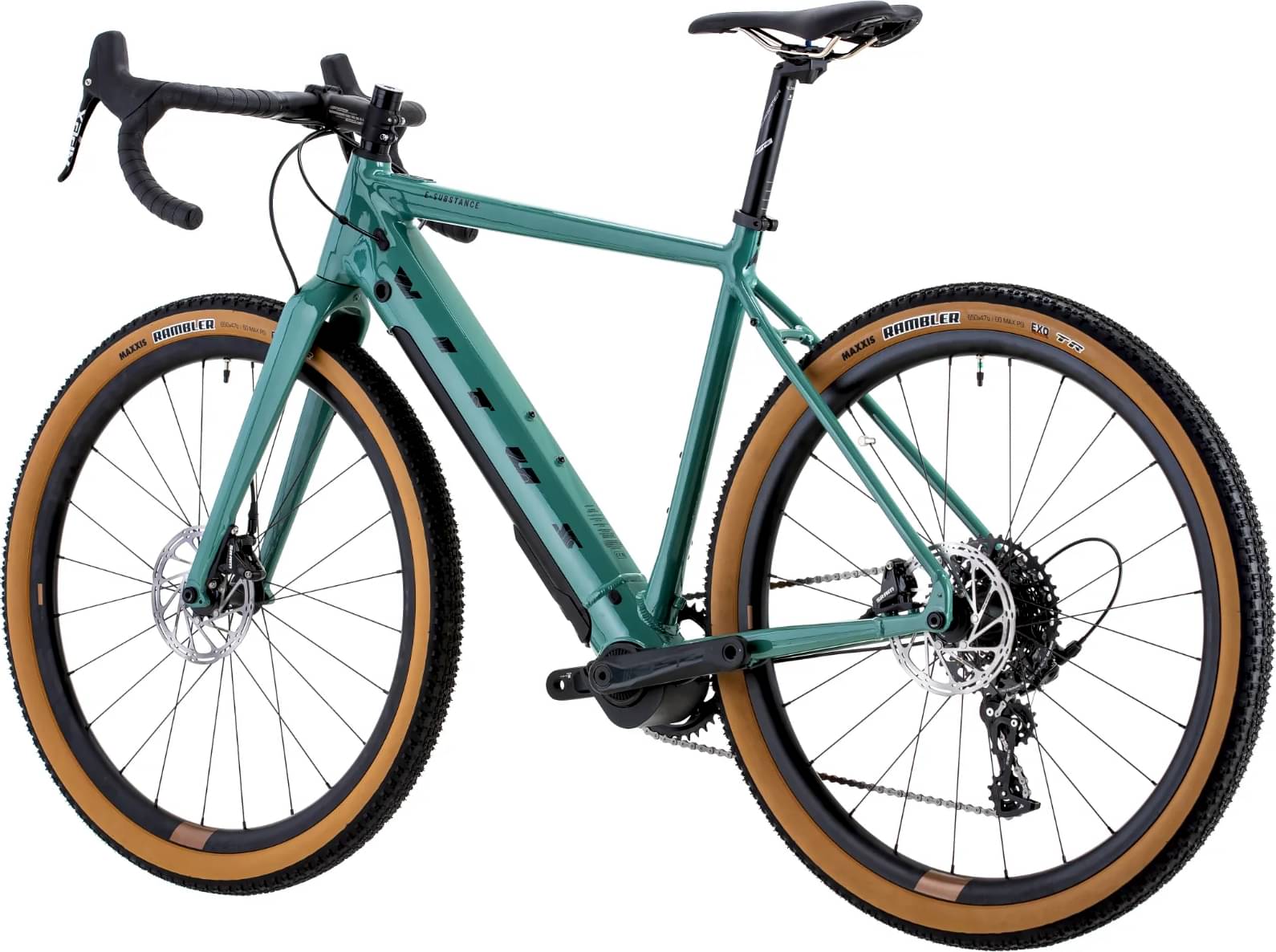

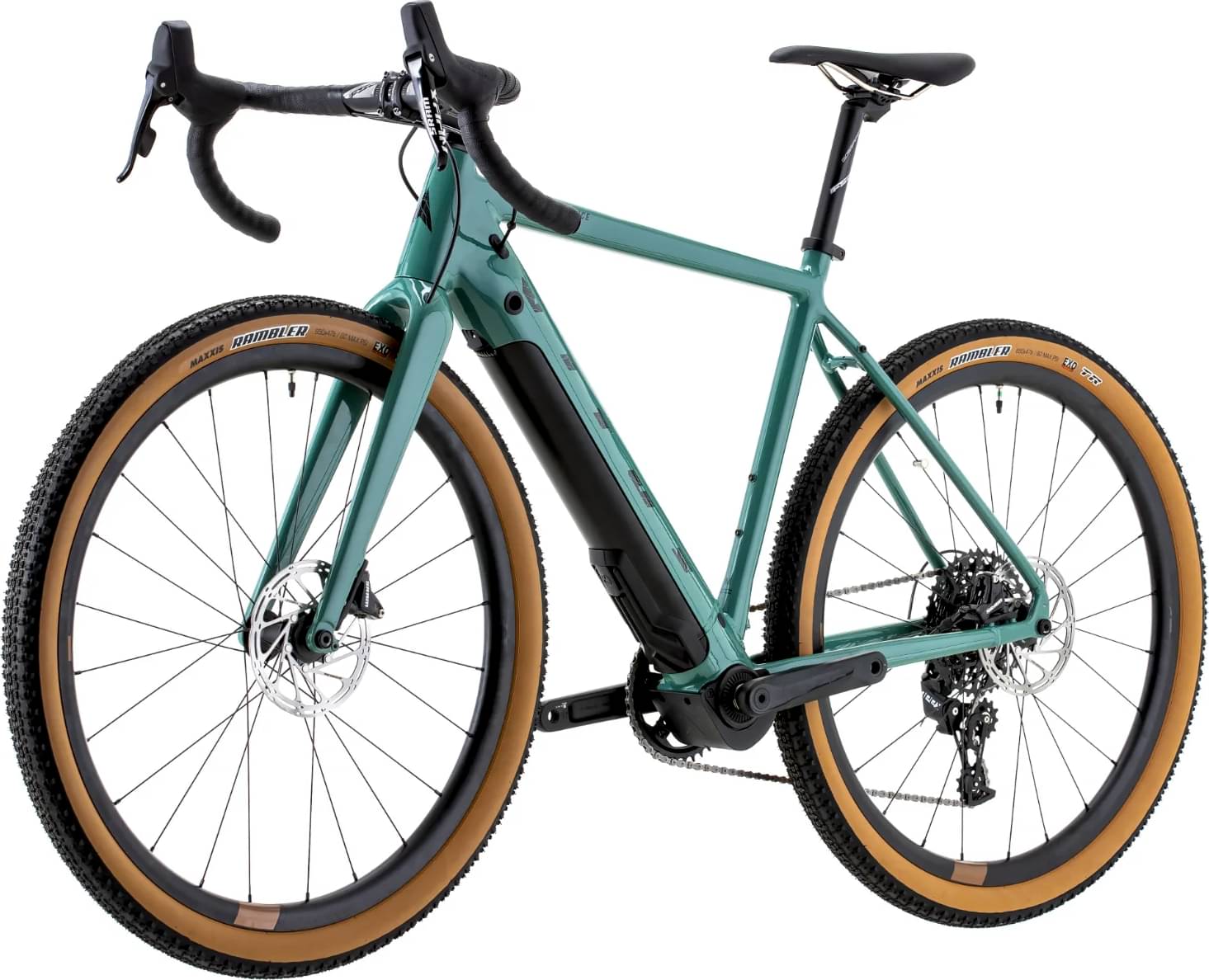

Vitus E-Substance Aluminium Apex (Fazua) 2023
2023 E-bike
Estimate price |
5,012$
Weight | 15.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex, FSA -
Suspension Rigid -

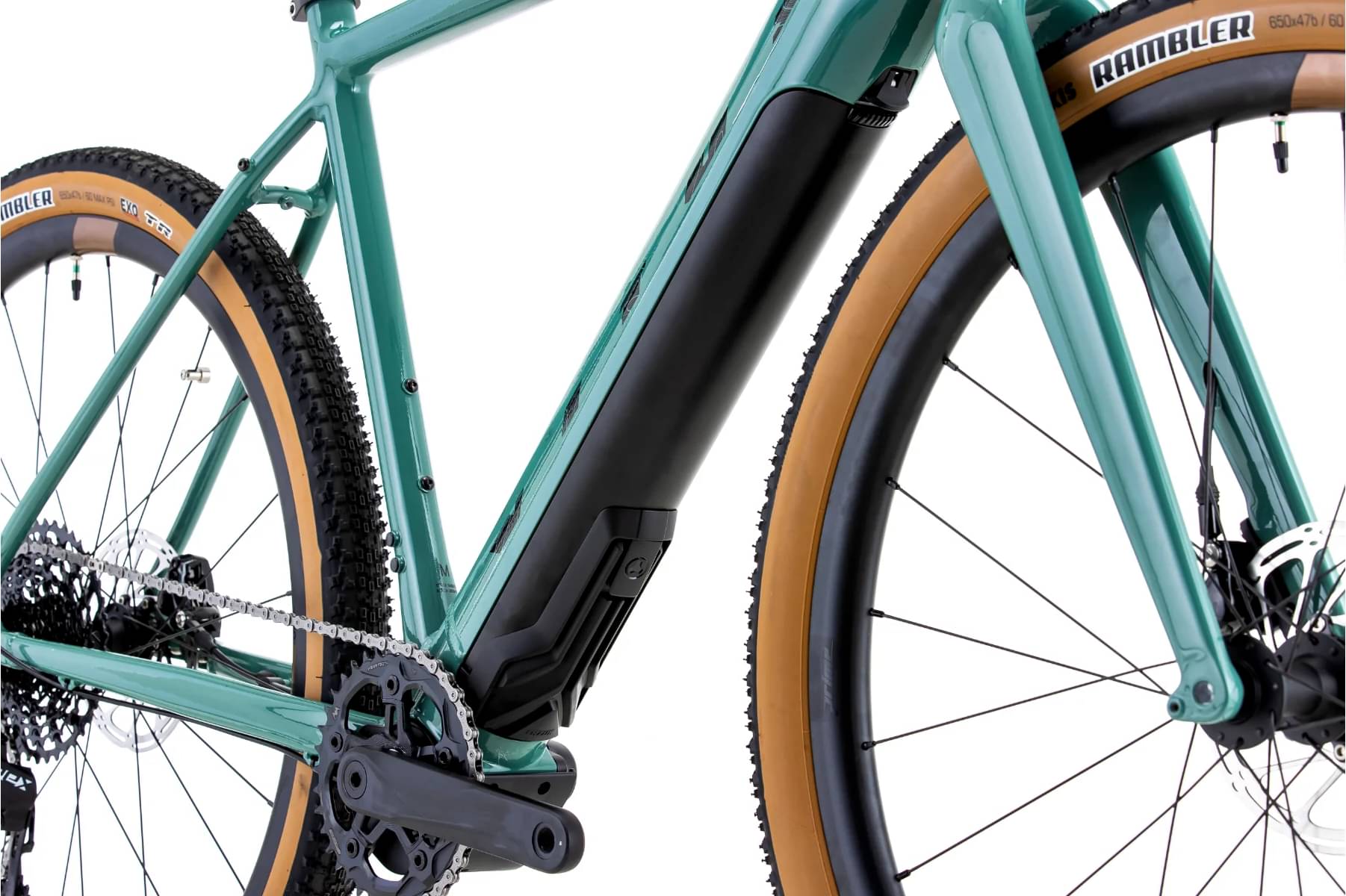

Motor Fazua mid-drive -
Battery Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Aluminium - Fazua, 6061-T6 Aluminium, Fazua Evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

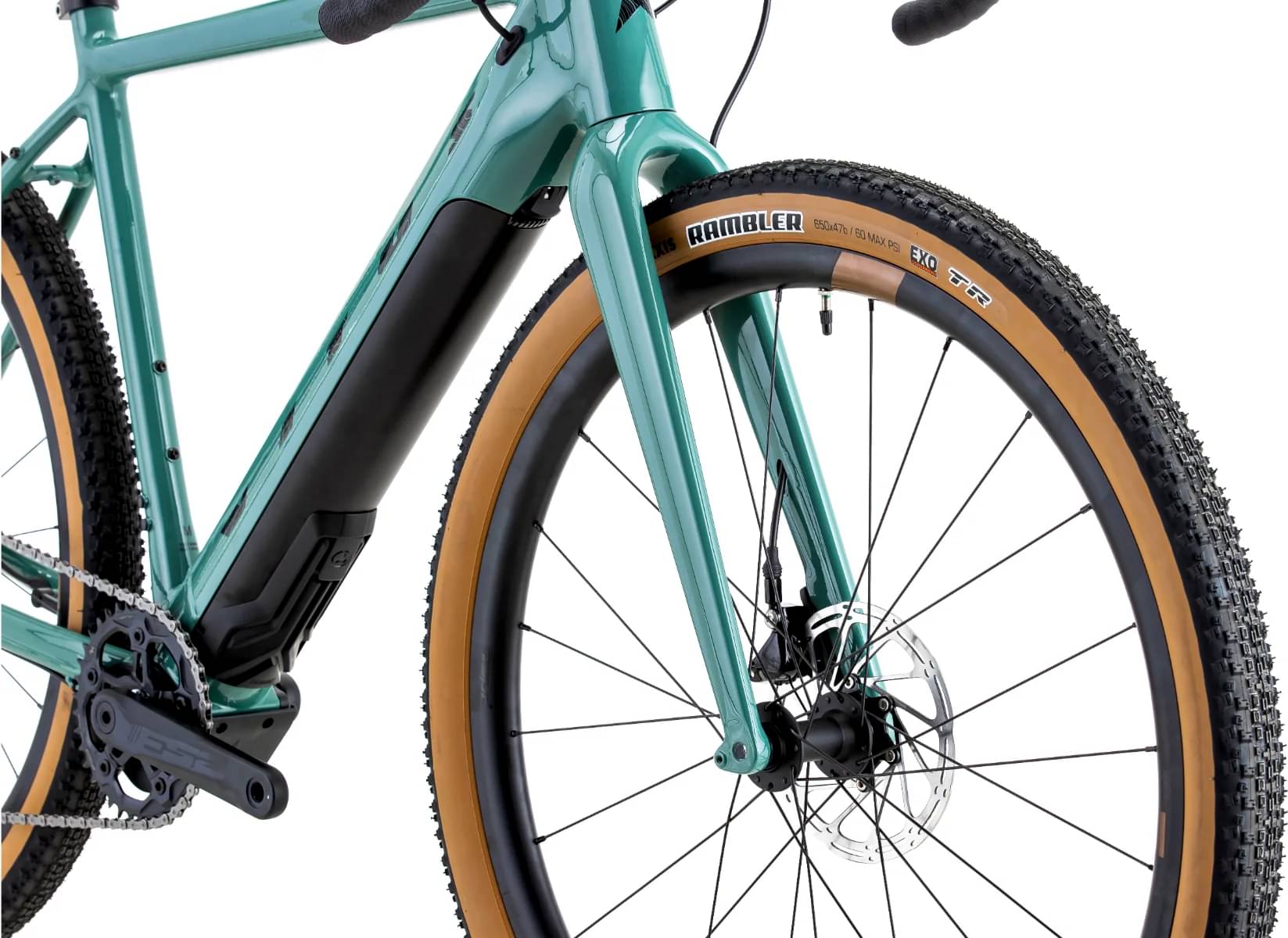

Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Rear Shock
N/A, N/A

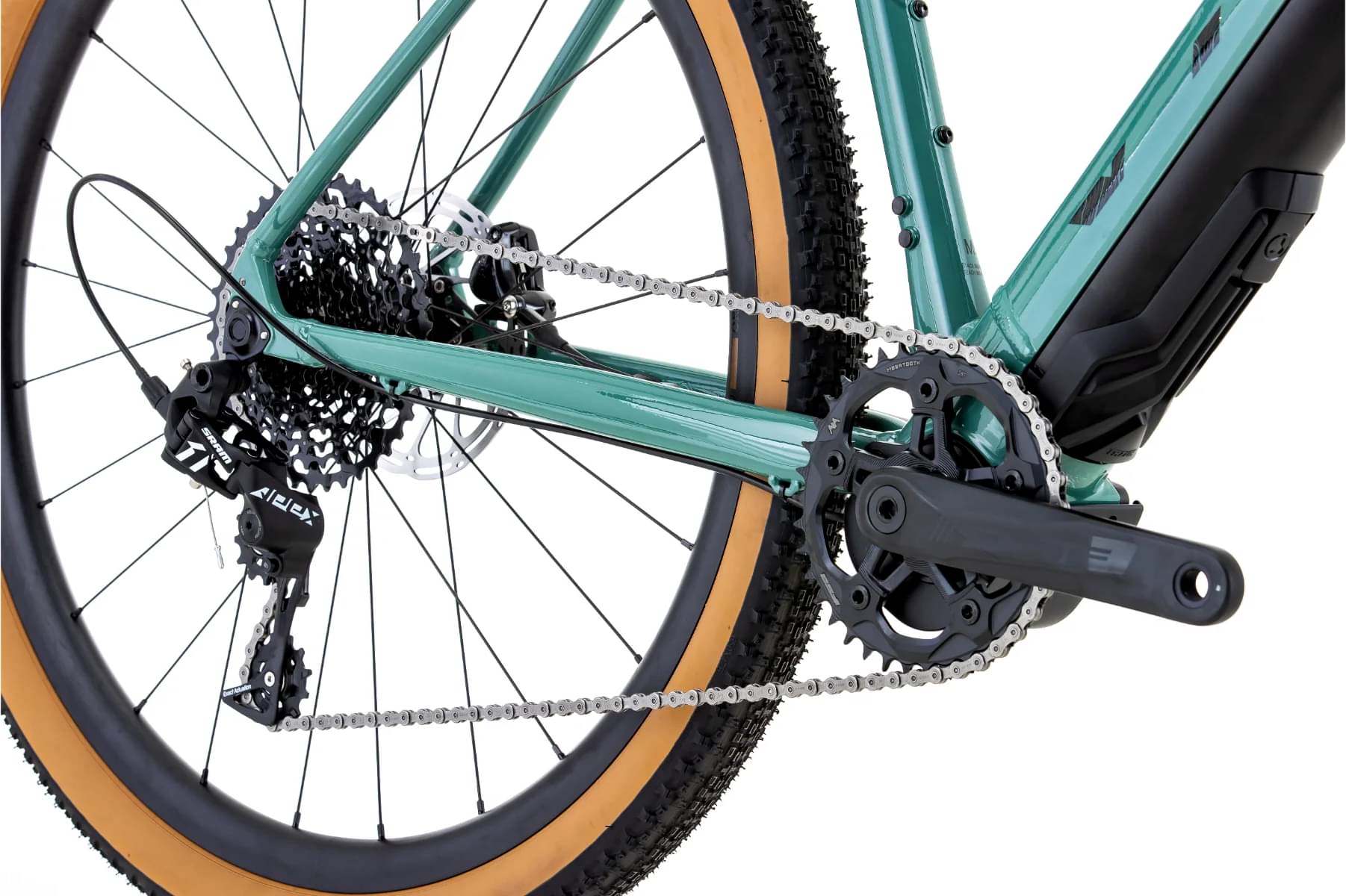

Drivetrain
Rear Derailleur
SRAM Apex, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Apex, 11 Speed
Cassette
SRAM XG-1150, 11 Speed, 10-42T
Crank
FSA CK 746, 38T, 11 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
N/A, N/A
Chain
SRAM PC1110, 11 Speed with PowerLock
Wheels
Front Hub
Prime SR2D, 100 x 12mm, Centre Lock
Rear Hub
Prime SR2D, 142 x 12mm, Centre Lock, XD-R Freehub, 36T Ratchet System
Rims
Prime Orra V2 Alloy, 650b, Tubeless Ready
Tires
Front: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall, Rear: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brakes
SRAM Apex, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
FSA Gossamer, Aluminium, 27.2mm x 350mm
Motor & Battery
Motor
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Battery
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.48 mm | 1.5 mm |
| Front Center | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 59 mm | 58 mm | 58 mm | 62 mm |
| Stack | 543.6 mm | 560.5 mm | 570 mm | 588 mm |
| Reach | 370.1 mm | 374.9 mm | 384.1 mm | 391.4 mm |
| Top Tube Length | 528 mm | 543 mm | 555 mm | 571 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 127 mm | 144 mm | 154 mm | 173 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 433 mm |
| Wheelbase | 1015 mm | 1024 mm | 1036 mm | 1050 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 768 mm | 787 mm | 800 mm | 818 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Substance Aluminium Apex (Fazua) completes the Vitus E E Substance model. Vitus launched 11 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Vitus E-Substance Aluminium Apex (Fazua) 2023 is the cheapest e-bike model and costs 4499$. Vitus E-Substance Carbon Rival (Fazua) 2023 is the most expensive one and costs 5229$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Vitus E-Substance Aluminium Apex (Fazua) price was 4499$. Doing a quick comparison, we notice that E-Substance Aluminium Apex (Fazua) price is 23.53% more expensive than the average cost of a Gravel e-bike.
Average weight for Gravel e-bikes
If we make a quick analysis of the average weight of a Gravel e-bike, we get 14.21 kg (31.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 15.3 kg (33.73 lbs), the E-Substance Aluminium Apex (Fazua) model is a bit heavier than average. In short, the average Gravel e-bike weight is 7.67% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the E-Substance Aluminium Apex (Fazua) model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus E-Substance Aluminium Apex (Fazua) is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Vitus E-Substance Aluminium Apex (Fazua) e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
