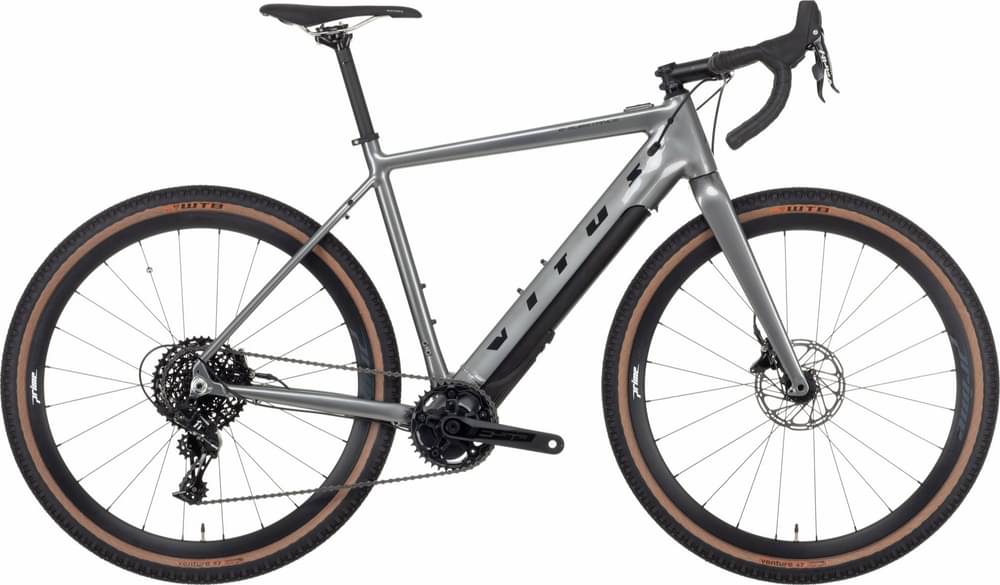

Vitus E-Substance Aluminium E Adventure 2021
2021 E-bike
Estimate price |
4,013$
Weight | 15.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Apex 1, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua evation FAZUA Evation engine battery 252Wh - 36v / 7ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Aluminium - Fazua, 6061-T6 Aluminium, Fazua evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm axle
Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
SRAM Apex 1, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Apex 1 Hydraulic Disc ST-4720-R
Cassette
SRAM XG-1150, 10-42T
Crank
FSA CK 746, 38T, 11 Speed, XS:170mm S:172.5mm M:172.5mm L:175mm
Bottom Bracket
N/A, N/A
Chain
SRAM PC-1110 11 Speed with PowerLock
Wheels
Front Hub
Prime Kanza 650b 100 x 12mm Front, Centre Lock
Rear Hub
Prime Kanza 650b, 142 x 12mm Rear, Centre Lock, XD Freehub
Rims
Prime Kanza 650b, 650b, Tubeless Ready, 24 Hole
Spokes
Prime, N/A
Tires
WTB Venture TCS, 650b x 47
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc ST-4720-R/L & BR-4770-F/R, Flat Mount
Disk Rotors
SRAM Centreline Front:160mm, Rear:160mm
Cockpit
Stem
Vitus 6061 Aluminium Bar Bore 31.8mm, +/- 7 degrees, XS:80mm S:90mm M:100mm L:110mm
Handlebar
Vitus Adventure 6061 Aluminium 16 Degree Flare, XS:380mm S:400mm M:420mm L:440mm
Grips
Vitus SuperGrip Anti Slip, Shock Proof
Headset
ACROS Aix-Low R3 Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
VITUS Ti Rail
Seatpost
VITUS Aluminium 27.2mm, 15mm Offset, 350mm
Motor & Battery
Motor
Fazua evation FAZUA Evation engine battery 252Wh - 36v / 7ah
Battery
Fazua evation FAZUA Evation engine battery 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.48 mm | 1.5 mm |
| Front Center | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 59 mm | 58 mm | 58 mm | 62 mm |
| Stack | 543.6 mm | 560.5 mm | 570 mm | 588 mm |
| Reach | 370.1 mm | 374.9 mm | 384.1 mm | 391.4 mm |
| Top Tube Length | 528 mm | 543 mm | 555 mm | 571 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 127 mm | 144 mm | 154 mm | 173 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 433 mm |
| Wheelbase | 1015 mm | 1024 mm | 1036 mm | 1050 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 768 mm | 787 mm | 800 mm | 818 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Substance Aluminium E Adventure belongs to the Vitus E E Substance model. 11 e-bikes variations carry this model name so far. You can easily view all of the Vitus E E Substance e-bikes models from 2021, here.
Model range prices
The most economical model, the Vitus E-Substance Aluminium E Adventure 2021 has a starting price of 3648$. Vitus E-Substance Carbon E Adventure 2021 on the other hand is the most expensive at 4864$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Vitus E-Substance Aluminium E Adventure price was 3648$. Comparing this to the average Gravel e-bike price, we see that the price is 0.16% higher.
Gravel e-bikes average weight
If we make a quick analysis of the average weight of a Gravel e-bike, we get 13.58 kg (29.94 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 15.3 kg (33.73 lbs), Vitus e-bike is considerably heavier than average. To sum up, it’s 12.67% heavier than the average weight of Gravel e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
E-Substance Aluminium E Adventure has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the E-Substance Aluminium E Adventure e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Substance Aluminium E Adventure has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Vitus E-Substance Aluminium E Adventure e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
