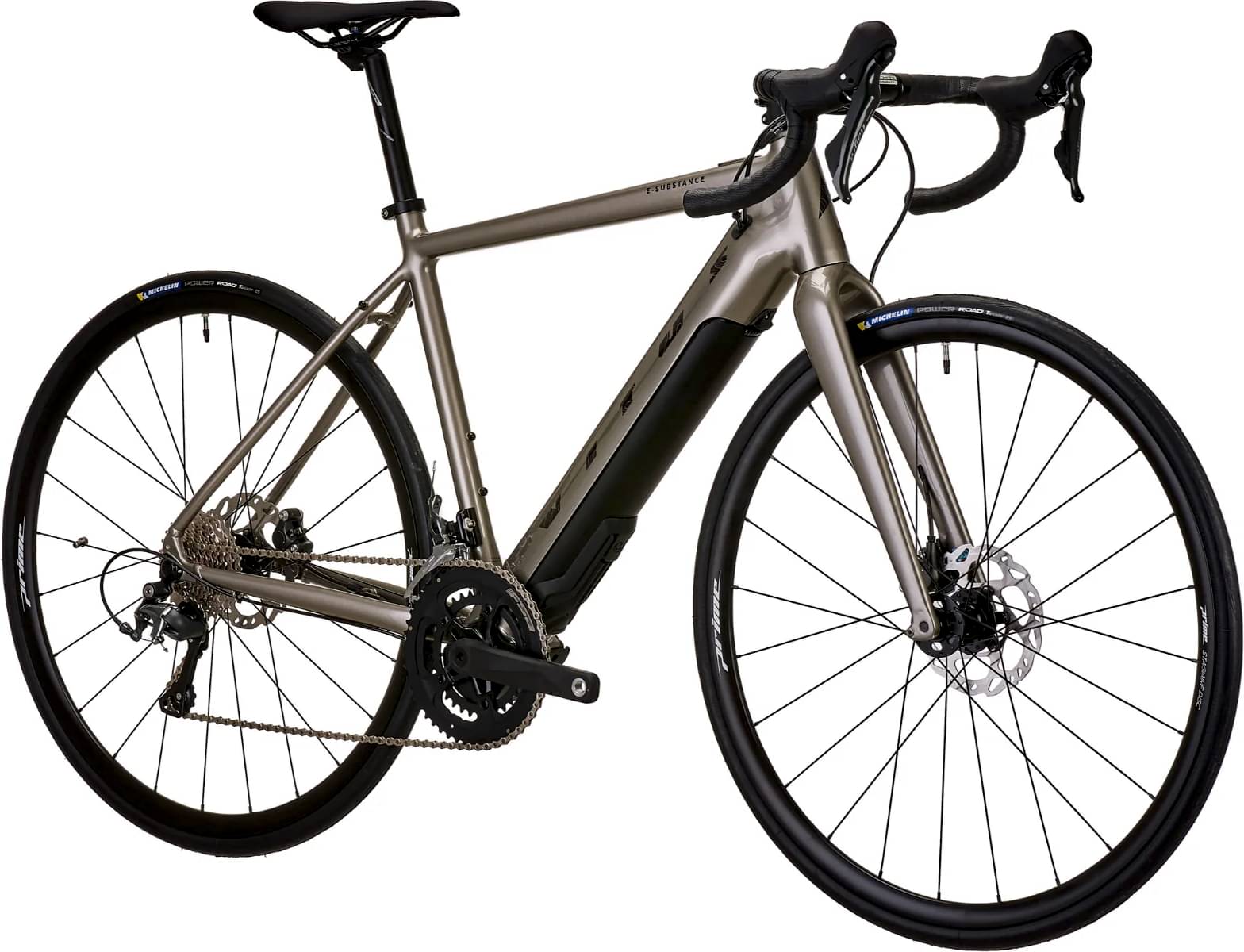

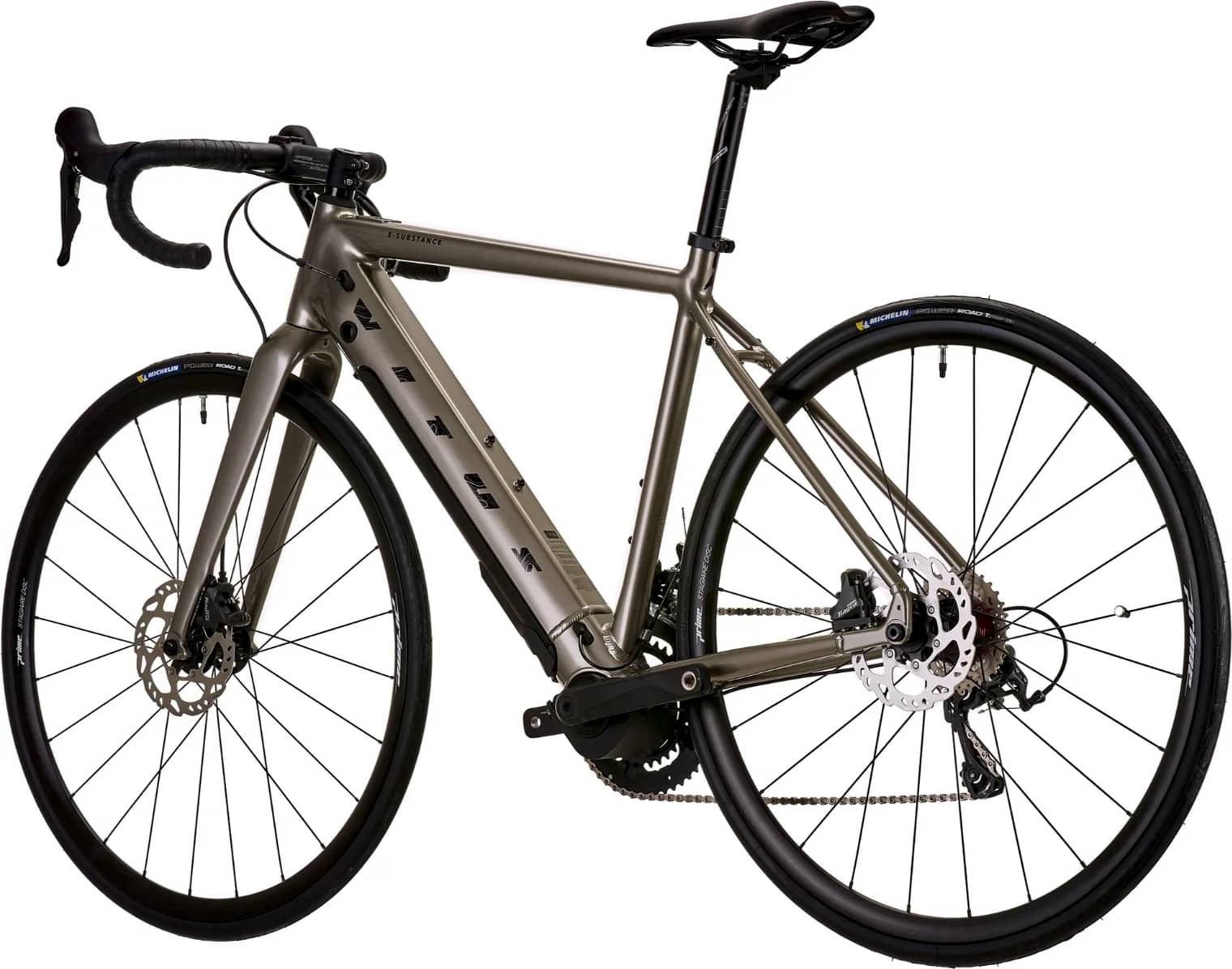

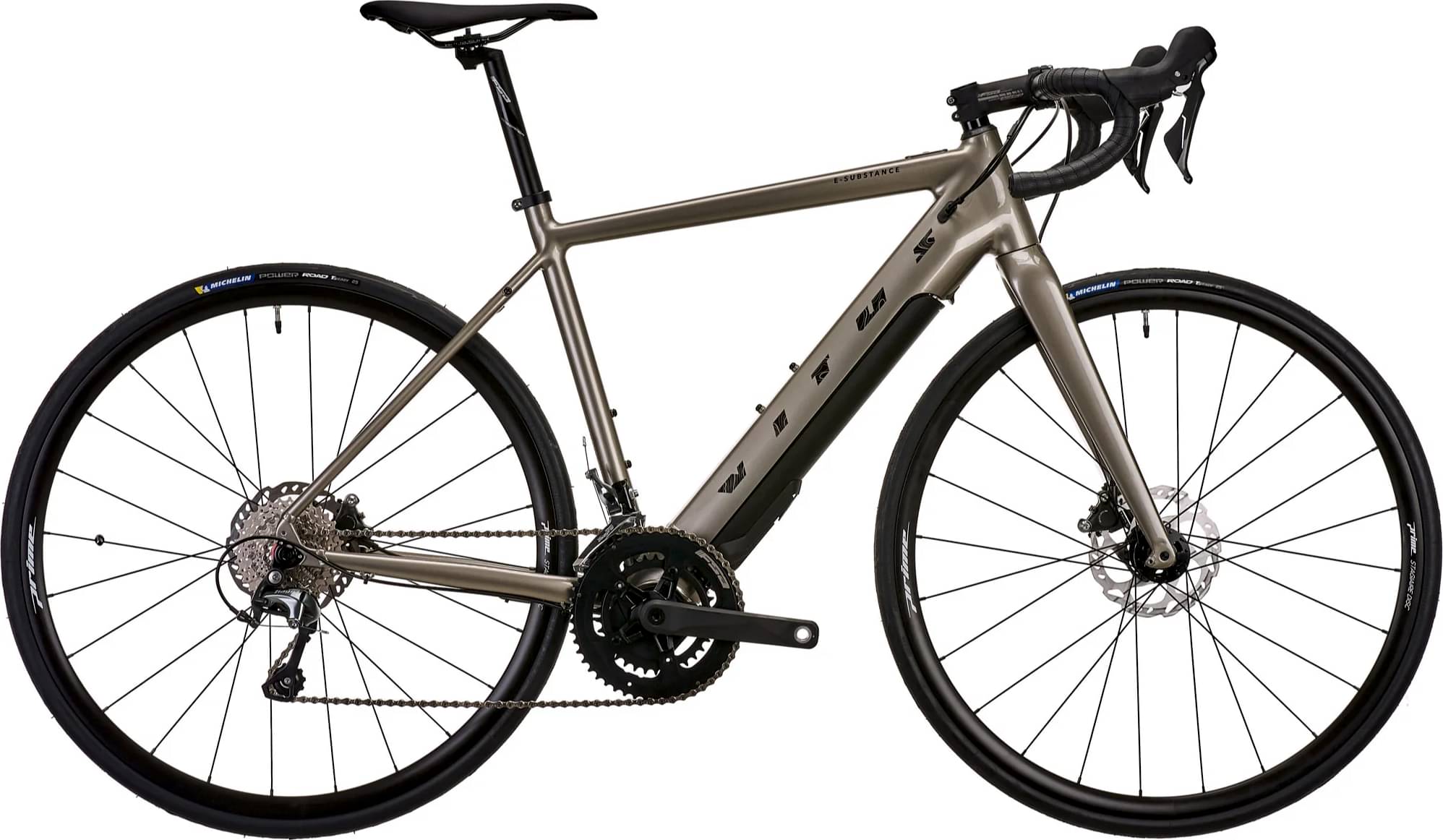

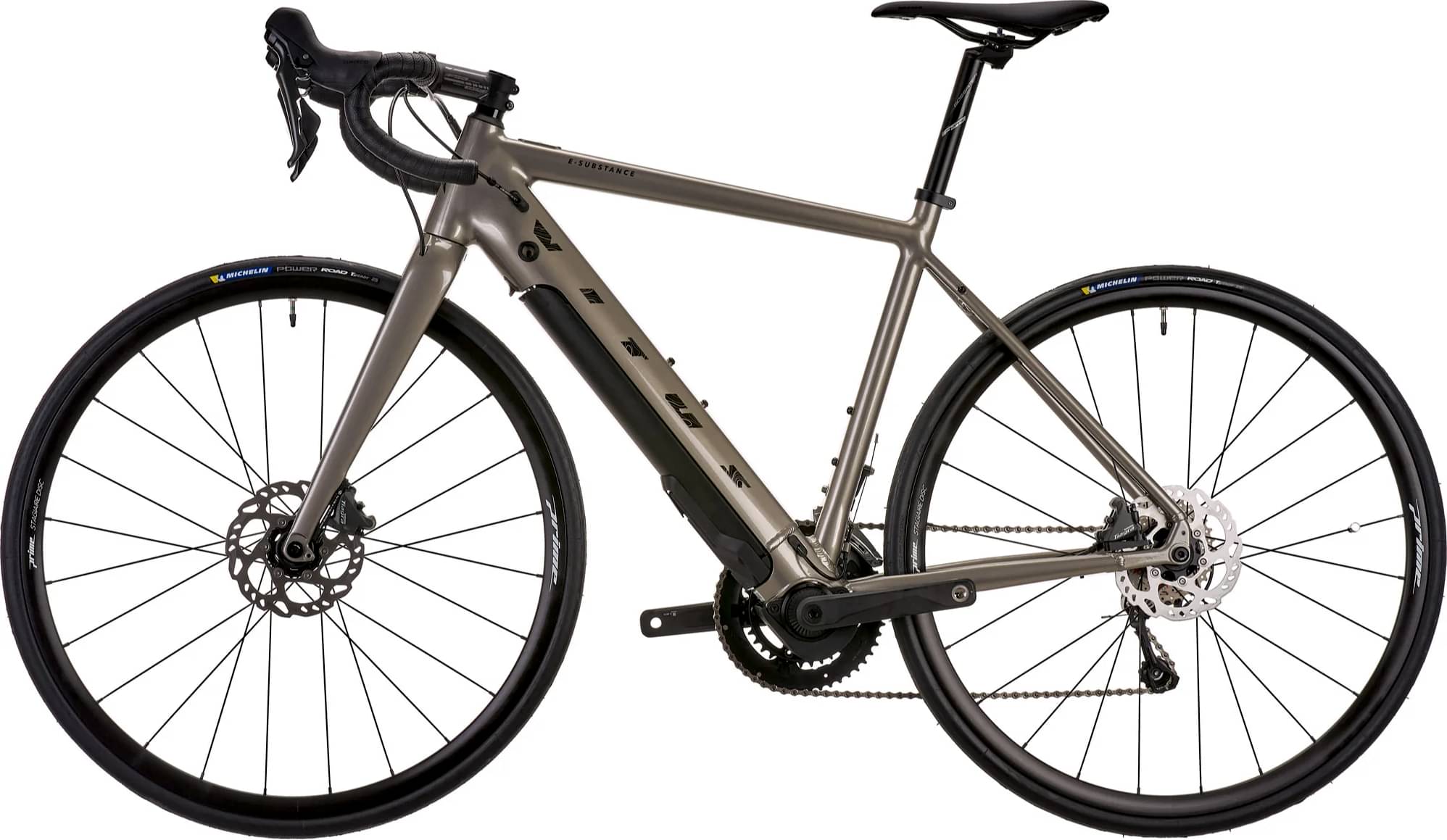

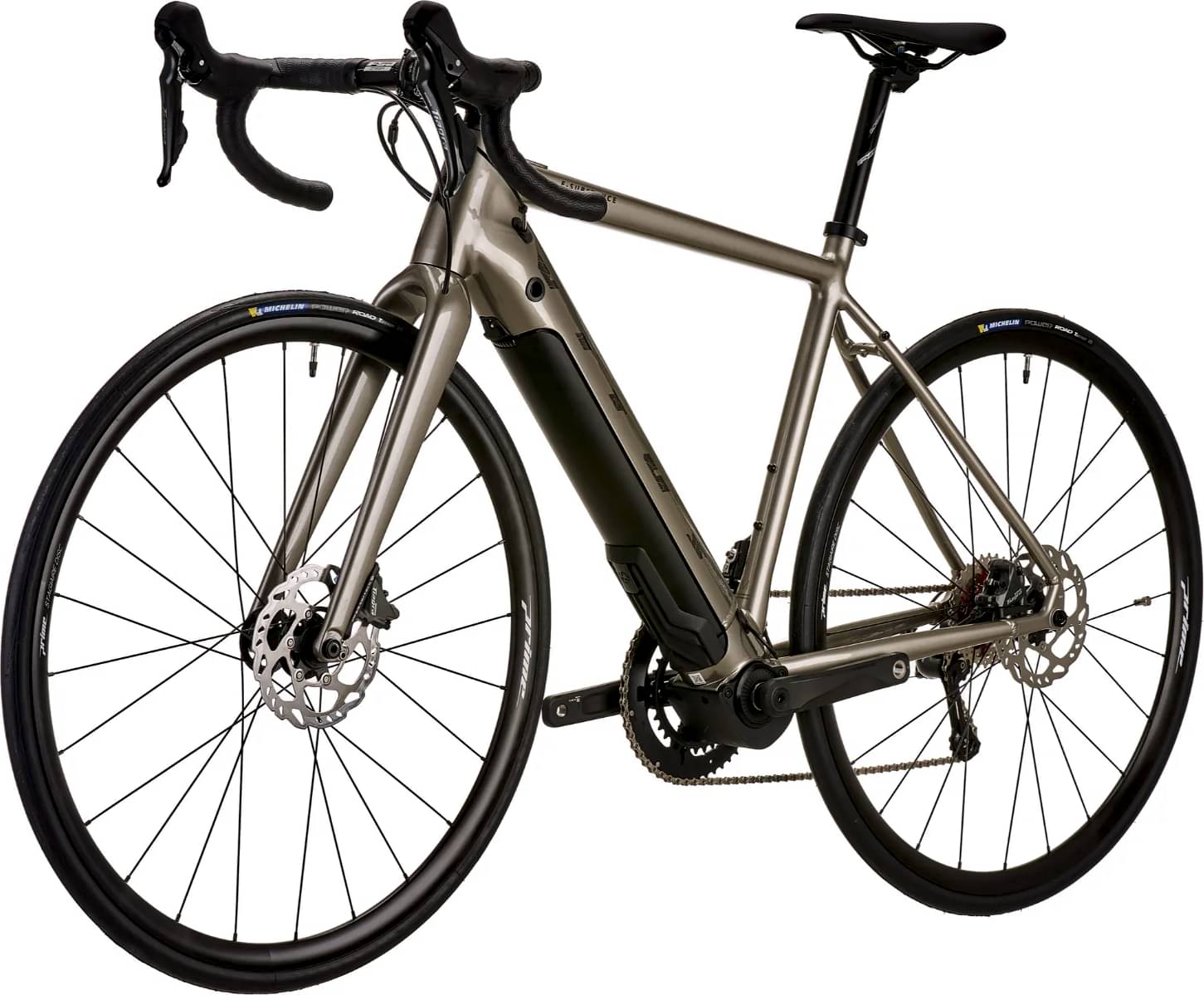

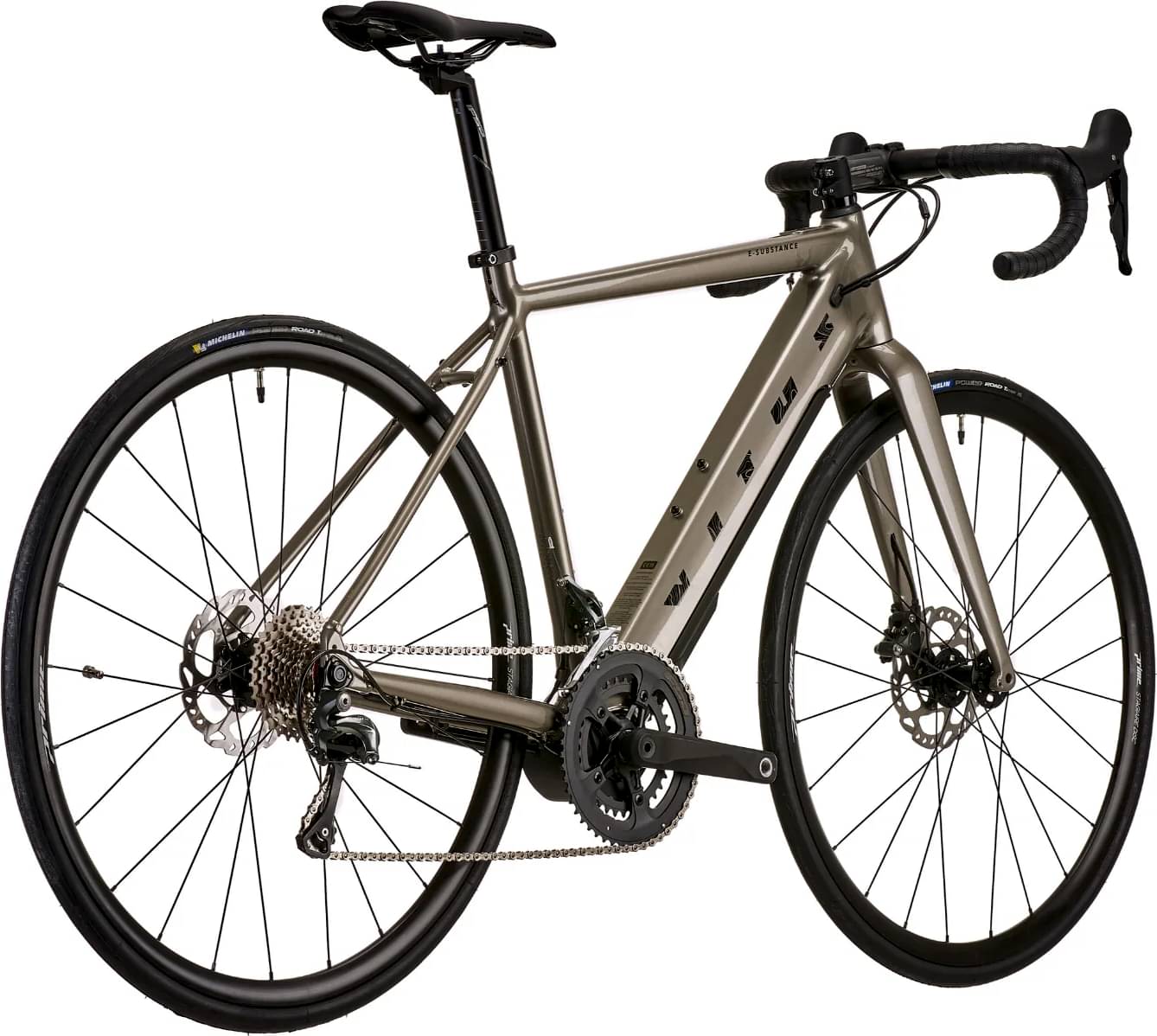

Vitus E-Substance Aluminium E Fazua 2022
2022 E-bike
Estimate price |
4,599$
Weight | 15.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Motor Fazua mid-drive -
Battery Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Aluminium - Fazua, 6061-T6 Aluminium, Fazua evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Shimano Tiagra R4700, RD-R4700, 10 Speed
Front Derailleur
Shimano Tiagra R4700, FD-R4700, Braze-On, 2 x 10 Speed
Shift Levers
Shimano Tiagra R4700, ST-4720-R, 10 Speed
Cassette
Sunrace CS-RX0, 10 Speed, 11-32T
Crank
FSA CK 746, 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
N/A, N/A
Chain
KMC e10T, 10 Speed, E-Bike Specific
Wheels
Front Hub
Prime, 12x100mm, Centre Lock
Rear Hub
Prime, 142x12mm, Centre Lock, HG Freehub
Rims
Prime Stagiaire Disc Alloy, 650b, Tubeless Ready
Tires
Front: Michelin Power Road TLR, 700c x 25c, Tubeless Ready, Rear: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
Brakes
Brakes
Shimano Tiagra R4700 Hydraulic Disc, ST-4720-L & BR-4770-R, Flat Mount

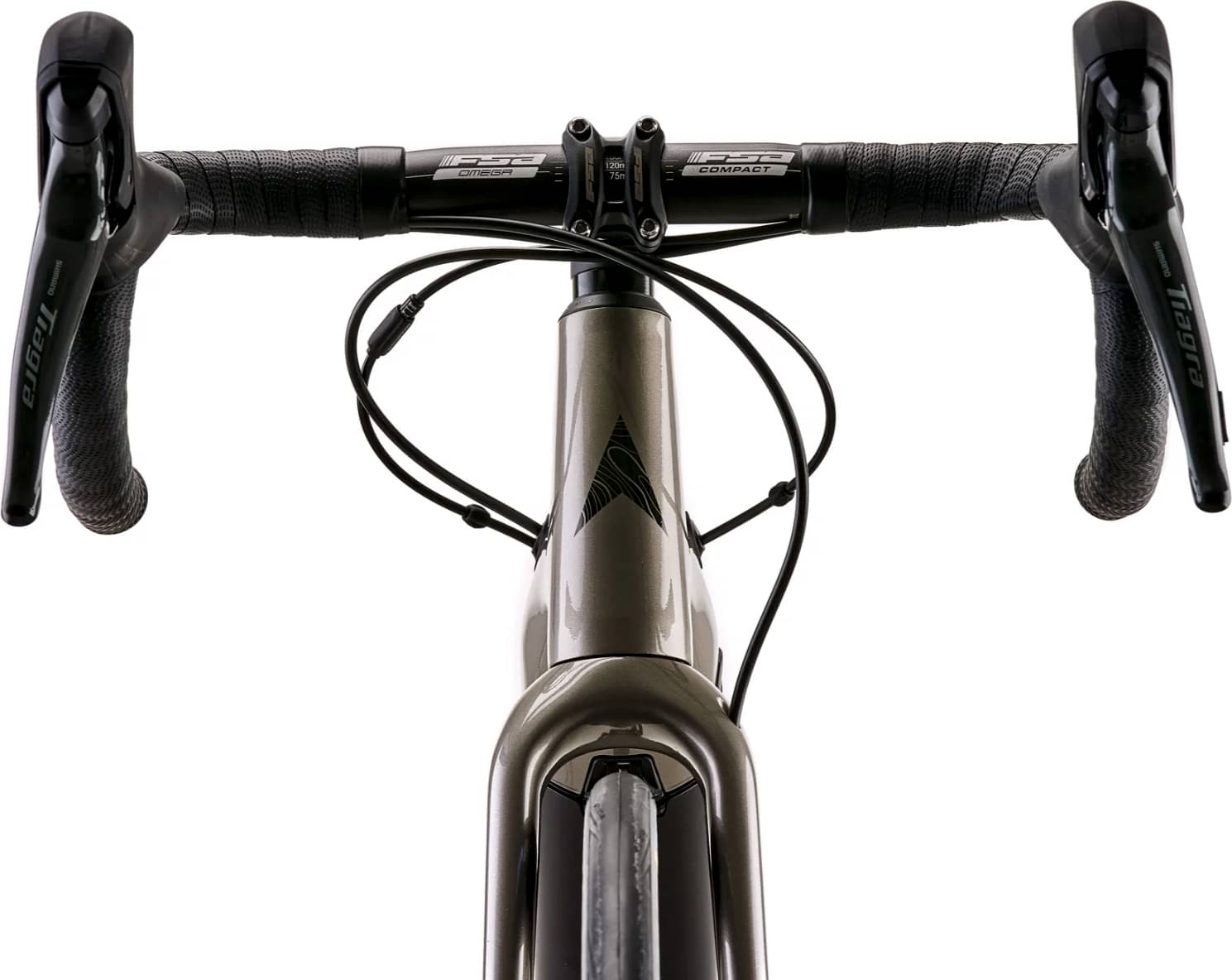

Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
Handlebar
FSA Omega Compact Handlebars, 6061 Aluminium, 74mm Reach, 118mm Drop, 4 Degree Flare, S:400mm M:400mm L:420mm XL:440mm
Grips
Vitus, EVA Cork
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Steel Rail
Seatpost
FSA Gossamer, Aluminium, 27.2mm x 350mm
Motor & Battery
Motor
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Battery
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 65 mm | 64 mm | 64 mm | 68 mm |
| Stack | 543.6 mm | 560.5 mm | 570 mm | 588 mm |
| Reach | 370.1 mm | 374.9 mm | 384.1 mm | 391.4 mm |
| Top Tube Length | 528 mm | 543 mm | 555 mm | 571 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 127 mm | 144 mm | 154 mm | 173 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 433 mm |
| Wheelbase | 1015 mm | 1024 mm | 1036 mm | 1050 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 768 mm | 787 mm | 800 mm | 818 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Substance Aluminium E Fazua is a Vitus E E Substance model. Vitus released 11 e-bikes variations of this model so far. Take a sneak peek at all Vitus E E Substance e-bikes models from 2022, by clicking here.
Model range prices
Vitus E-Substance Aluminium E 2022 is the most economical model, with a starting price of 4013$. Vitus E-Substance Carbon E Fazua 2022 on the other hand costs 5399$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Vitus released this model in 2022, its price was 4599$. In conclusion, this e-bike price is 26.28% more expensive than the price of the average Gravel e-bike.
Gravel e-bikes average weight
The average weight for Gravel e-bikes is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
E-Substance Aluminium E Fazua weighs 15.4 kg (33.95 lbs) and is considerably heavier than the average. In conclusion, the average Gravel e-bike weighs 13.4% less than E-Substance Aluminium E Fazua.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Substance Aluminium E Fazua components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Vitus E-Substance Aluminium E Fazua 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.

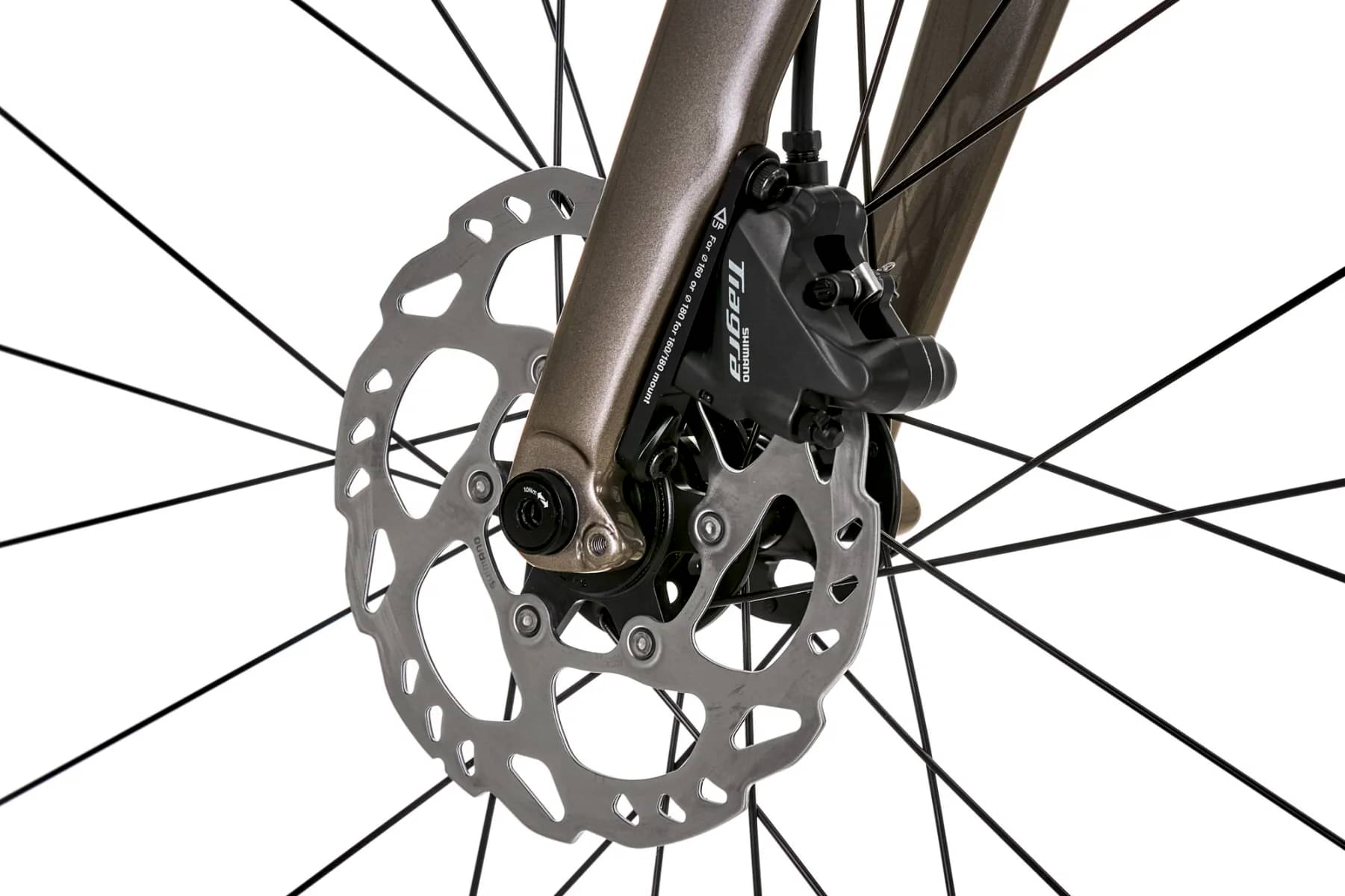

Brakes
When you want to stop the bike in time, the brakes are vital. The E-Substance Aluminium E Fazua has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
E-Substance Aluminium E Fazua comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
