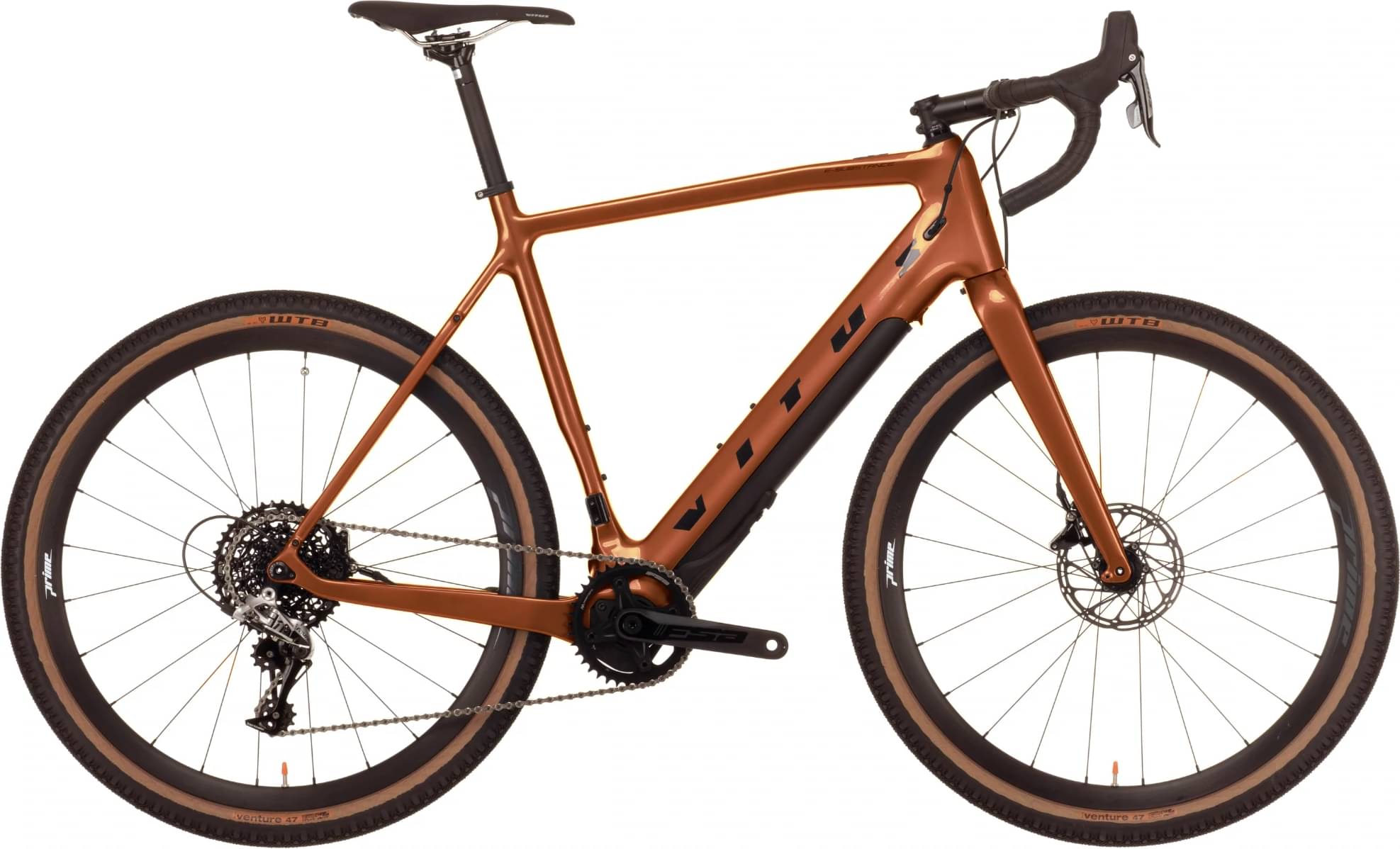

Vitus E-Substance Carbon E Gravel 2022
2022 E-bike
Estimate price |
5,352$
Weight | 14.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival, FSA -
Suspension Rigid -
Motor Fazua mid-drive -
Battery Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Carbon - Fazua, UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
SRAM Rival, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Rival, 11 Speed
Cassette
SRAM XG-1150, 11 Speed, 10-42T
Crank
FSA CK 746, 38T, 11 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
N/A, N/A
Chain
KMC e11T, 11 Speed, E-Bike Specific
Wheels
Front Hub
Prime RD020, 12x100mm, Centre Lock
Rear Hub
Prime RD020, 142x12mm, Centre Lock, XD Freehub
Rims
Prime Kanza Disc Alloy, 650b, Tubeless Ready
Tires
Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brakes
SRAM Rival, Hydraulic Disc, Flat Mount
Disk Rotors
SRAM Centreline, Front: 160mm, Rear: 160mm
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
FSA Gossamer, Aluminium, 27.2mm x 350mm
Motor & Battery
Motor
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Battery
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.54 mm | 1.56 mm |
| Front Center | 581 mm | 595 mm | 604 mm | 634 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 66 mm | 62 mm | 54 mm | 55 mm |
| Stack | 540.4 mm | 564.8 mm | 585.9 mm | 622.6 mm |
| Reach | 358.9 mm | 368.6 mm | 380 mm | 398.3 mm |
| Top Tube Length | 509 mm | 531.2 mm | 559 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 501 mm | 525 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 205 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1005 mm | 1019 mm | 1030 mm | 1059 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 774 mm | 793 mm | 806 mm | 824 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Substance Carbon E Gravel is part of the Vitus E E Substance model. Vitus launched 11 e-bikes of this model so far. Take a sneak peek at all Vitus E E Substance e-bikes models from 2022, by clicking here.
Model range prices
Vitus E-Substance Aluminium E 2022 is the cheapest e-bike model and costs 4013$. Vitus E-Substance Carbon E Fazua 2022 is the most expensive one and costs 5399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4864$. In conclusion, this e-bike price is 33.55% higher than the price of the average Gravel e-bike.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-Substance Carbon E Gravel weighs 14.7 kg (32.41 lbs) and is a bit heavier than the average. In short, the average Gravel e-bike weight is 8.25% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The E-Substance Carbon E Gravel 2022 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Vitus E-Substance Carbon E Gravel e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
