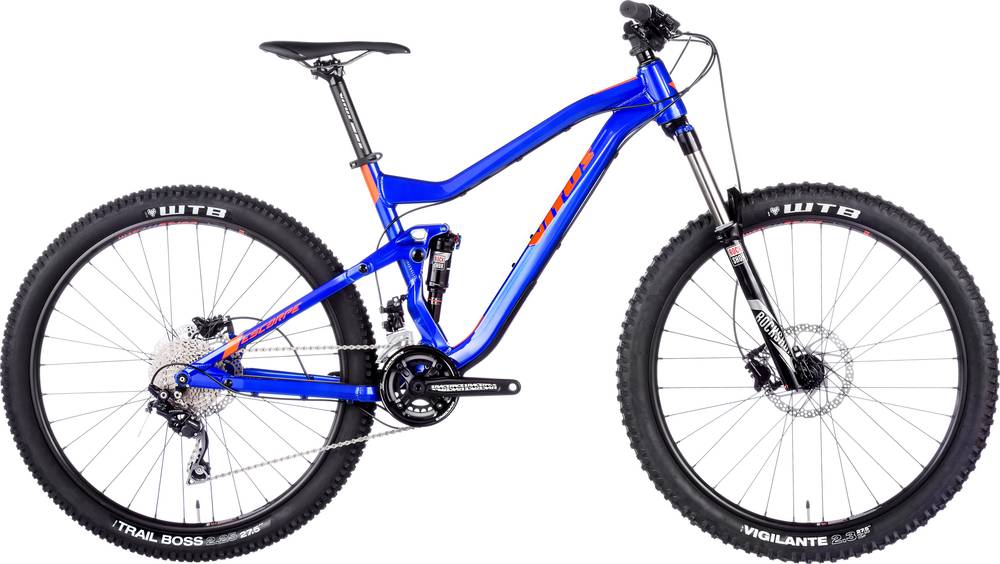

Vitus Escarpe 2017
2017 Mountain
Estimate price |
1,939$
Weight | 14.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 135mm -
Fork RockShox Sektor
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061-T6 Alloy, Four-bar V-Link Rear Suspension, 135mm Travel
Suspension Fork
RockShox Sektor Silver TK, Solo Air 140mm, Turn Key Damping, External Rebound, Ø32mm Straight Wall Low Friction Anodized Aluminium Stanchions, Tapered Alloy Steerer, Maxle Lite Thru Axle, 140mm Travel
Rear Shock
RockShox Monarch RT, 190mm x 51mm, Custom tune HVI ML 380
Drivetrain
Rear Derailleur
Shimano Deore RD-M615, Shadow Plus
Front Derailleur
Shimano Deore, Direct Mount FD-M616
Shift Levers
Shimano Deore SL-M610, Rapid Fire Plus, 10-Speed
Cassette
Shimano CS-HG50, 11t-36t, 10-Speed
Crank
RaceFace Ride, 175mm, 36tx24t
Bottom Bracket
RaceFace Ride, (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Novatec D811SB-15, 6 Bolt, 100mm x 15mm
Rear Hub
Novatec D882SB-X12, 6 Bolt, 142mm x 12mm
Rims
WTB ST i23 TCS, Tubeless ready 27.5”
Spokes
Stainless Double Butted
Tires
WTB, Front: Vigilante Comp High Grip Compound, 27.5” x 2.3”, Rear: Trail Boss Comp 27.5” x 2.25”
Brakes
Brakes
Shimano BR-M396, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 7 Degree Rise, 50mm Extension
Handlebar
Nukeproof Riser Bar, 7075 Double Butted Alloy, 20mm Rise, 760mm Wide
Headset
FSA Orbit 1.5, Zero Stack (NO.57), 1.1/8” – 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 701 mm | 726 mm | 747 mm | 769 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 590.93 mm | 590.93 mm | 600.14 mm | 609.34 mm |
| Reach | 408.66 mm | 433.66 mm | 450.94 mm | 468.21 mm |
| Top Tube Length | 574 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 382 mm | 433 mm | 483 mm | 523 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1134 mm | 1159 mm | 1180 mm | 1201 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 201 cm |
Model Overview
Escarpe is a Vitus Escarpe model. Vitus released 77 bikes variations of this model so far. Take a sneak peek at all Vitus Escarpe bikes models from 2017, by clicking here.
Model range prices
Vitus Escarpe 2017 is the most affordable bike of this model and has a price of 1763$. On the other hand, Vitus Escarpe 29 VRX 2017, is the most expensive and costs 3283$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Vitus released this model in 2017, its price was 1763$. Doing a quick comparison, we notice that Escarpe price is 56.66% smaller than the average cost of a Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Escarpe weighs 14.26 kg (31.44 lbs) and is a bit heavier than the average. In conclusion, the average Trail bike weighs 9.86% less than Escarpe.
Overview of components
Fork
Vitus Escarpe 2017 bike is equipped with the RockShox Sektor fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Escarpe has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
From the factory, it comes with the RockShox Monarch RT rear shock model, which has a travel of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Vitus Escarpe 2017, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Escarpe has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Escarpe comes in 4 sizes, that range from 152 cm – 201 cm (4.99 ft – 6.59 ft). In conclusion, finding one for you shouldn’t be a problem.
