Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset Deore, FSA -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061-T6 Aluminium Frame, with Four-bar V-Link Rear Suspension, 140mm Travel
Suspension Fork
RockShox Sektor RL Solo Air, 140mm travel, 15mm thru-axle
Rear Shock
RockShox Monarch RT
Drivetrain
Rear Derailleur
Shimano Deore RD-M615, Shadow Plus
Front Derailleur
Shimano Deore FD-M616
Shift Levers
Shimano Deore SL-M610, Rapid Fire Plus
Cassette
Shimano, 11t-36t, 10-Speed
Crank
FSA Gamma Drive MegaExo, 170mm, 36t x 24t
Bottom Bracket
FSA MegaExo (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Formula Disc - 6 Bolt, 100mm x 15mm
Rear Hub
Formula Disc - 6 Bolt, 142mm x 12mm
Rims
Mavic XM 319 Disc 27.5”
Tires
Continental X-King, 27.5” x 2.4” Front/27.5” x 2.2” Rear
Brakes
Brakes
Shimano BR-M395 Hydraulic Disc, 180mm Rotors
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 740mm Wide, 15mm Rise
Headset
Orbit 1.5 Zero Stack, (No.57), 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus Alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Reach | 394.92 mm | 419.92 mm | 437.19 mm |
| Top Tube Length | 569 mm | 594 mm | 614 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

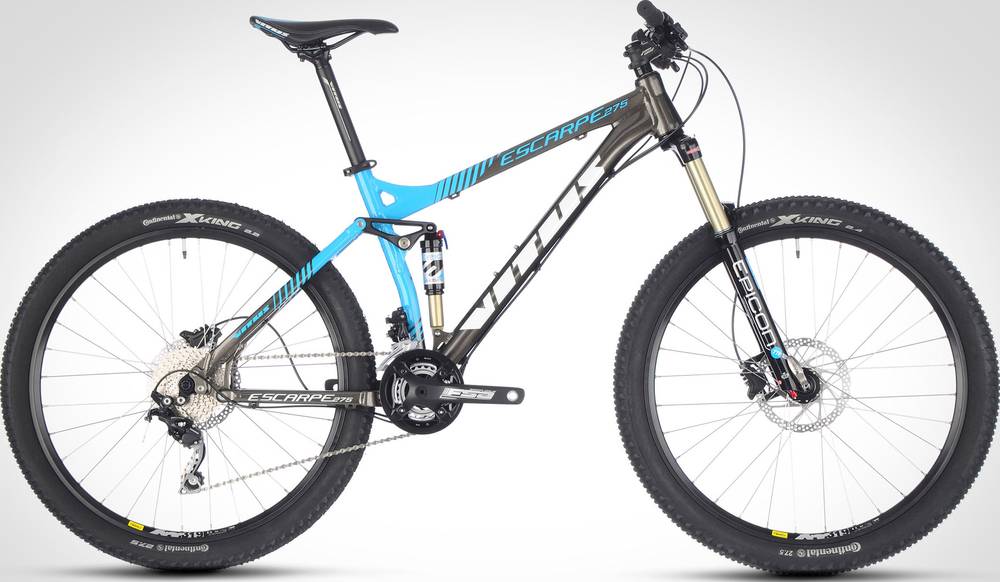

Escarpe 275 2014 is a Vitus Escarpe model. Vitus launched 77 bikes of this model so far. Take a sneak peek at all Vitus Escarpe bikes models from 2014, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.7 kg (30.2 lbs), Vitus bike is a bit heavier than average. In other words, this model is 5.55% heavier than the average Trail bike.
Overview of components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Escarpe 275 2014 2014 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Vitus Escarpe 275 2014 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
