Vitus Escarpe 275 CR 2023
2023 Mountain
Estimate price |
3,521$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z2
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe T700 carbon front triangle, 6061-T6 alloy rear, Internal cable routing, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch
Suspension Fork
Marzocchi Bomber Z2 27.5", 150mm travel, Rail damper, Float air spring, 34mm stanchions, 110mm x 15mm bolt through axle, 44mm offset
Rear Shock
RockShox Deluxe Select R, 205mm x 60mm, trunnion
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM NX Eagle, 12 Speed, Trigger Shifter
Cassette
SRAM PG-1210 Eagle, 12 Speed, 11-50T Range
Crank
SRAM Stylo 6K Eagle, 12 Speed, 32T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM NX Eagle, 12 Speed, 116 Links
Wheels
Front Hub
Vitus KT DHF112, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Vitus KT H5ER-SH, 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm
Rims
WTB ST Light i30 TCS 2.0, 27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Assegai, 27.5" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Assegai, 27.5" x 2.50" WT, 3C MaxxTerra compound, EXO casing
Brakes
Brakes
SRAM DB8, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Neutron AM, 6061 Alloy, 45mm length, 31.8mm Handlebar Clamp Diameter, 0° Rise
Handlebar
Nukeproof Horizon V2 Riser, 7075 Alloy, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, L & XL: 780mm Wide
Grips
Vitus Lock On, N/A
Headset
Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Horizon Enduro Saddle, Black, Ti Alloy Rails
Seatpost
Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.28 mm | 1.23 mm |
| Front Center | 745 mm | 774 mm | 806 mm | 838 mm |
| Rake | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 119 mm | 121 mm | 121 mm | 119 mm |
| Stack | 595 mm | 604 mm | 613 mm | 622 mm |
| Reach | 427 mm | 452 mm | 480 mm | 507 mm |
| Top Tube Length | 564 mm | 592 mm | 616 mm | 641 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1176 mm | 1205 mm | 1237 mm | 1269 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
Model Overview
Escarpe 275 CR is a Vitus Escarpe model. 77 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Vitus Escarpe 29 CR 2023 is the most affordable bike of this model and has a price of 2899$. On the other hand, Vitus Escarpe 290 AMP 2023, is the most expensive and costs 6689$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Vitus released this model in 2023, its price was 3161$. Doing a quick comparison, we notice that Escarpe 275 CR price is 14.45% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Vitus Escarpe 275 CR it’s weighing 14.9 kg (32.85 lbs). At this weight, is considerably heavier than average. In other words, this model is 14.79% heavier than the average Trail bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components

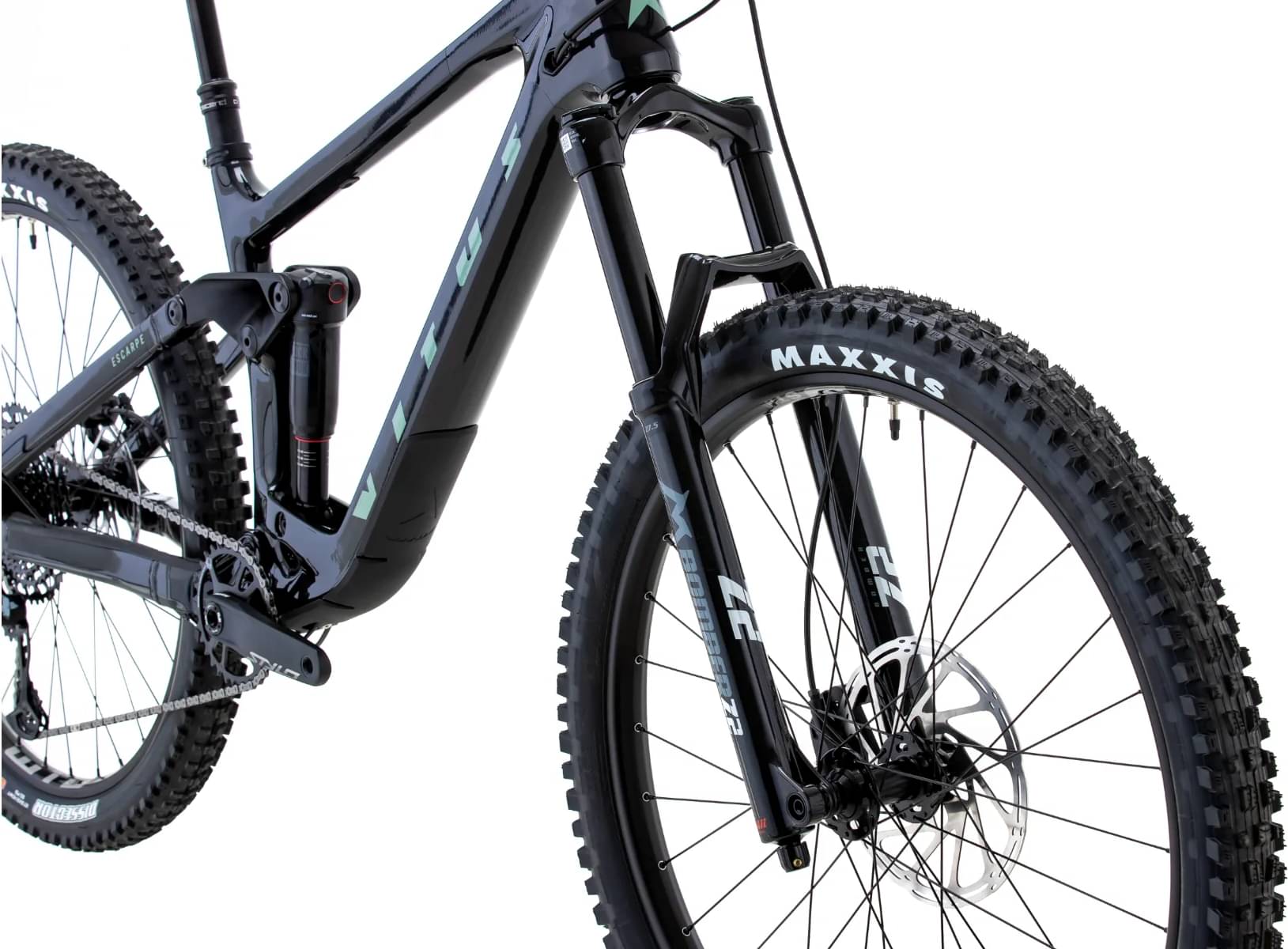

Fork
This bike has the Marzocchi Bomber Z2 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.

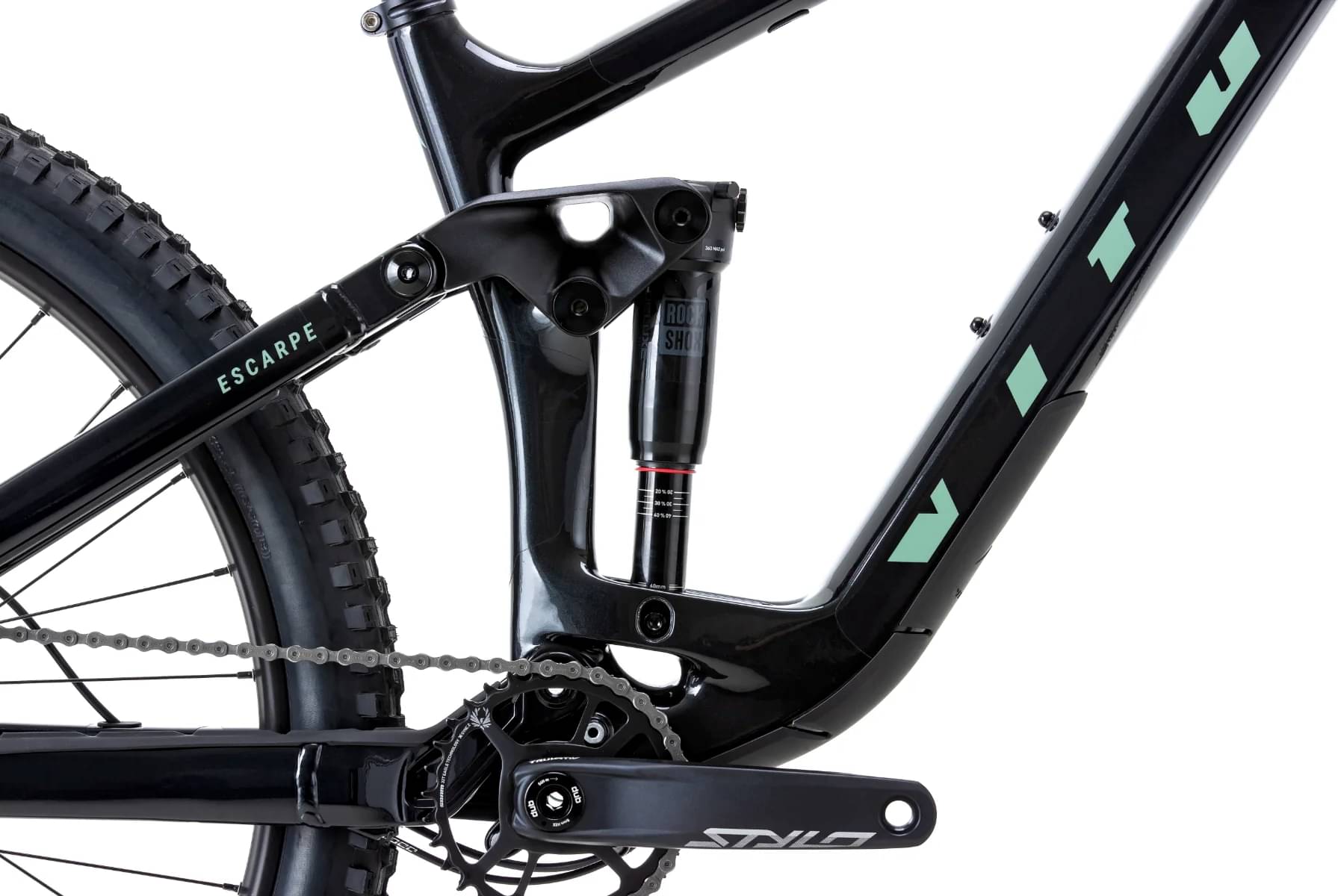

Rear Shock
From the factory, it comes with the RockShox Deluxe Select R rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Escarpe 275 CR 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Escarpe 275 CR has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 157 cm – 200 cm (5.15 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Vitus Escarpe 275 CR comes with a dropper post. Therefore, climbing or descending will be a breeze.
