Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset Deore, SLX -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061-T6 Aluminium Frame, with Four-bar V-Link Rear Suspension, 140mm Travel
Suspension Fork
RockShox Sektor Silver TK, 27.5 Solo Air, Tapered Alloy Steerer, 15mm Maxle Lite, 140mm Travel
Rear Shock
RockShox Monarch RT, 200mm x 57mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M675, Shadow Plus
Front Derailleur
Shimano Deore FD-M616
Shift Levers
Shimano SLX SL-M670, Rapid Fire Plus
Cassette
Shimano, 11t-36t, 10-Speed
Crank
FSA Comet MegaExo, 170mm, 38t x 24t
Bottom Bracket
FSA MegaExo (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Formula Disc - 6 Bolt, 100mm x 15mm
Rear Hub
Formula Disc - 6 Bolt, 142mm x 12mm
Rims
Mavic XM 319 Disc 27.5”
Tires
Continental X-King, 27.5” x 2.4” Front/27.5” x 2.2” Rear
Brakes
Brakes
Shimano SLX BR-M675 Hydraulic Disc, 180mm Rotors
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 740mm Wide, 15mm Rise
Headset
FSA Orbit 1.5 Zero Stack, (No.57), 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus Alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Reach | 394.92 mm | 419.92 mm | 437.19 mm |
| Top Tube Length | 569 mm | 594 mm | 614 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 445 mm | 485 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

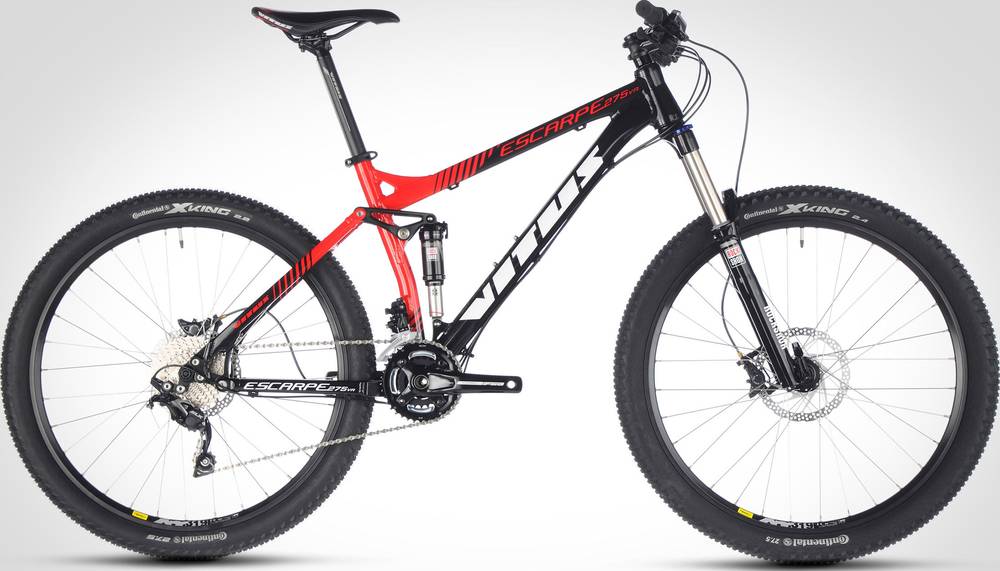

Escarpe 275VR 2014 is a Vitus Escarpe model. 77 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, Escarpe 275VR 2014 has a weight of 14.4 kg (31.75 lbs). In other words, this model is 10.94% heavier than the average Trail bike.
Overview of components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Vitus Escarpe 275VR 2014 2014, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Vitus Escarpe 275VR 2014 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
