Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset X9, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydroformed aluminium, four-bar V-Link rear suspension, 140mm travel
Suspension Fork
RockShox Sektor RL Solo Air, 140mm travel, 15mm thru-axle / RockShox Monarch RT
Drivetrain
Rear Derailleur
SRAM X9, Type 2
Front Derailleur
SRAM X7
Shift Levers
SRAM X7
Cassette
SRAM PG-1031, 11t-36t, 10-speed
Crank
SRAM S1400 GXP, 175mm, 39tx26t
Bottom Bracket
SRAM GXP (BSA)
Chain
SRAM PC-1031, 10-speed
Wheels
Front Hub
Easton EA70 XC Disc, 100mm x 15mm
Rear Hub
Easton EA70 XC Disc, 142mm x 12mm
Tires
Maxxis Ardent, 229”x2.25”
Brakes
Brakes
Avid Elixir 3 hydraulic disc, 180mm
Cockpit
Stem
Easton EA50
Handlebar
Vitus alloy flat, 730mm wide
Headset
FSA Orbit 1.5 Zero Stack, 1-1/8” to 1.5”
Seat
Saddle
Vitus
Seatpost
Easton EA50
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 677 mm | 706 mm | 724 mm |
| Top Tube Length | 569 mm | 597 mm | 614 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1129 mm | 1158 mm | 1176 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

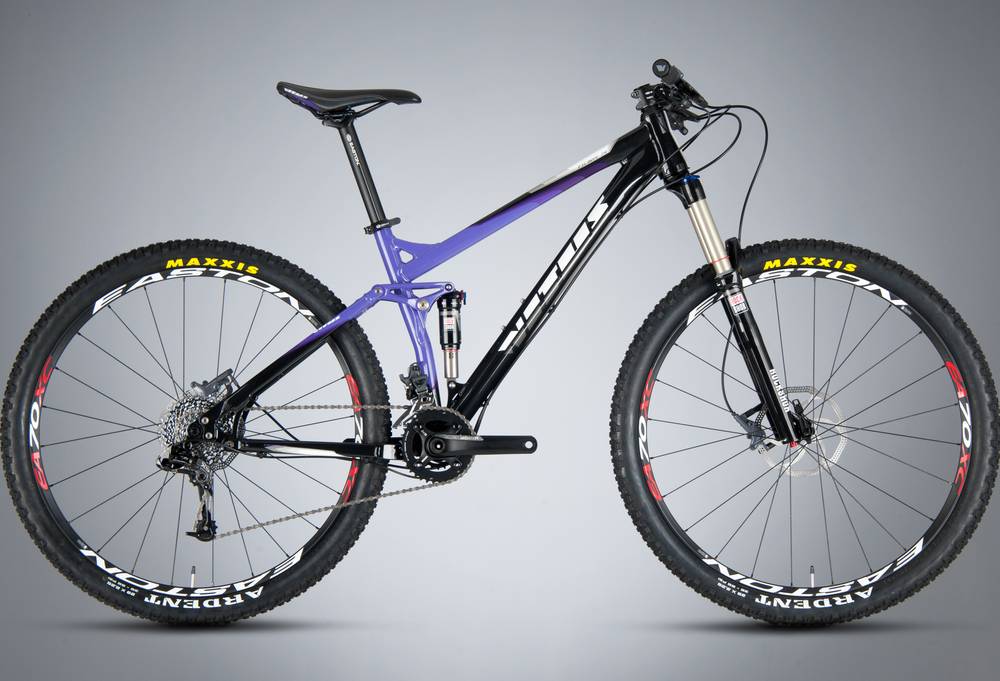

Escarpe 29 2013 belongs to the Vitus Escarpe model. Vitus launched 77 bikes of this model so far. Take a sneak peek at all Vitus Escarpe bikes models from 2013, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.7 kg (30.2 lbs), Vitus bike is a bit heavier than average. In other words, this model is 5.55% heavier than the average Trail bike.
Escarpe 29 2013 components
Fork
The fork installed on this bike is the RockShox Sektor model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Escarpe 29 2013 2013 bike is equipped with 29″ wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Escarpe 29 2013 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Vitus Escarpe 29 2013 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
