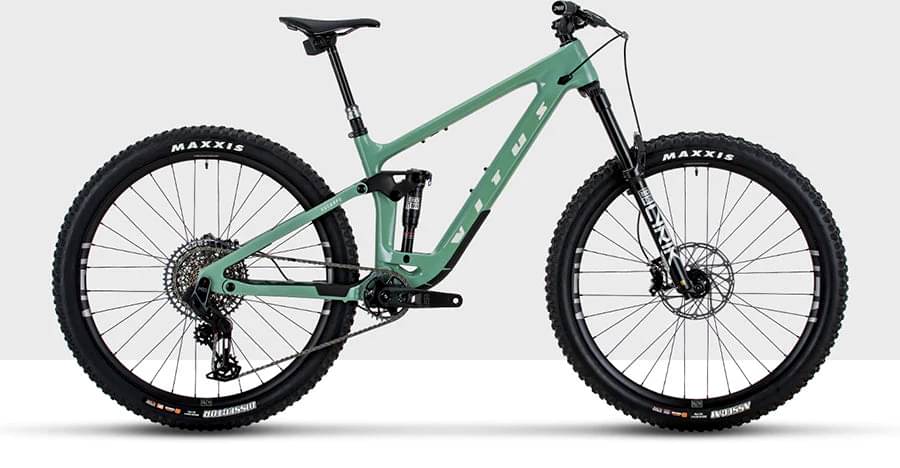

Vitus Escarpe 29 AMP 2023
2023 Mountain
Estimate price |
5,999$
Weight | 14.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 179cm
LG
177cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe full T800 carbon front & rear triangles, 140mm travel
Suspension Fork
RockShox Lyrik Ultimate 29-inch, 150mm travel, Charger 3 RC2 damper with ButterCups, DebonAir, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
Rear Shock
RockShox Deluxe Ultimate RCT, 205mm x 60mm, DebonAir, trunnion
Drivetrain
Rear Derailleur
SRAM X0 Eagle T-Type AXS, 12-speed, Wireless Electronic, Long Cage
Shift Levers
SRAM AXS Pod Controller, 12-speed, Wireless Electronic, MMX Clamp
Cassette
SRAM GX T-Type, 12 Speed, 10-52T Range
Crank
SRAM X0 Eagle T-Type, 12-speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM GX T-Type, 12 Speed, 118 Links
Chain Guide
N/A
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 29", 6 Bolt, XD Freehub, 148x12mm
Tires
Front: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Dissector, 29" x 2.4" WT, 3C MaxxTerra compound, EXO+ casing
Brakes
Brakes
SRAM Code RSC, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Horizon, 6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise
Handlebar
Nukeproof Horizon V2 Carbon Riser, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, 780mm Wide
Headset
Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Horizon Enduro Saddle, Black, Ti Alloy Rails
Seatpost
RockShox Reverb AXS, Wireless Electronic, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.33 mm | 1.27 mm |
| Front Center | 750 mm | 780 mm | 811 mm | 843 mm |
| Rake | 37 mm | 48 mm | 48 mm | 49 mm |
| Trail | 134 mm | 122 mm | 122 mm | 121 mm |
| Stack | 614 mm | 622 mm | 631 mm | 640 mm |
| Reach | 434 mm | 448 mm | 475 mm | 502 mm |
| Top Tube Length | 563 mm | 592 mm | 616 mm | 640 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1185 mm | 1215 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 177 cm | 189 cm |
| Rider Max Height | 171 cm | 179 cm | 191 cm | 201 cm |
Model Overview
Escarpe 29 AMP is a Vitus Escarpe model. 77 bikes variations carry this model name so far. You can easily view all of the Vitus Escarpe bikes models from 2023, here.
Model range prices
Vitus Escarpe 29 CR 2023 is the cheapest bike model and costs 2899$. Vitus Escarpe 290 AMP 2023 is the most expensive one and costs 6689$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Vitus Escarpe 29 AMP price was 5999$. Comparing this to the average Trail bike price, we see that the price is 117.2% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, Escarpe 29 AMP has a weight of 14.42 kg (31.79 lbs). To sum up, it’s 11.09% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the RockShox Lyrik Ultimate fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe Ultimate RCT rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Escarpe 29 AMP bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Escarpe 29 AMP is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 201 cm (5.25 ft – 6.59 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Vitus Escarpe 29 AMP comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
