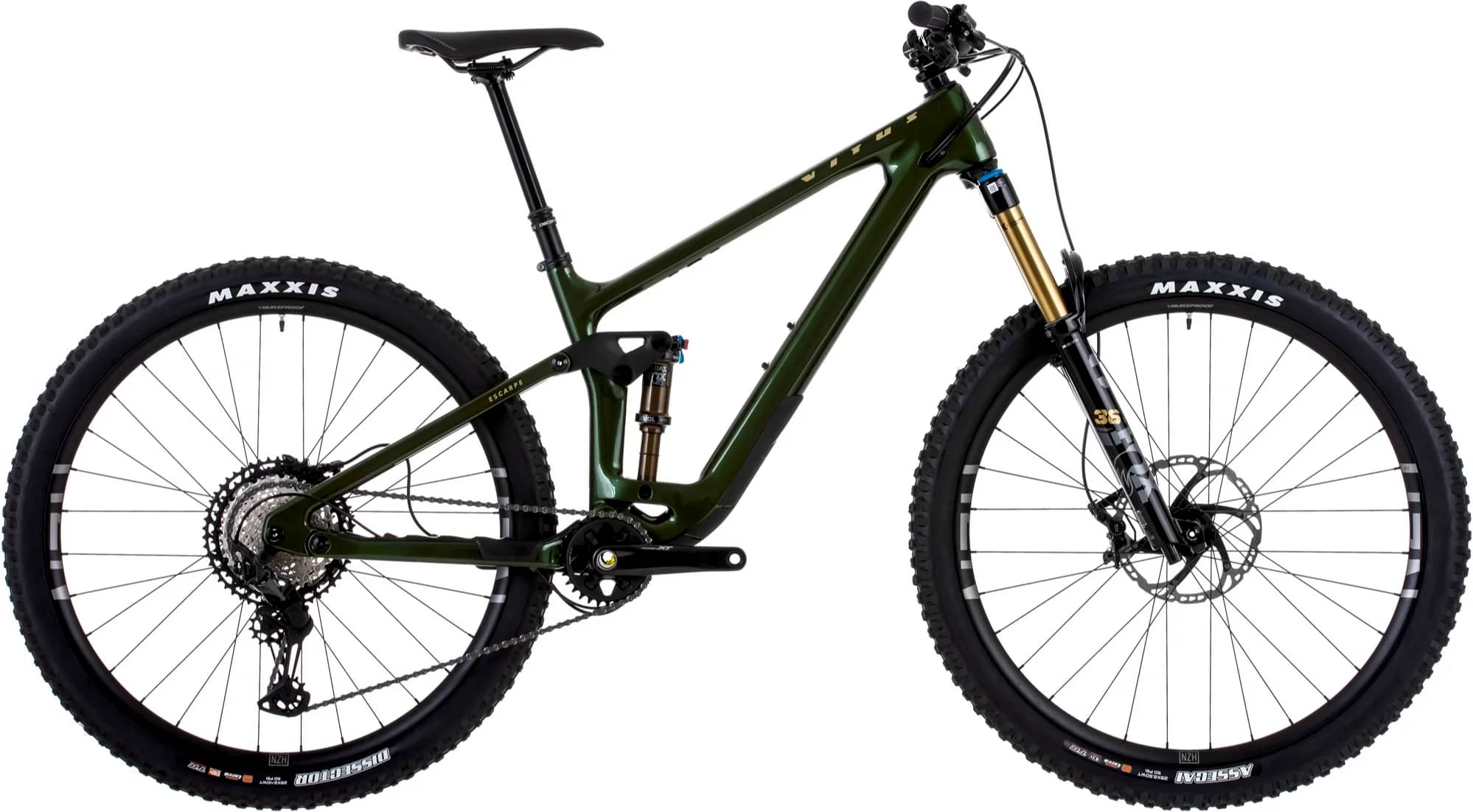

Vitus Escarpe 29 CRX 2022
2022 Mountain
Estimate price |
4,799$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe full T800 carbon front & rear triangles, Internal cable routing, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch
Suspension Fork
Fox 36 Float Factory Series 29", 150mm travel, Kashima coating, GRIP2 damper, 36mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
Rear Shock
Fox Float DPS Factory Series, Kashima coating, Grip2 air spring, EVOL, 3 position lever, 205mm x 60mm, trunnion
Drivetrain
Rear Derailleur
Shimano XT M8100, 12 Speed, Shadow Plus, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
Shimano XT M8100, 12 Speed, Rapidfire Plus
Cassette
Shimano XT M8100, 12 Speed, 10-51T Range
Crank
Shimano XT M8100, 12 Speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
Shimano BB52, BSA Threaded BB, 73mm Shell
Chain
Shimano XT M8100, 12 Speed, 116 Links
Chain Guide
N/A
Wheels
Front Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, 148mm x 12mm
Rims
Nukeproof Horizon V2, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing
Brakes
Brakes
Shimano XT M8100, Post Mount, Front: Four Piston Caliper, Rear: Two Piston Caliper
Cockpit
Stem
Nukeproof Horizon, 6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise
Handlebar
Nukeproof Horizon V2 Riser, 7075 Alloy, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, L & XL: 780mm Wide
Grips
Vitus Lock On, N/A
Headset
Acros AZX-212-CO R5, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Neutron Saddle, Black, Steel Rails
Seatpost
Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.33 mm | 1.27 mm |
| Front Center | 750 mm | 780 mm | 811 mm | 843 mm |
| Rake | 38 mm | 48 mm | 48 mm | 49 mm |
| Trail | 133 mm | 122 mm | 122 mm | 121 mm |
| Stack | 613 mm | 622 mm | 631 mm | 639 mm |
| Reach | 434 mm | 448 mm | 475 mm | 502 mm |
| Top Tube Length | 563 mm | 592 mm | 616 mm | 640 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1185 mm | 1215 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
Model Overview
Escarpe 29 CRX is part of the Vitus Escarpe model. 77 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Vitus Escarpe 27 Mountain 2022 has a starting price of 2432$. Vitus Escarpe 29 AMP 2022 on the other hand is the most expensive at 5999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Vitus Escarpe 29 CRX price was 4799$. Comparing this to the average Trail bike price, we see that the price is 73.75% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Escarpe 29 CRX has a weight of 14 kg (30.86 lbs). In short, the average Trail bike weight is 7.86% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Vitus Escarpe 29 CRX 2022 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Factory Series, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Escarpe 29 CRX bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Escarpe 29 CRX comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Vitus Escarpe 29 CRX bike has 4 sizes, in the range of 157 cm – 200 cm (5.15 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
