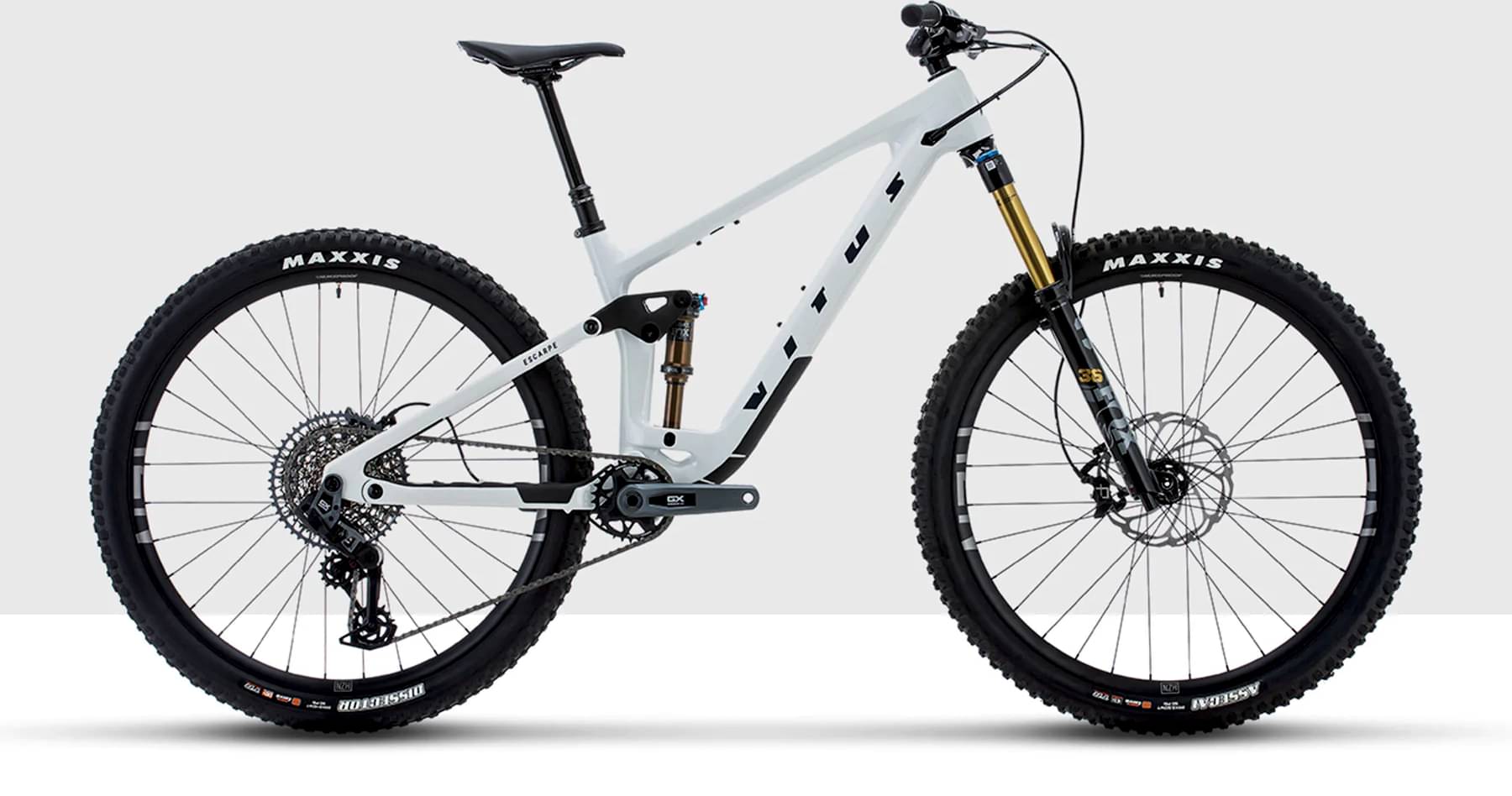

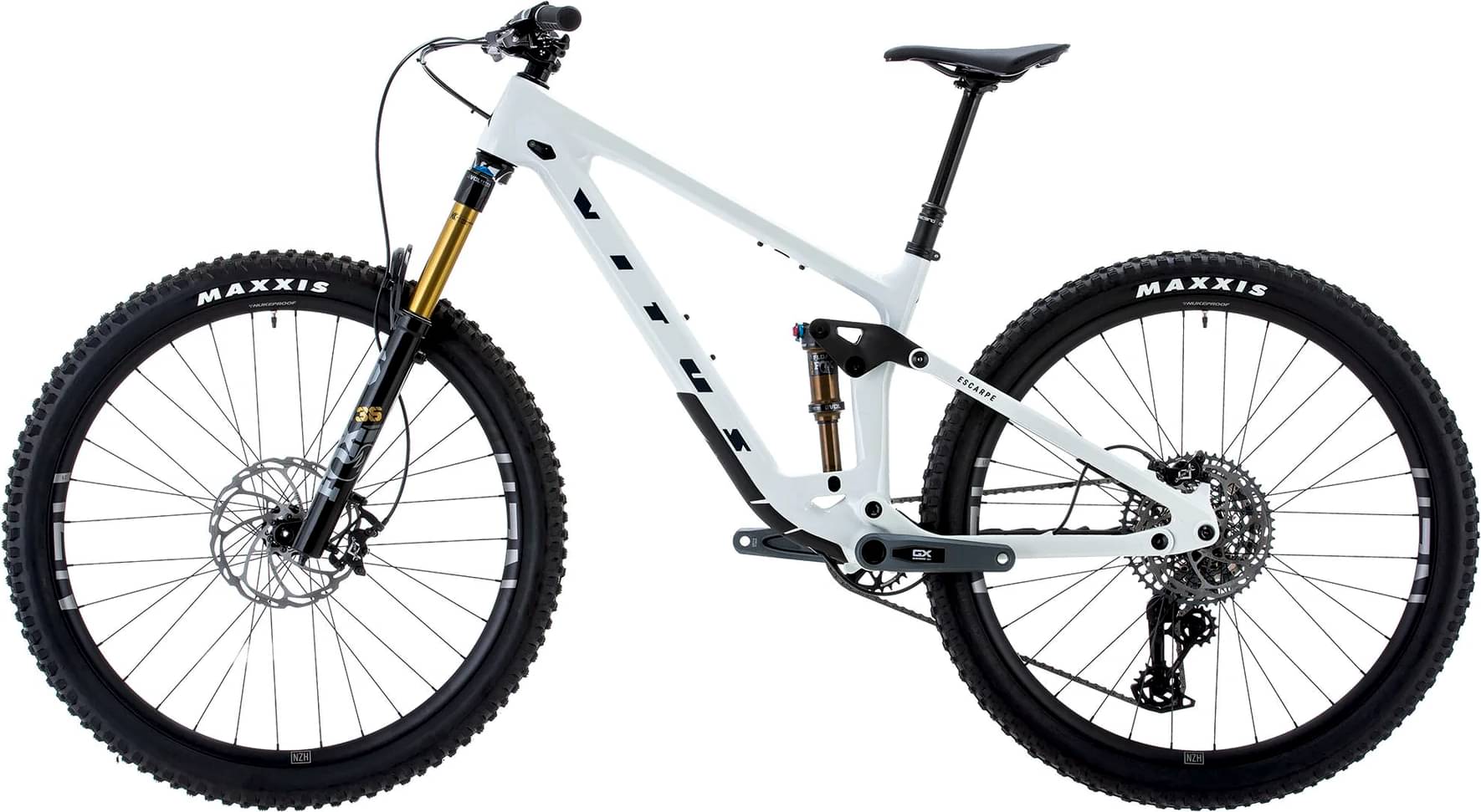

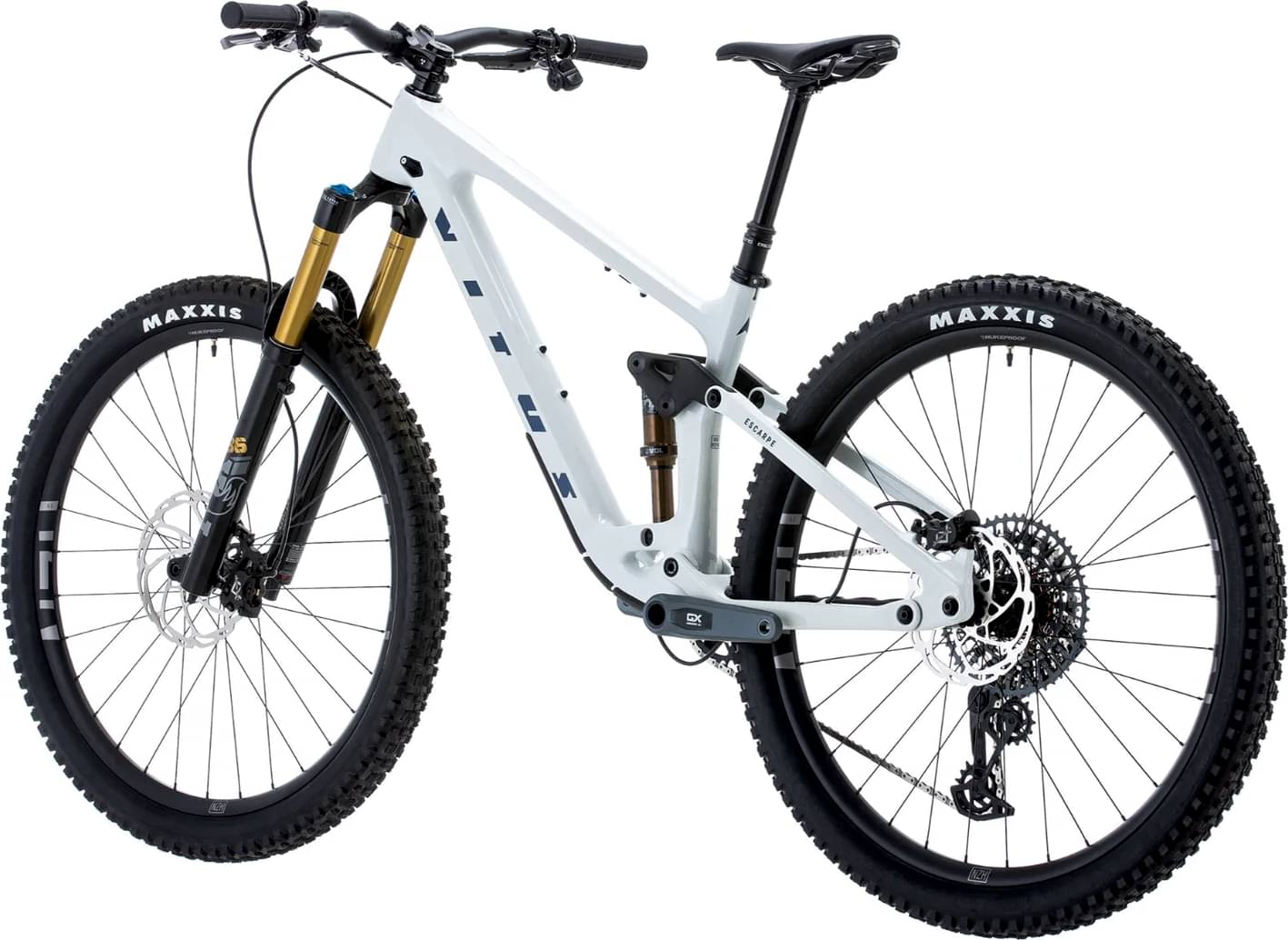

Vitus Escarpe 29 CRX 2023
2023 Mountain
Estimate price |
4,899$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 179cm
LG
177cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe full T800 carbon front & rear triangles, 140mm travel
Suspension Fork
Fox 36 Float Factory Series 29", 150mm travel, Kashima coating, GRIP2 damper, 36mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
Rear Shock
Fox Float DPS Factory Series, Kashima coating, Grip2 air spring, EVOL, 3 position lever, 205mm x 60mm, trunnion
Drivetrain
Rear Derailleur
SRAM GX Eagle T-Type AXS, 12-speed, Wireless Electronic, Long Cage
Shift Levers
SRAM AXS Pod Controller, 12-speed, Wireless Electronic, MMX Clamp
Cassette
SRAM GX T-Type, 12 Speed, 10-52T Range
Crank
SRAM GX Eagle T-Type, 12-speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM GX T-Type, 12 Speed, 118 Links
Chain Guide
N/A
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 29", 6 Bolt, XD Freehub, 148x12mm
Tires
Front: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Dissector, 29" x 2.4" WT, 3C MaxxTerra compound, EXO+ casing
Brakes
Brakes
Hayes Dominion A4, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Horizon, 6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise
Handlebar
Nukeproof Horizon V2 Riser, 7075 Alloy, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 780mm Wide, L & XL: 800mm Wide
Headset
Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Horizon Enduro Saddle, Black, Ti Alloy Rails
Seatpost
Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.33 mm | 1.27 mm |
| Front Center | 750 mm | 780 mm | 811 mm | 843 mm |
| Rake | 37 mm | 48 mm | 48 mm | 49 mm |
| Trail | 134 mm | 122 mm | 122 mm | 121 mm |
| Stack | 614 mm | 622 mm | 631 mm | 640 mm |
| Reach | 434 mm | 448 mm | 475 mm | 502 mm |
| Top Tube Length | 563 mm | 592 mm | 616 mm | 640 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1185 mm | 1215 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 177 cm | 189 cm |
| Rider Max Height | 171 cm | 179 cm | 191 cm | 201 cm |
About this model
Escarpe 29 CRX is part of the Vitus Escarpe model. Vitus launched 77 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Vitus Escarpe 29 CR 2023 is the most economical model, with a starting price of 2899$. Vitus Escarpe 290 AMP 2023 on the other hand costs 6689$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4899$. Comparing this to the average Trail bike price, we see that the price is 77.37% more expensive.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, Escarpe 29 CRX has a weight of 14.7 kg (32.41 lbs). In short, the average Trail bike weight is 13.25% lower than this one.
Overview of components
Fork
Vitus Escarpe 29 CRX 2023 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS Factory Series model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Vitus Escarpe 29 CRX 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Escarpe 29 CRX is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Vitus Escarpe 29 CRX bike has 4 sizes, in the range of 160 cm – 201 cm (5.25 ft – 6.59 ft). In short, you can easily find one that suits you.
Dropper post
Vitus Escarpe 29 CRX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
