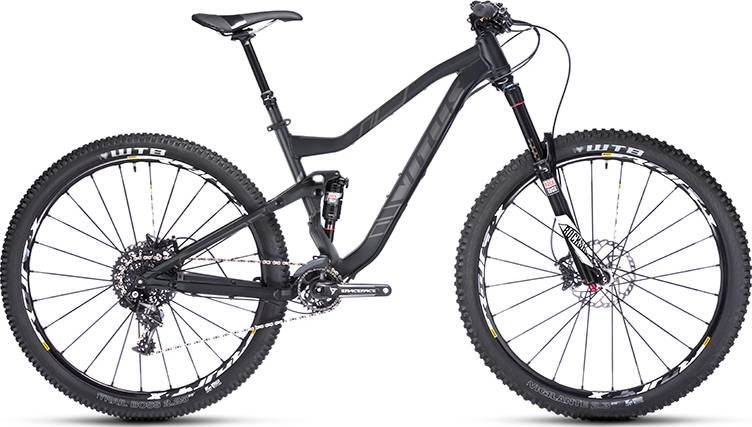

Vitus Escarpe 29 PRO 2016
2016 Mountain
Estimate price |
4,415$
Weight | 13.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork RockShox Pike RCT3
-
Groupset X01, e*thirteen XCX Plus -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061-T6 Aluminium, Four-bar V-Link Rear Suspension, 135mm Travel
Suspension Fork
RockShox Pike RCT3 Solo Air, 150mm Travel, Ø35mm Tapered Wall Aluminium Stanchions – Low Friction Anodize Fast Black, External Rebound & Low Speed Compression Damping, Tapered Aluminium Steerer, 15mm Maxle Lite Thru Axle
Rear Shock
RockShox Monarch RT3 Debon Air, 190mm x 51mm, Custom tune HVI ML 380
Drivetrain
Rear Derailleur
SRAM X01
Front Derailleur
E.Thirteen XCX+ 105
Shift Levers
SRAM X1, 11-Speed
Cassette
SRAM XG-1175, 10t-42t, 11-Speed
Crank
RaceFace Turbine Cinch, 170mm, 32t
Bottom Bracket
RaceFace Turbine, BSA
Chain
SRAM PCX1, 11-Speed
Wheels
Front Hub
Mavic Crossmax XL, 6 Bolt - 6 Bolt, 100mm x 15mm
Rear Hub
Mavic Crossmax XL, 6 Bolt - 6 Bolt, XX1/142mm x 12mm
Rims
Mavic Crossmax XL, 29”
Spokes
Mavic Crossmax Crossmax XL
Tires
WTB, Front: Vigilante TCS, Dual DNA Compound, UST Aramid Bead, 29” x 2.3”, Rear: WTB Trail Boss TCS, Dual DNA Compond, UST Aramid Bead, 29” x 2.25”
Brakes
Brakes
Shimano XT BR-M8000, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Nukeproof Zero, 0 Degree Rise, 50mm Extension
Handlebar
Nukeproof Warhead, 7075 Double Butted Alloy, 20mm Rise, 760mm Wide
Headset
FSA Orbit 1.5, Zero Stack (NO.57), 1.1/8” – 1.5”
Seat
Saddle
Vitus
Seatpost
RockShox Reverb Stealth, 31.6mm x 125mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 714 mm | 740 mm | 761 mm | 783 mm |
| Rake | 52 mm | 61 mm | 52 mm | 52 mm |
| Trail | 102 mm | 93 mm | 102 mm | 102 mm |
| Stack | 612 mm | 621.21 mm | 630.41 mm | 639.62 mm |
| Reach | 408.22 mm | 420.58 mm | 447.95 mm | 465.31 mm |
| Top Tube Length | 574 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 382 mm | 433 mm | 483 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1161 mm | 1187 mm | 1208 mm | 1230 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 201 cm |
About this model
Escarpe 29 PRO completes the Vitus Escarpe model. Vitus released 77 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
The most economical model, the Vitus Escarpe 2016 has a starting price of 1702$. Vitus Escarpe PRO 2016 on the other hand is the most expensive at 4013$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4013$. Comparing this to the average Trail bike price, we see that the price is 45.29% more expensive.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.46 kg (29.67 lbs), the Escarpe 29 PRO model is slightly heavier than average. To sum up, it’s 3.7% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Escarpe 29 PRO comes factory-installed with the RockShox Pike RCT3 fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
Vitus Escarpe 29 PRO bike has the RockShox Monarch RT3 Debon Air model installed, and has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Vitus Escarpe 29 PRO 2016, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 201 cm (4.99 ft – 6.59 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Vitus model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
