Vitus Escarpe 290 CRX 2023
2023 Mountain
Estimate price |
6,155$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe full T800 carbon front & rear triangles, Internal cable routing, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch
Suspension Fork
Fox 36 Float Factory Series 29", 150mm travel, Kashima coating, GRIP2 damper, 36mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset

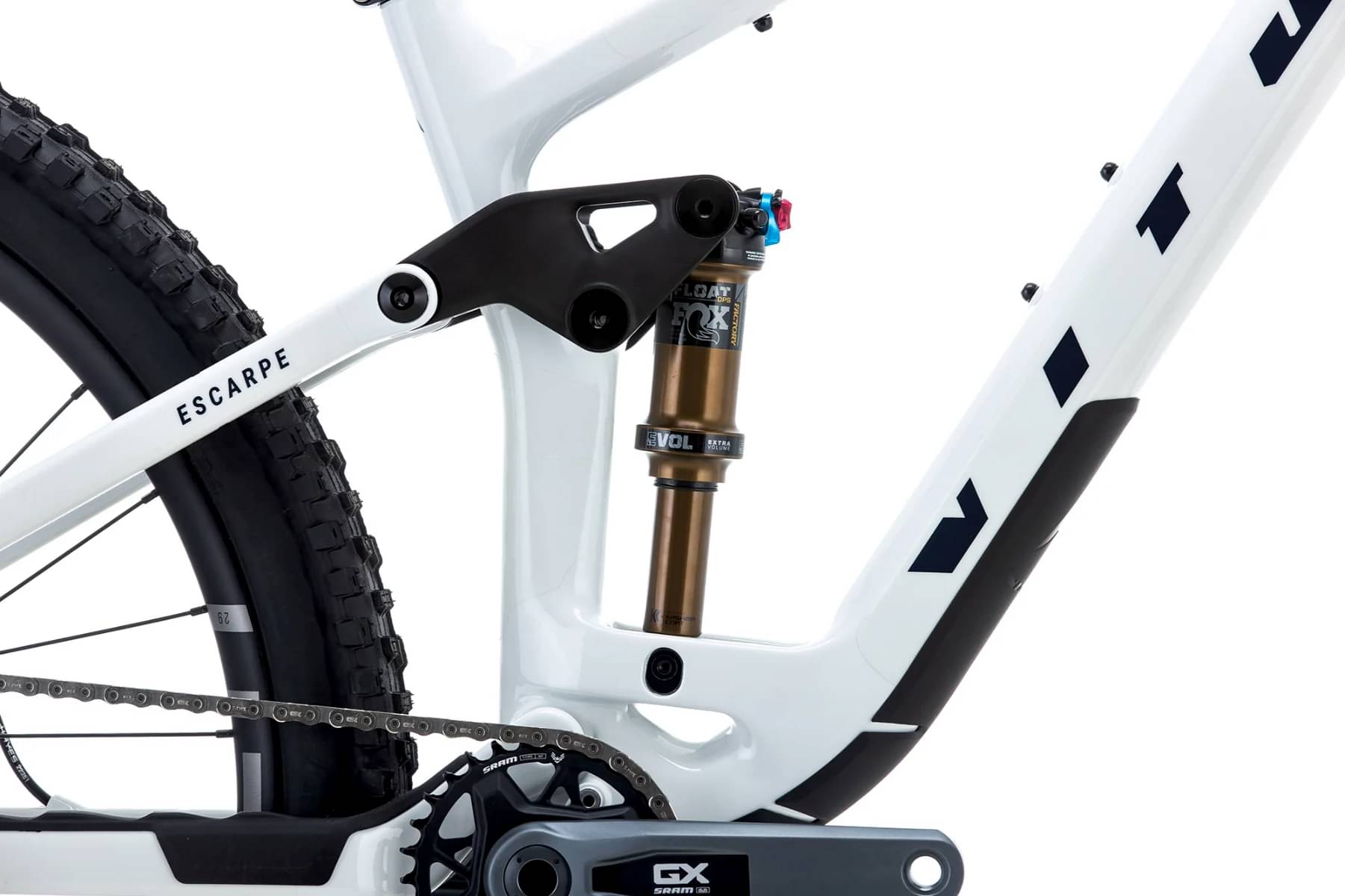

Rear Shock
Fox Float DPS Factory Series, Kashima coating, EVOL, 3 position lever, 205mm x 60mm, trunnion
Drivetrain
Rear Derailleur
SRAM GX Eagle T-Type AXS, 12 Speed, Wireless Electronic, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM AXS Pod Controller, 12 Speed, Wireless Electronic, MMX Clamp
Cassette
SRAM GX Eagle T-Type, 12 Speed, 10-52T Range
Crank
SRAM GX Eagle T-Type, 12 Speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM GX T-Type, 12 Speed, 118 Links
Wheels
Front Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, XD Freehub, 148mm x 12mm
Rims
Nukeproof Horizon V2, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing
Brakes
Brakes
Hayes Dominion A4, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Horizon, 6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise
Handlebar
Nukeproof Horizon V2 Riser, 7075 Alloy, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, L & XL: 780mm Wide
Grips
Vitus Lock On, N/A
Headset
Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Horizon Enduro Saddle, Black, Ti Alloy Rails
Seatpost
Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.33 mm | 1.23 mm |
| Front Center | 750 mm | 780 mm | 811 mm | 859 mm |
| Rake | 38 mm | 48 mm | 48 mm | 48 mm |
| Trail | 133 mm | 122 mm | 122 mm | 122 mm |
| Stack | 613 mm | 622 mm | 631 mm | 639 mm |
| Reach | 434 mm | 448 mm | 475 mm | 519 mm |
| Top Tube Length | 563 mm | 592 mm | 616 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1185 mm | 1215 mm | 1246 mm | 1294 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
Model Overview
Escarpe 290 CRX is a Vitus Escarpe model. Vitus released 77 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Vitus Escarpe 29 CR 2023 is the cheapest bike model and costs 2899$. Vitus Escarpe 290 AMP 2023 is the most expensive one and costs 6689$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5594$. In conclusion, this bike price is 102.53% more expensive than the price of the average Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Escarpe 290 CRX has a weight of 14.1 kg (31.09 lbs). In short, the average Trail bike weight is 8.63% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Factory Series, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Escarpe 290 CRX bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Escarpe 290 CRX has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Escarpe 290 CRX comes in 4 sizes, that range from 157 cm – 200 cm (5.15 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Vitus Escarpe 290 CRX comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
