Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset X9, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydroformed aluminium, four-bar V-Link rear suspension, 140mm travel
Suspension Fork
RockShox Revelation RL Solo Air, 140mm travel, 15mm thru-axle / RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM X9 Type 2
Front Derailleur
SRAM X7
Shift Levers
SRAM X9
Cassette
SRAM PG-1050, 11t-36t, 10-speed
Crank
SRAM S1400 GXP, 175mm, 39tx26t
Bottom Bracket
SRAM GXP (BSA)
Chain
SRAM PC-1031, 10-speed
Wheels
Front Hub
Easton EA70 XC Disc, 100mm x 15mm
Rear Hub
Easton EA70 XC Disc, 142mm x 12mm
Tires
Maxxis High Roller, 26”x2.35”, 60a MaxxPro
Brakes
Brakes
Avid Elixir 5 hydraulic disc, 180mm
Cockpit
Stem
Easton EA50, 60mm, 8 degree rise
Handlebar
Vitus alloy riser, 730mm wide, 25mm rise
Headset
FSA Orbit 1.5 Zero Stack, 1-1/8” to 1.5”
Seat
Saddle
Vitus
Seatpost
Easton EA50
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 672 mm | 697 mm | 723 mm |
| Top Tube Length | 571 mm | 596 mm | 621 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1112 mm | 1137 mm | 1163 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

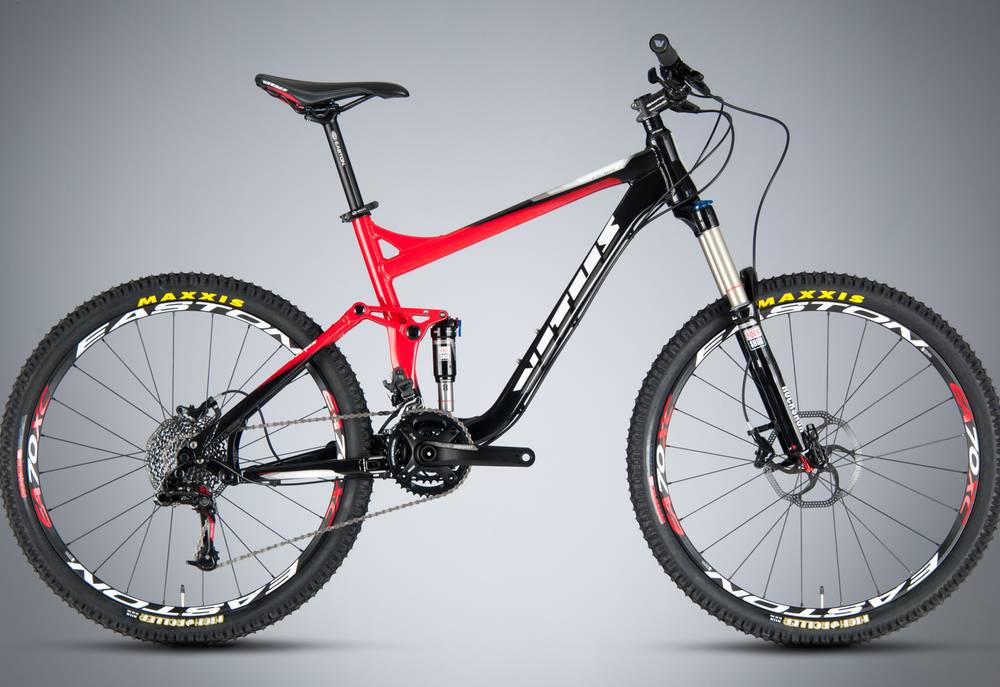

Escarpe I 2013 completes the Vitus Escarpe model. Vitus launched 77 bikes of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Escarpe I 2013 weighs 13.4 kg (29.54 lbs) and is slightly heavier than the average. To sum up, it’s 3.24% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Escarpe I 2013 bike is equipped with the 26″ model. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
