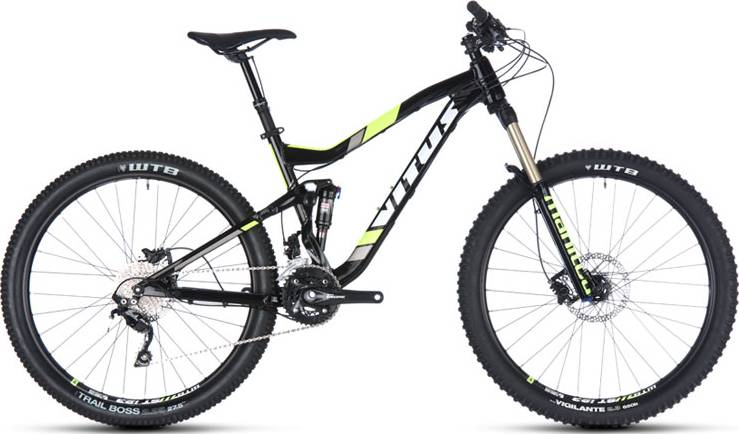

Vitus Escarpe VR 2015
2015 Mountain
Estimate price |
2,274$
Weight | 14.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Manitou
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061-T6 Aluminium, Four-bar V-Link Rear Suspension, 135mm Travel
Suspension Fork
Manitou Minute Expert, 140mm Travel, ISO Air spring, Ø32mm 7050 Butted Aluminium stanchions, Compression to Lockout and Rebound damping, TPC Technology ABS+ Trail Tuned, Tapered aluminium steerer, 15mm QR Through Axle
Rear Shock
RockShox Monarch RT, 190mm x 51mm, Custom tune HVI ML 320
Drivetrain
Rear Derailleur
Shimano SLX RD-M675 Shadow Plus
Front Derailleur
Shimano Deore, Direct Mount FD-M616
Shift Levers
Shimano SLX SL-M670, Rapid Fire Plus, 10-Speed
Cassette
Shimano CS-HG50, 11t-36t, 10-Speed
Crank
Shimano Deore FC-M615, 170mm, 38tx24t
Bottom Bracket
Shimano, Hollowtech (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Formula, 6 Bolt, 100mm x 15mm
Rear Hub
Formula, 6 Bolt, 142mm x 12mm
Rims
WTB ST i23 TCS, 27.5”
Spokes
Stainless
Tires
WTB, Front: Vigilante Comp 27.5” x 2.3”, Rear: Trail Boss Comp27.5” x 2.25”
Brakes
Brakes
Shimano BR-M445, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 7075 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5, Zero Stack (NO.57), 1.1/8” – 1.5”
Seat
Saddle
Vitus
Seatpost
KS E-Ten Remote, 31.6mm x 385mm, 100mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 701 mm | 726 mm | 747 mm | 769 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 590.93 mm | 590.93 mm | 600.14 mm | 609.34 mm |
| Reach | 408.66 mm | 433.66 mm | 450.94 mm | 468.21 mm |
| Top Tube Length | 574 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 382 mm | 433 mm | 483 mm | 523 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1134 mm | 1159 mm | 1180 mm | 1201 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 201 cm |
About this model
Escarpe VR completes the Vitus Escarpe model. Vitus launched 77 bikes of this model so far. You can easily view all of the Vitus Escarpe bikes models from 2015, here.
Model range prices
The most economical model, the Vitus Escarpe 290 2015 has a starting price of 1823$. Vitus Escarpe PRO 2015 on the other hand is the most expensive at 4378$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2015 and its price was 2067$. If we compare this with the average Trail bike cost we notice that the price is 33.62% lower.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Escarpe VR weighs 14.26 kg (31.44 lbs) and is a bit heavier than the average. In conclusion, the average Trail bike weighs 9.86% less than Escarpe VR.
Escarpe VR components
Fork
The Escarpe VR comes factory-installed with the Manitou fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The shock that’s installed on this bike is RockShox Monarch RT, with a travel distance of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Vitus Escarpe VR 2015, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Escarpe VR has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 201 cm (4.99 ft – 6.59 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Escarpe VR. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
