Bike details
Overview
Key information split into simple groups.

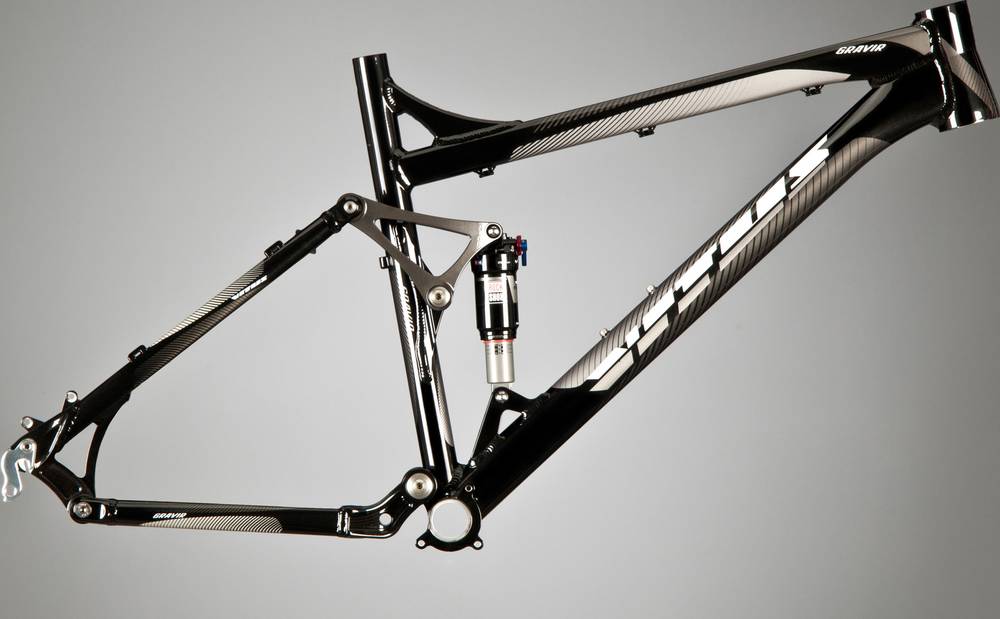

Frame summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydroformed aluminium, Four-bar V-Link Link rear suspension, 100mm travel
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
, Type 2
Cassette
, 11t-36t, 10-Speed
Chain
, 10-Speed
Wheels
Front Hub
, 100mm x 15mm
Rear Hub
, 135mm x QR
Cockpit
Stem
Easton EA50, 60mm, 8 degree rise
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 654 mm | 679 mm | 706 mm |
| Top Tube Length | 568 mm | 593 mm | 618 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1081 mm | 1106 mm | 1133 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Gravir Frame 2013 completes the Vitus Gravir model. There are 4 frames that carry this model name. Take a sneak peek at all Vitus Gravir frames models from 2013, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Gravir Frame 2013 components
Rear Shock
From the factory, it comes with the RockShox Monarch RT3 rear shock model, which has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
This frame is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
