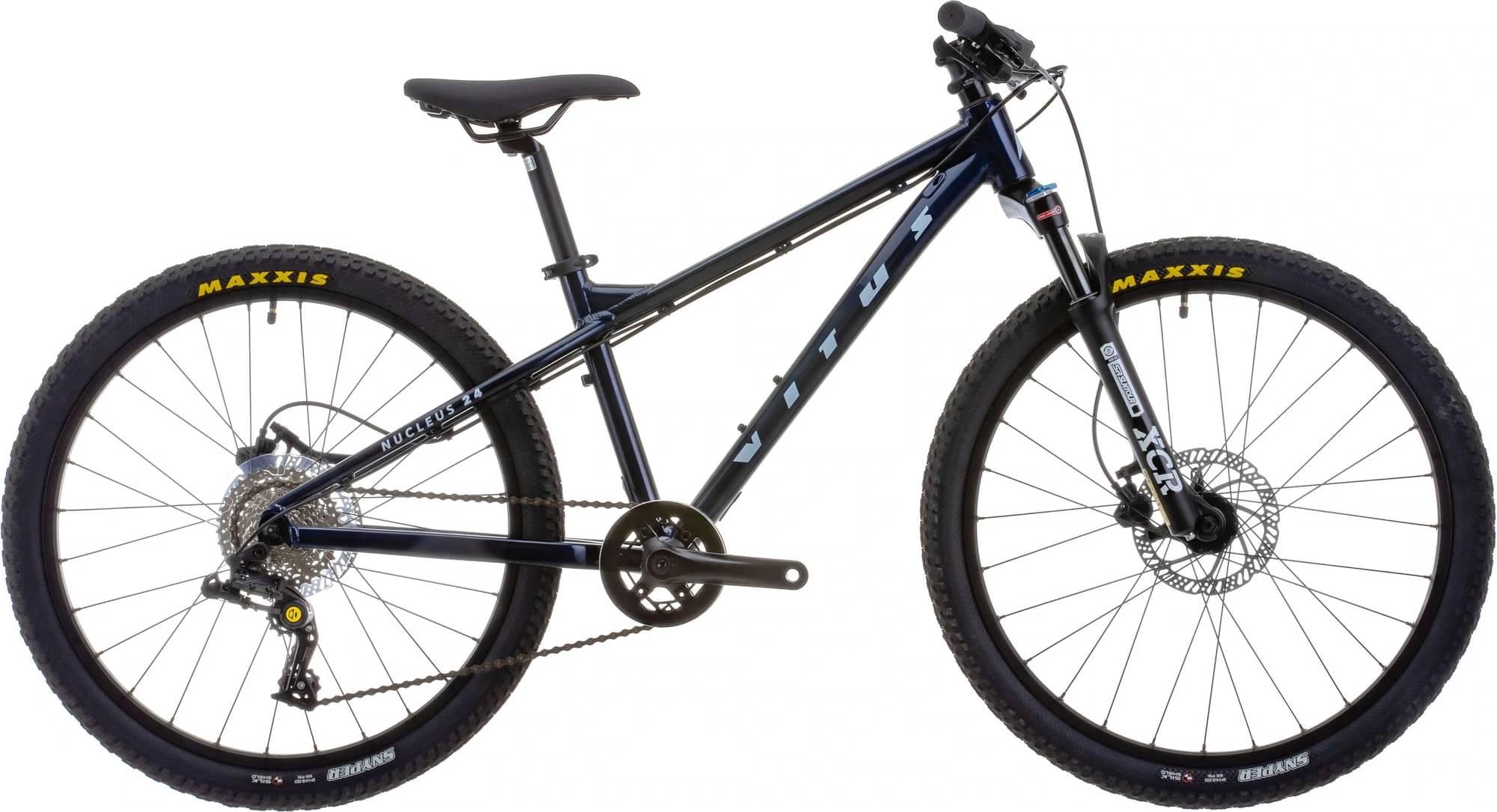

Vitus Nucleus 24 Youth Hardtail 2022
2022 Youth
Estimate price |
802$
Weight | 12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 24" -
Travel Front 60mm -
Fork Suntour XCR Air
-
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
124cm - 137cm
26"
134cm - 154cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nucleus Aluminium - 24" Wheel, BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR Axle
Suspension Fork
Suntour XCR-DS-LO Air Forks, 60mm travel, IS Mount, 100mm x 9mm QR Axle, Lock-Out, 1 1/8" Steerer
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Box Four 8, 8 Speed w/ Clutch
Front Derailleur
N/A, N/A
Shift Levers
Box Four 8, 8 Speed
Cassette
Sunrace CSM66, 11-34T, 8 Speed
Crank
Samox, 140mm Crank Arm, 30T, Double Chain Guard, Reduced Q Factor
Bottom Bracket
Cartridge Square Taper, BSA Threaded, 68mm Shell, English Thread, 113.5mm Axle Length
Chain
Box Four 8, 8 Speed
Wheels
Front Hub
Vitus KT, K08F, 28 Hole, 6 Bolt, 100mm x 9mm QR
Rear Hub
Vitus KT, K08R, 28 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed HG Freehub
Rims
Vitus Shining, BX-32, 24", 28 Hole, Double Wall, Eyelets, Disc Specific
Tires
Maxxis Rekon, 24” x 2.2”
Brakes
Brakes
Tektro HD-M276 Disc Brake, Hydraulic, Reach Adjust
Disk Rotors
Tektro TR160, Front: 160mm, Rear: 160mm
Cockpit
Stem
Vitus 6061 Aluminium, 40mm Length, +/- 3°
Handlebar
Vitus 6061 Aluminium, 15mm Rise, 9° Back Sweep, 620mm Wide
Grips
Vitus, 110mm, Closed End
Headset
Neco No:11G, Semi-Cartridge, 1.5mm Top Cover, Height 9.8mm
Seat
Saddle
Vitus, Kids Specific, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 250mm, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" | 26" |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.41 mm |
| Front Center | 444 mm | 461.5 mm |
| Rake | 41 mm | 38 mm |
| Stack | 478.3 mm | 544.1 mm |
| Reach | 333 mm | 387 mm |
| Top Tube Length | 486.96 mm | 556.1 mm |
| Seat Tube Angle | 72.5 ° | 73 ° |
| Seat Tube Length | 340 mm | 356 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 105 mm |
| Chainstay Length | 406 mm | 421 mm |
| Wheelbase | 957 mm | 1062 mm |
| Bottom Bracket Drop | 45 mm | 40 mm |
| Wheels | 24" | 24" |
| Rider Min Height | 124 cm | 134 cm |
| Rider Max Height | 137 cm | 154 cm |
About this model
Nucleus 24 Youth Hardtail completes the Vitus Nucleus model. 65 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Vitus Nucleus 24 Youth Hardtail 2022 is the cheapest bike model and costs 729$. Vitus Nucleus 29 VRS 2022 is the most expensive one and costs 972$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Mountain bikes
If you want an acceptable Mountain bike you should know that the average price is 616$. However, even though the average price of a Mountain bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Vitus released this model in 2022, its price was 729$. Comparing the average cost of a Mountain bike to this one, you will see that Nucleus 24 Youth Hardtail price is 18.34% more expensive.
Mountain bikes average weight
Mountain bikes have an average weight of 11.4 kg (25.13 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 12 kg (26.46 lbs), the Nucleus 24 Youth Hardtail model is a bit heavier than average. In conclusion, the average Mountain bike weighs 5.26% less than Nucleus 24 Youth Hardtail.
Nucleus 24 Youth Hardtail components
Fork
The Nucleus 24 Youth Hardtail comes factory-installed with the Suntour XCR Air fork. This has a travel range of 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Nucleus 24 Youth Hardtail model has 24″ aluminum wheels. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nucleus 24 Youth Hardtail comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 124 cm – 154 cm (4.07 ft – 5.05 ft). In short, it won’t be difficult to find the right one for you.
