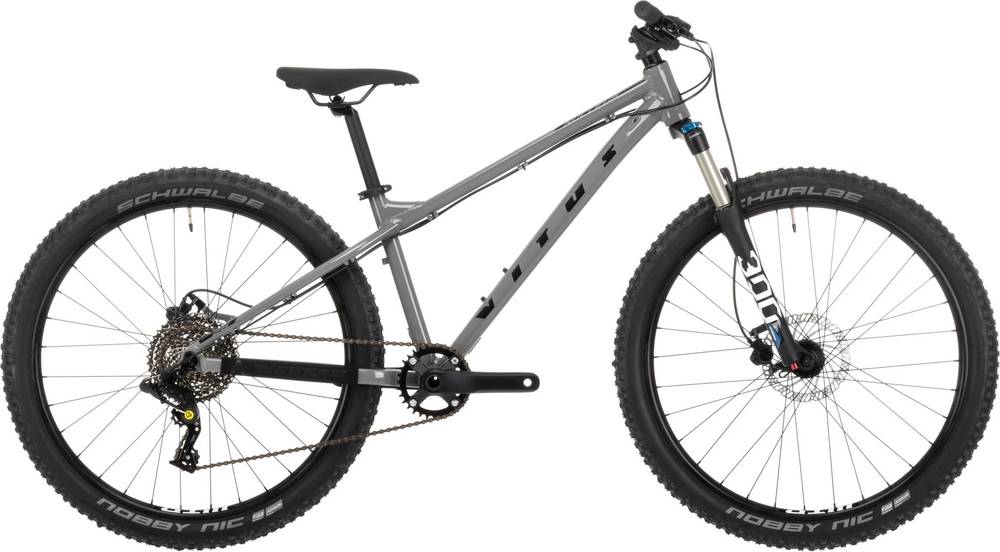

Vitus Nucleus 26 Youth Hardtail 2020
2020 Mountain
Estimate price |
708$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" / 24" -
Travel Front 100mm -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
124cm - 137cm
26"
134cm - 154cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nucleus Aluminium - 26" Wheel, BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR
Suspension Fork
Spinner 300 26" Air RLC, 100 mm travel, Post Mount, 100mm x 9mm QR, Lock-Out
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Box Four 8, 8 Speed Wide w/ Clutch
Front Derailleur
N/A, N/A
Shift Levers
Box Four 8 8 Speed Multi Shifter
Cassette
Sunrace CSM680, 11-40T, 8 Speed
Crank
Samox, 165mm Crank Arm, 32T Narrow Wide Ring, Reduced Q Factor
Bottom Bracket
Samox, BSA 24, 68mm
Chain
Box Four 8 8 Speed
Wheels
Front Hub
Vitus KT K08F, 28 Hole, 6 Bolt, 100mm x 9mm QR
Rear Hub
Vitus KT, K08R, 28 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed Freehub
Rims
WTB ST i25 TCS 2.0 26", 32 Hole, Disc Specific
Spokes
Vitus N/A
Tires
Schwalbe Nobby Nic, 26” x 2.25”, Performance, Addix
Brakes
Brakes
Tektro HD-M275, Hydraulic Disc, Reach Adjust
Disk Rotors
Tektro TR160, Front: 160mm, Rear: 160mm
Cockpit
Stem
Vitus Aluminium 6061 Aluminium, 40mm Length, +/- 3°
Handlebar
Vitus Aluminium 6061 Aluminium, 15mm Rise, 9° Back Sweep, 700mm wide
Grips
Vitus Lock On 110mm, Closed End
Headset
FSA No:11G Semi-Cartridge, 1.5mm Top Cover, Height 8.7mm
Seat
Saddle
Vitus kids N/A
Seatpost
Vitus 6061 alloy, 27.2mm x 250mm, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" | 26" |
|---|---|---|
| Stack Reach Ratio | 1.08 mm | 3.396 mm |
| Front Center | 444 mm | 461.5 mm |
| Rake | 30 mm | 45 mm |
| Stack | 307 mm | 323 mm |
| Reach | 283 mm | mm |
| Top Tube Length | 377.6 mm | 392.8 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° |
| Seat Tube Length | 210 mm | 226 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm |
| Chainstay Length | 243 mm | 294 mm |
| Wheelbase | 687 mm | 755 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 124 cm | 134 cm |
| Rider Max Height | 137 cm | 154 cm |
About this model
Nucleus 26 Youth Hardtail is a Vitus Nucleus model. Vitus launched 65 bikes of this model so far. Take a sneak peek at all Vitus Nucleus bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Vitus Nucleus 24 Youth 2020 has a starting price of 583$. Vitus Nucleus 27 VRS 2020 on the other hand is the most expensive at 789$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Vitus released this model in 2020, its price was 643$. If we compare this with the average Crosscountry bike cost we notice that the price is 196.27% smaller.
Nucleus 26 Youth Hardtail components
Wheels
When leaving the production line, the Nucleus 26 Youth Hardtail model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Nucleus 26 Youth Hardtail has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 2 sizes. They vary from 124 cm – 154 cm (4.07 ft – 5.05 ft). In conclusion, you won’t have a problem finding one that suits you.
