Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Altus, Suntour -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mechanical formed 6061-T6 aluminium
Suspension Fork
Suntour XCM LO, Coil Spring With Preload Adjustment And Lock Out Mode, 120mm
Drivetrain
Rear Derailleur
Shimano Acera SL-M310
Front Derailleur
Shimano FD-M190, 34.9mm Band
Shift Levers
Shimano Acera SL-M310, Rapid Fire Plus, 8-Speed
Cassette
Shimano, 11t-32t, 8-Speed
Crank
Suntour XCT-T312, 175mm, 42t x 32t x 22t
Bottom Bracket
Square taper (BSA)
Chain
KMC Z72, 8-Speed
Wheels
Front Hub
SRAM MTH-306 Disc, QR
Rear Hub
SRAM MTH-306 Disc, QR
Rims
Vitus Disc, Double Wall Alloy, Single Eyelets
Tires
WTB Bronson Comp, 26” x 2.1”
Brakes
Brakes
Tektro Novela Mechanical Disc, 160mm rotors
Cockpit
Stem
Vitus Alloy, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 664 mm | 685 mm | 706 mm |
| Rake | 39 mm | 39 mm | 39 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 564.48 mm | 573.75 mm | 583.03 mm |
| Reach | 398.5 mm | 415.67 mm | 432.84 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1085 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

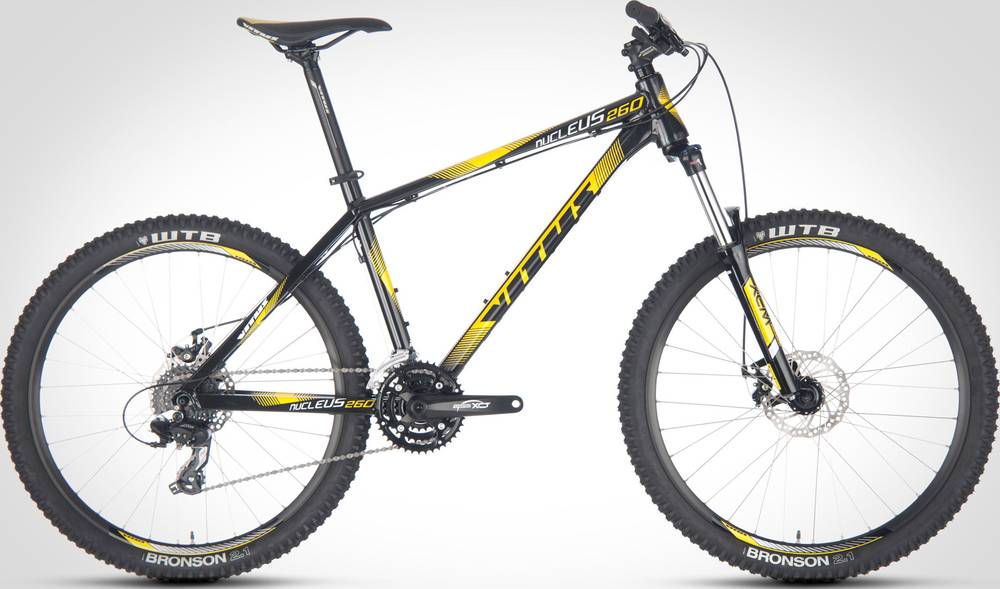

Nucleus 260 2014 belongs to the Vitus Nucleus model. There are 65 bikes that carry this model name. You can easily view all of the Vitus Nucleus bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Nucleus 260 2014 weighs 13.8 kg (30.42 lbs) and is a bit heavier than the average. To sum up, it’s 6.32% heavier than the average weight of Trail bikes.
Nucleus 260 2014 components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Nucleus 260 2014 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nucleus 260 2014 comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Vitus Nucleus 260 2014 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
