Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Deore, Suntour -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 152cm
MD
167cm - 152cm
LG
177cm - 182cm
XL
188cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6, long, slack & low modern geometry
Suspension Fork
120mm Suntour SF19 Raidon32 Air, Boost
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore M6000, 10 speed
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000, 1 x 10
Cassette
Shimano CS-HG500-10 11-42t, 10 speed
Crank
Suntour Zeron, 170mm, 32t
Bottom Bracket
Suntour, Threaded 73mm BSA
Chain
KMC X10EL, 10 speed
Wheels
Front Hub
KT, 32H, 110x15mm
Rear Hub
KT, 32H, 135x10mm
Rims
WTB ST i29
Spokes
N/A
Tires
Schwalbe Magic Mary (F) Nobby Nick (R), 27.5x2.35”, Addix Soft, SnakeSkin, TL-Easy (F) 27.5x2.35”, Addix 35B, Double Defence(R)
Brakes
Brakes
Shimano MT-400, 180mm rotor
Cockpit
Stem
Vitus, 50mm
Handlebar
Nukeproof Neutron, 31.8mm 25mm rise Widths - S 740mm M 760mm L 780mm XL 780mm
Headset
FSA, 1 1/8 - 1.5 tapered
Seat
Saddle
Vitus
Seatpost
Vitus, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 775 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 107 mm | 109 mm | 109 mm | 106 mm |
| Stack | 589 mm | 594 mm | 603 mm | 612 mm |
| Reach | 417 mm | 435 mm | 452 mm | 474 mm |
| Top Tube Length | 597 mm | 617 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1125 mm | 1143 mm | 1164 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 167 cm | 177 cm | 188 cm |
| Rider Max Height | 152 cm | 152 cm | 182 cm | 182 cm |

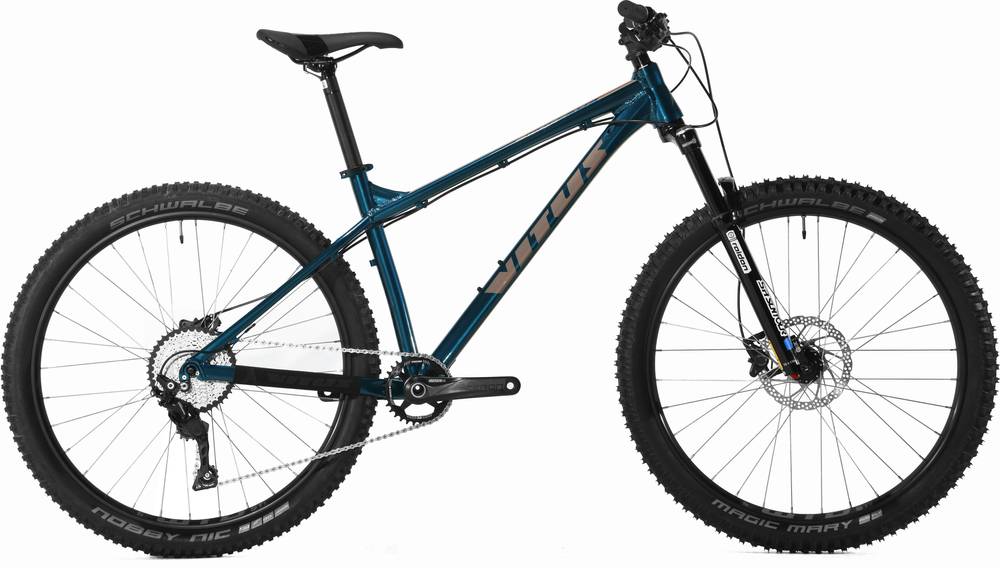

Model Overview
Nucleus 27 VRX is part of the Vitus Nucleus model. Vitus released 65 bikes variations of this model so far. You can easily view all of the Vitus Nucleus bikes models from 2019, here.
Model range prices
Vitus Nucleus 24 Kids 2019 is the most affordable bike of this model and has a price of 485$. On the other hand, Vitus Nucleus 27 VRX 2019, is the most expensive and costs 850$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 850$. Comparing the average cost of a Trail bike to this one, you will see that Nucleus 27 VRX price is 224.94% smaller.
Nucleus 27 VRX components
Fork
The Nucleus 27 VRX comes factory-installed with the SunTour RAIDON fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Nucleus 27 VRX bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Nucleus 27 VRX has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 157 cm – 182 cm (5.15 ft – 5.97 ft). In conclusion, finding one for you shouldn’t be a problem.
