Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR Air
-
Groupset Alivio, Suntour -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mechanical formed 6061-T6 aluminium
Suspension Fork
Suntour XCR Air LO-R-27.5, Tapered Alloy Steerer, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio RD-M430
Front Derailleur
Shimano Alivio FD-M430, 34.9mm Band
Shift Levers
Shimano Alivio SL-M430, Rapid Fire Plus, 8-Speed
Cassette
Shimano, 11t-32t, 9-Speed
Crank
Suntour XCM-T414, 175mm, 44t x 32t x 22t
Bottom Bracket
Square taper (BSA)
Chain
Shimano, 9-Speed
Wheels
Front Hub
SRAM MTH-306 Disc QR
Rear Hub
SRAM MTH-306 Disc QR
Rims
Vitus Disc, Double Wall Alloy, Single Eyelets
Tires
Continental X-King, 27.5” x 2.2”
Brakes
Brakes
Tektro HDC330 Hydraulic Disc, 165mm Rotors
Cockpit
Stem
Vitus Alloy, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.4 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 670 mm | 696 mm | 722 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 602.83 mm | 607.47 mm | 616.74 mm |
| Reach | 393.28 mm | 416.95 mm | 439.29 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1088 mm | 1114 mm | 1140 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

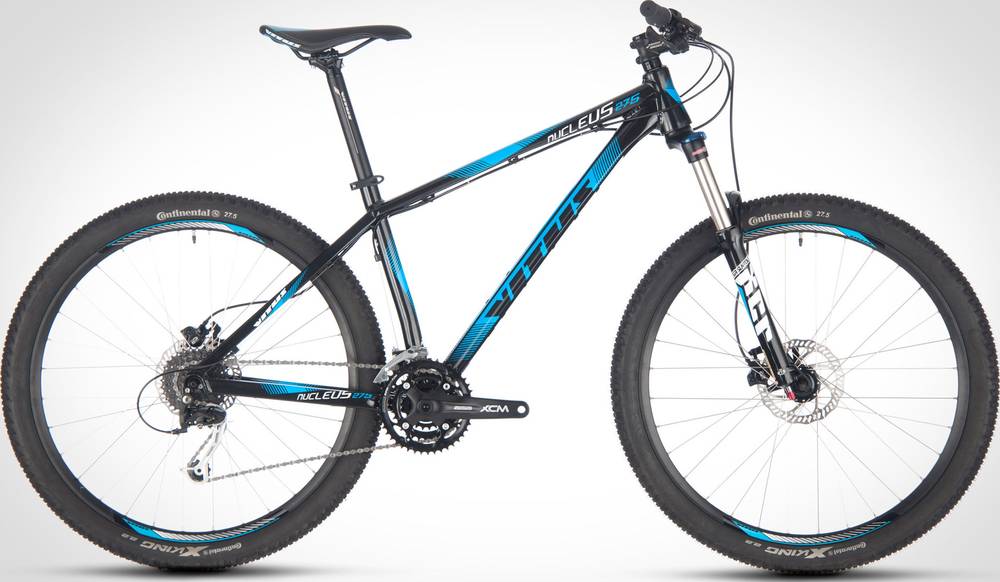

Model Overview
Nucleus 275 2014 is a Vitus Nucleus model. There are 65 bikes that carry this model name. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Vitus Nucleus 275 2014 it’s weighing 13.6 kg (29.98 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail bike weighs 4.78% less than Nucleus 275 2014.
Overview of components
Fork
The SunTour XCR Air is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Nucleus 275 2014 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Vitus Nucleus 275 2014 2014, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Vitus Nucleus 275 2014 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
