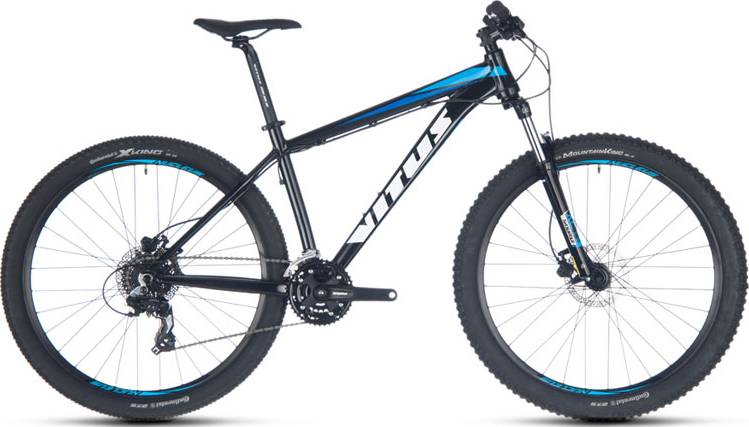

Vitus Nucleus 275 2015
2015 Mountain
Estimate price |
601$
Weight | 14.09 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Suntour -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 172cm
MD
169cm - 152cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mechanical formed 6061-T6 aluminium
Suspension Fork
Suntour XCT DS 27.5”, Coil Spring with Pre-Load Adjustment, 1.1/8” Steel Steerer, 100mm Travel, 9mm QR
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus RD-M280
Front Derailleur
Shimano FD-M190, 34.9mm Band
Shift Levers
Shimano SL-M310, Rapid Fire Plus, 8-Speed
Cassette
Shimano CS-HG31, 11t-32t, 8-Speed
Crank
Suntour XCC, 175mm, 42tx34tx24t
Bottom Bracket
Square taper
Chain
KMC Z72, 8-Speed
Wheels
Front Hub
SRAM MTH-306, QR
Rear Hub
SRAM MTH-306, QR
Rims
Jalco XCD, Alloy
Spokes
Stainless
Tires
Continental, Font: Mountain King 27.5" x 2.4", Rear: X-King 27.5" x 2.2
Brakes
Brakes
Tektro HD-M290, Hydraulic Disc Brake – 160mm Rotor
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 6 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 669 mm | 695 mm | 721 mm |
| Rake | 39 mm | 39 mm | 39 mm |
| Trail | 102 mm | 102 mm | 102 mm |
| Stack | 594.83 mm | 599.47 mm | 608.74 mm |
| Reach | 395.58 mm | 419.25 mm | 441.59 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1089 mm | 1114 mm | 1140 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 169 cm | 176 cm |
| Rider Max Height | 172 cm | 152 cm | 187 cm |
About this model
Nucleus 275 completes the Vitus Nucleus model. 65 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Vitus Nucleus 260 2015 is the most economical model, with a starting price of 485$. Vitus Nucleus 275VR 2015 on the other hand costs 729$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Vitus Nucleus 275 price was 546$. Comparing the average cost of a Crosscountry bike to this one, you will see that Nucleus 275 price is 248.9% smaller.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Nucleus 275 weighs 14.09 kg (31.06 lbs) and is considerably heavier than the average. In conclusion, the average Crosscountry bike weighs 13.63% less than Nucleus 275.
Overview of components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When leaving the production line, the Nucleus 275 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nucleus 275 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Vitus Nucleus 275 bike has 3 sizes, in the range of 152 cm – 187 cm (4.99 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
