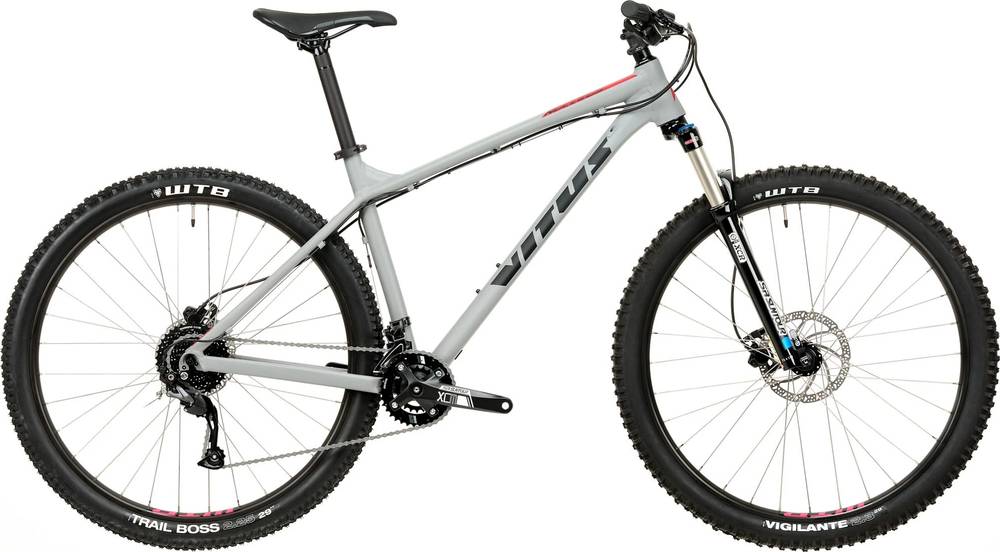

Vitus Nucleus 29 VR 2020
2020 Mountain
Estimate price |
735$
Weight | 14.56 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Altus, microSHIFT -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nucleus 29" hardtail frame, N/A
Suspension Fork
SUNTOUR XCR32 BOOST AIR 100mm, 29"
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
SHIMANO ALTUS, RD-M2000, SGS 9-SPEED, SHADOW DESIGN
Front Derailleur
MICROSHIFT MD-462B, Down-SWING, DUAL-PULL, FOR REAR 9-SPEED, BAND TYPE(34.9MM)
Shift Levers
SHIMANO ALTUS SL-M2000, 9-SPEED RAPIDFIRE PLUS
Cassette
SHIMANO ALTUS, CS-HG200-9, 9-SPEED, 11-36T
Crank
SUNTOUR XCM, 36Tx22Tx175mm
Bottom Bracket
Square Taper Cartridge Bottom Bracket, 73mm / 113.5mm
Chain
KMC Z9 EPT Anti Rust N/A
Wheels
Front Hub
VITUS MS6F BOOST 15mm x 110mm, 32H, 6-BOLT
Rear Hub
VITUS K68R, Standard spacing 135mm x10mm, 32H, 6-BOLT
Rims
WTB ST i30 TCS 2.0, 29", 30mm inner diameter, 32 hole, Pinned Joint
Spokes
14G STAINLESS DB BLACK BRASS NIPPLES
Tires
WTB Vigilante, 2.3" x 29" Comp tire w/High Grip Compound
Brakes
Brakes
TEKTRO HD-M290, WAVE STYLE ROTOR, ROTOR: 180mm
Cockpit
Stem
Vitus 50mm N/A
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M760mm, L780mm, XL800mm, 31.8mm bar diameter
Grips
VITUS Tapered, single composite clamp, sticky rubber
Headset
FSA NO.57B
Seat
Saddle
Nukeproof Neutron N/A
Seatpost
VITUS 31.6mm x 400mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 719 mm | 740 mm | 766 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm |
| Stack | 611 mm | 621 mm | 630 mm |
| Reach | 430.5 mm | 448 mm | 470 mm |
| Top Tube Length | 618 mm | 638 mm | 663 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1149 mm | 1170 mm | 1196 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 167 cm | 176 cm | 187 cm |
| Rider Max Height | 179 cm | 189 cm | 200 cm |
About this model
Nucleus 29 VR completes the Vitus Nucleus model. Vitus launched 65 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Vitus Nucleus 24 Youth 2020 has a starting price of 583$. Vitus Nucleus 27 VRS 2020 on the other hand is the most expensive at 789$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 668$. Comparing the average cost of a Crosscountry bike to this one, you will see that Nucleus 29 VR price is 185.18% smaller.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Vitus Nucleus 29 VR it’s weighing 14.56 kg (32.1 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 17.42% less than Nucleus 29 VR.
Overview of components
Fork
The SunTour XCR 32 Air is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Nucleus 29 VR are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nucleus 29 VR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 167 cm – 200 cm (5.48 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
