Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mechanical formed 6061-T6 aluminium
Suspension Fork
Suntour XCR 32 LO-R-Coil 29, Tapered Alloy Steerer, 100mm Travel
Drivetrain
Rear Derailleur
Shimano Acera RD-M390
Front Derailleur
Shimano Altus FD-M3716
Shift Levers
Shimano Acera SL-M390
Cassette
Shimano, 11t-32t, 9-Speed
Crank
Suntour XCM-T414, 175mm, 44t x 32t x 22t
Bottom Bracket
Square taper (BSA)
Chain
KMC Z99, 9-Speed
Wheels
Front Hub
SRAM MTH-306 Disc QR
Rear Hub
SRAM MTH-306 Disc QR
Rims
Vitus Disc, Double Wall Alloy, Single Eyelets
Tires
WTB Bronson Comp, 29” x 2.2” DRIVETRAIN
Brakes
Brakes
Tektro HDC330 Hydraulic Disc, 160mm Rotors
Cockpit
Stem
Vitus Alloy, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Flat Bar, 6061 Double Butted Alloy, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 662 mm | 681 mm | 698 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 616.92 mm | 621.62 mm | 631.01 mm |
| Reach | 404.24 mm | 420.9 mm | 435.2 mm |
| Top Tube Length | 582 mm | 600 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1091 mm | 1109 mm | 1127 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

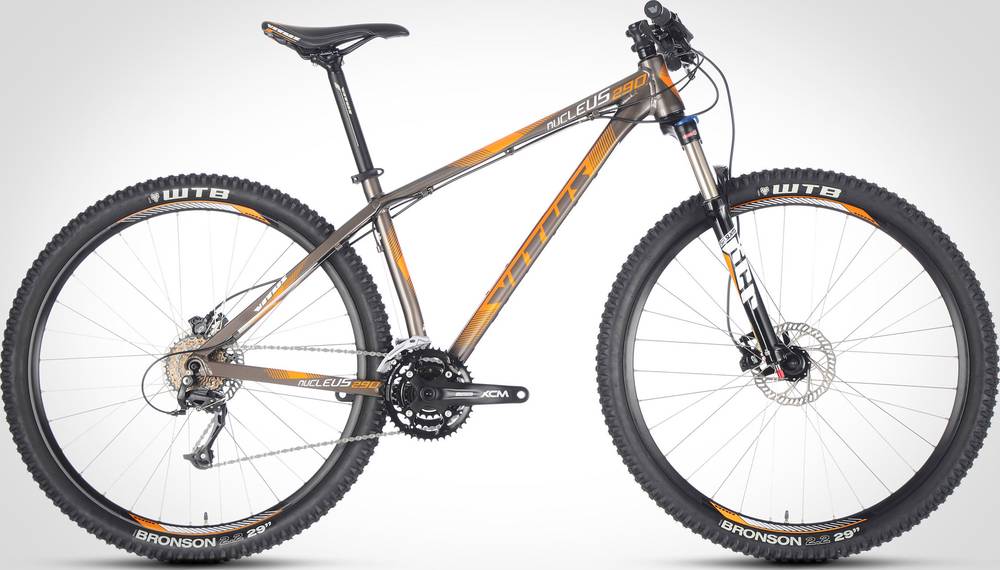

Nucleus 290 2014 belongs to the Vitus Nucleus model. Vitus launched 65 bikes of this model so far. You can easily view all of the Vitus Nucleus bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, Nucleus 290 2014 has a weight of 13.9 kg (30.64 lbs). In conclusion, the average Crosscountry bike weighs 12.1% less than Nucleus 290 2014.
Overview of components
Fork
The SunTour XCR 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Nucleus 290 2014 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Nucleus 290 2014 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Vitus Nucleus 290 2014 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
