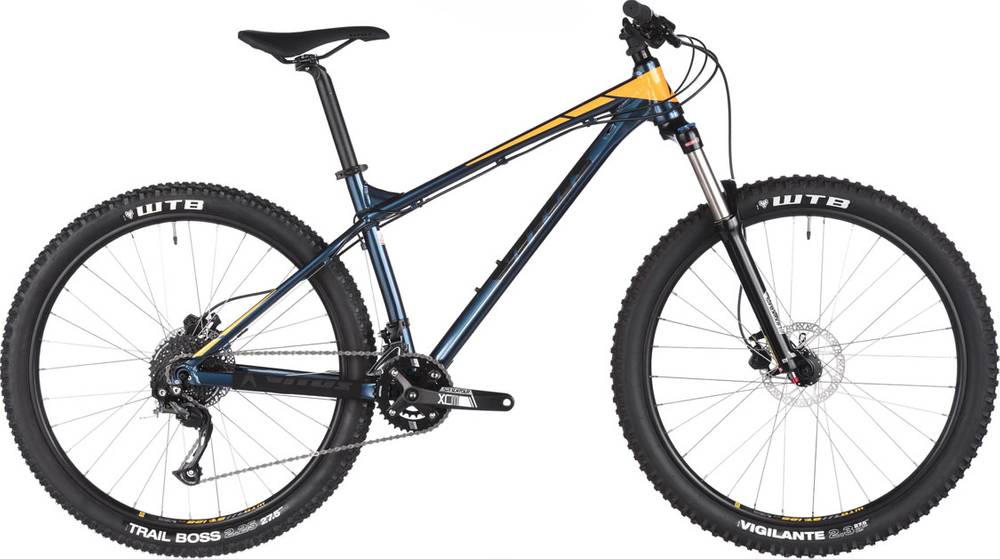

Vitus Nucleus VR 2018
2018 Mountain
Estimate price |
668$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR Air
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 152cm
MD
167cm - 152cm
LG
177cm - 182cm
XL
188cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Alloy, Mechanicaly formed 6061-T6 Alloy, 135mm QR
Suspension Fork
Suntour XCR Air, Air, 120mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus, 9 speed
Front Derailleur
Shimano M462B, 2x Band on
Shift Levers
Shimano Altus, 2x9
Cassette
Shimano HG-200, 9 speed 11-36t
Crank
Suntour, 36x22t, 175mm
Bottom Bracket
Suntour, Square taper 118mm
Chain
KMC Z99, 9 speed
Wheels
Front Hub
KT, 100mm QR, 32h
Rear Hub
KT, 135mm QR, 32h
Rims
WTB, TCS, 27.5
Spokes
Double butted
Tires
WTB Vigilante 2.3 (FR) WTB Trail Boss 2.25 (RR), 27.5"
Brakes
Brakes
TEKTRO M290, 160mm
Cockpit
Stem
Vitus alloy, 50mm
Handlebar
Vitus alloy, 740mm
Headset
FSA, 1 1/8
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 31.6mm, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 775 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 107 mm | 109 mm | 109 mm | 106 mm |
| Stack | 589 mm | 594 mm | 603 mm | 612 mm |
| Reach | 417 mm | 435 mm | 452 mm | 474 mm |
| Top Tube Length | 597 mm | 617 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1125 mm | 1143 mm | 1164 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 167 cm | 177 cm | 188 cm |
| Rider Max Height | 152 cm | 152 cm | 182 cm | 182 cm |
About this model
Nucleus VR completes the Vitus Nucleus model. 65 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Vitus Nucleus V 2018 has a starting price of 485$. Vitus Nucleus VRX 2018 on the other hand is the most expensive at 850$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 607$. Doing a quick comparison, we notice that Nucleus VR price is 355.02% lower than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Nucleus VR has a weight of 13.9 kg (30.64 lbs). To sum up, it’s 7.09% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the SunTour XCR Air fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Nucleus VR 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 182 cm (5.15 ft – 5.97 ft). In conclusion, finding one for you shouldn’t be a problem.
