Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T700 High-modulus HM-UD Carbon, With DT Swiss RWS X-12 Rear Axle
Suspension Fork
RockShox Reba RL 27.5 Solo Air, Tapered Alloy Steerer, 100mm Travel, 15mm Maxle Lite
Drivetrain
Rear Derailleur
Shimano XT RD-M786, Shadow Plus
Front Derailleur
Shimano XT FD-M786, 34.9mm Band
Shift Levers
Shimano XT SL-M780, Rapid Fire Plus
Cassette
Shimano, 11t-34t, 10-Speed
Crank
FSA Afterburner BB30, 175mm, 38t x 24t
Bottom Bracket
FSA Press Fit 30 (PF30)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Easton EA70 XL Disc, 6 Bolt, 100mm x 15mm
Rear Hub
Easton EA70 XL Disc, 6 Bolt, 142mm x 12mm
Rims
Easton EA70 XL, 27.5”
Tires
Continental X-King, 27.5” x 2.2”
Brakes
Brakes
Shimano SLX BR-M675 Hydraulic Disc, 180mm Rotors
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/-7 Degree Rise
Handlebar
Vitus Flat Bar, 6061 Double Butted Alloy, 720mm Wide
Headset
FSA Orbit C-42/48, (No.42/48/ACB), 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.41 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 625 mm | 650 | 676 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 570.26 mm | 579.63 mm | 593.67 mm |
| Reach | 377.2 mm | 399.32 mm | 420 mm |
| Top Tube Length | 558.7 mm | 583.8 mm | 609 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1045 mm | 1071 mm | 1097 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

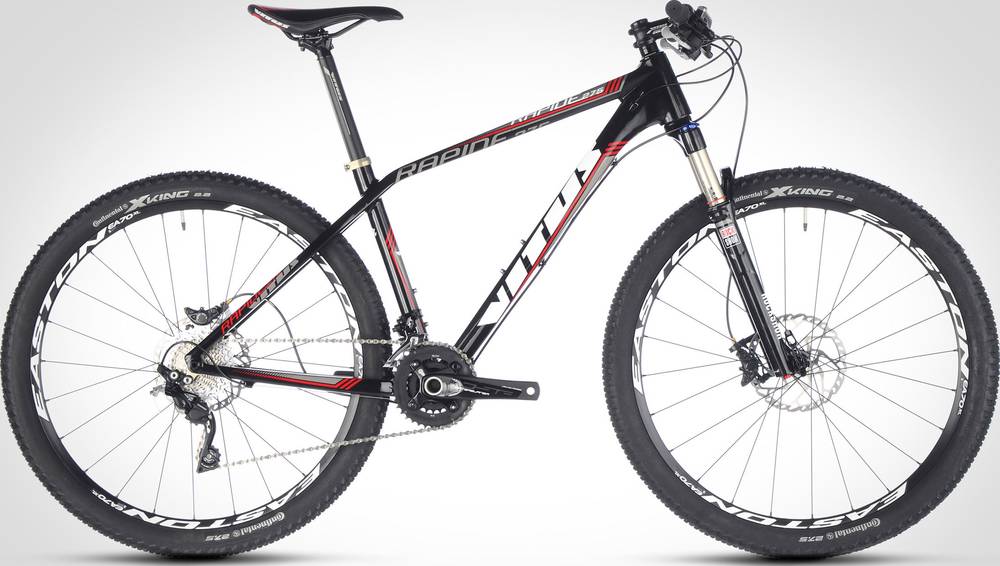

Rapide 275 2014 belongs to the Vitus Rapide model. There are 45 bikes that carry this model name. You can easily view all of the Vitus Rapide bikes models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably lighter than average, Rapide 275 2014 has a weight of 11.1 kg (24.47 lbs). In short, the average Crosscountry bike weight is 11.71% higher than this one.
Rapide 275 2014 components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Rapide 275 2014 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Rapide 275 2014 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Rapide 275 2014 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
