Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T700 High-modulus HM-UD Carbon
Suspension Fork
RockShox Reba RL 29 Solo Air, Tapered Alloy Steerer, 100mm Travel, 15mm Maxle Lite
Drivetrain
Rear Derailleur
Shimano XT RD-M786, Shadow Plus
Front Derailleur
Shimano XT FD-M786, 34.9mm Band
Shift Levers
Shimano XT SL-M780, Rapid Fire Plus
Cassette
Shimano, 11t-34t, 10-Speed
Crank
FSA Afterburner BB30, 175mm, 38t x 24t
Bottom Bracket
FSA Press Fit 30 (PF30)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Easton EA70 XL Disc, 6 Bolt, 100mm x 15mm
Rear Hub
Easton EA70 XL Disc, 6 Bolt, 135mm x QR Rear
Rims
Easton EA70 XL, XL 29”
Tires
Continental X-King, 29” x 2.2”
Brakes
Brakes
Shimano SLX BR-M675 Hydraulic Disc, 180mm Rotors
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/-7 Degree Rise
Handlebar
Vitus Flat Bar, 6061 Double Butted Alloy, 720mm Wide
Headset
FSA Orbit C-42/48, (No.42/48/ACB), 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm | 1.4 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 639 mm | 656 mm | 675 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 75 mm | 79 mm | 75 mm |
| Stack | 600.82 mm | 615.58 mm | 615.09 mm |
| Reach | 406.31 mm | 421.55 mm | 437.82 mm |
| Top Tube Length | 570.4 mm | 597 mm | 616 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393.7 mm | 438 mm | 482.6 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1064 mm | 1081 mm | 1100 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

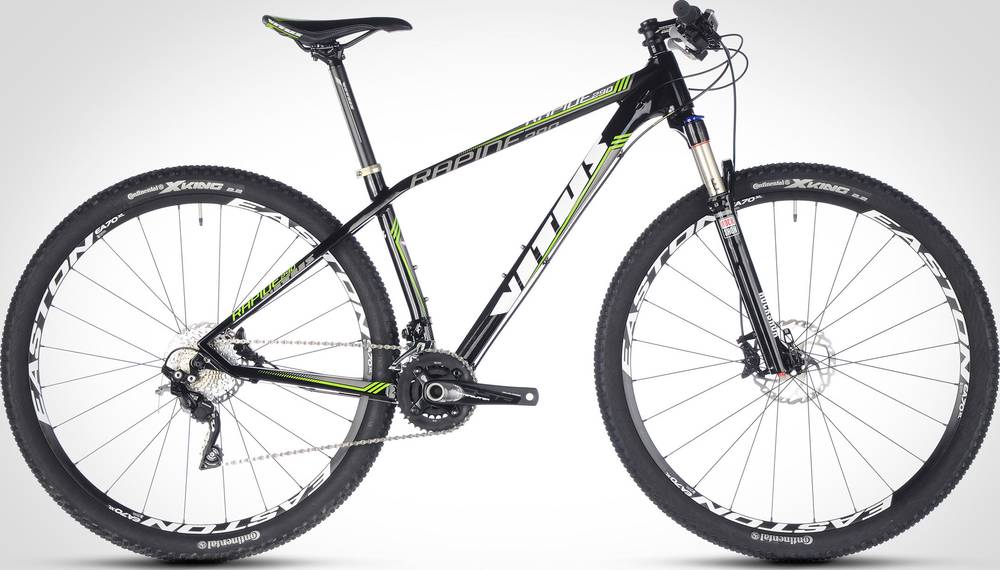

Model Overview
Rapide 290 2014 completes the Vitus Rapide model. Vitus launched 45 bikes of this model so far. You can easily view all of the Vitus Rapide bikes models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Vitus Rapide 290 2014 it’s weighing 11.1 kg (24.47 lbs). At this weight, is considerably lighter than average. To sum up, it’s 11.71% lighter than the average weight of Crosscountry bikes.
Rapide 290 2014 components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Rapide 290 2014 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rapide 290 2014 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
