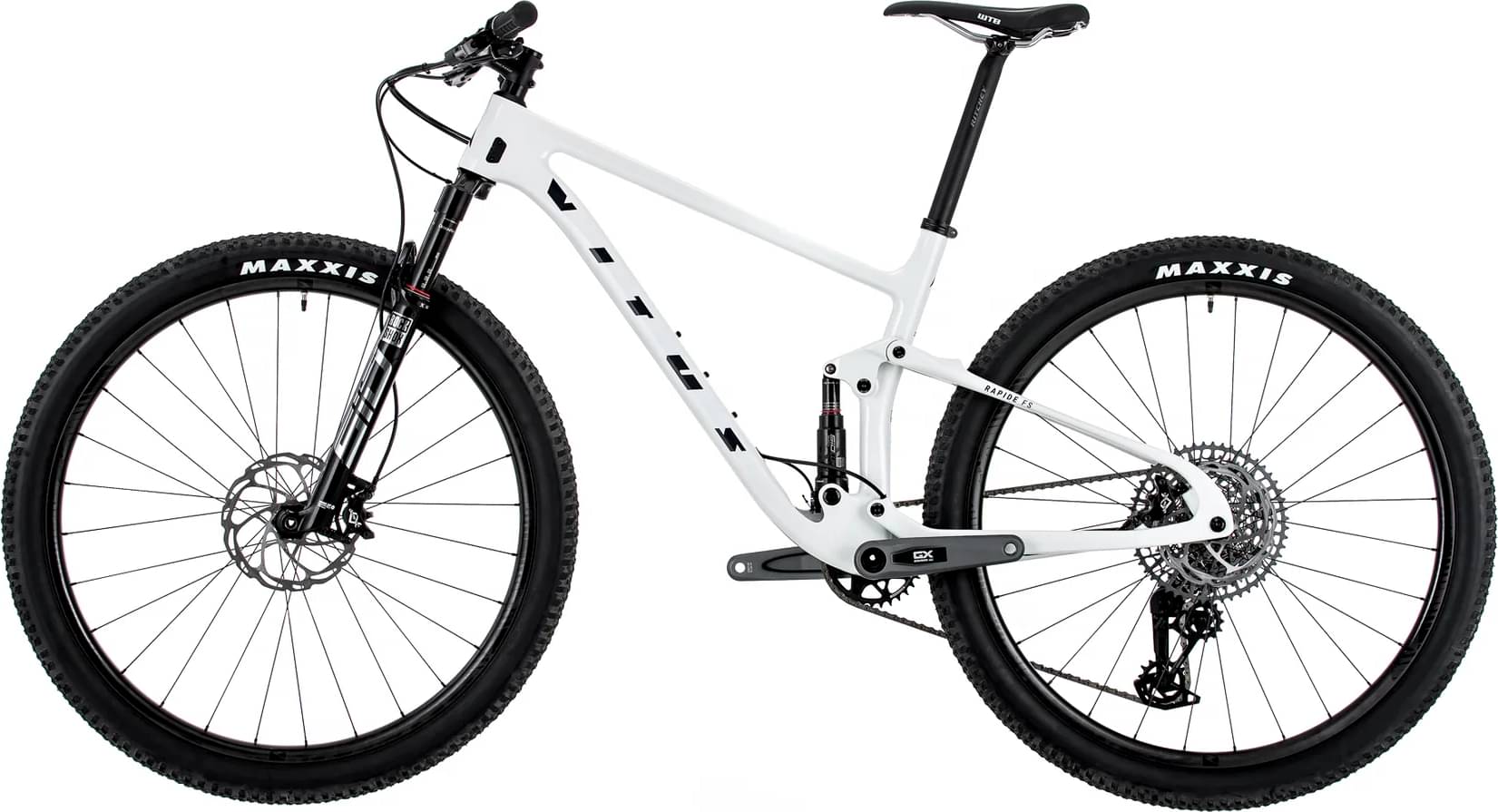

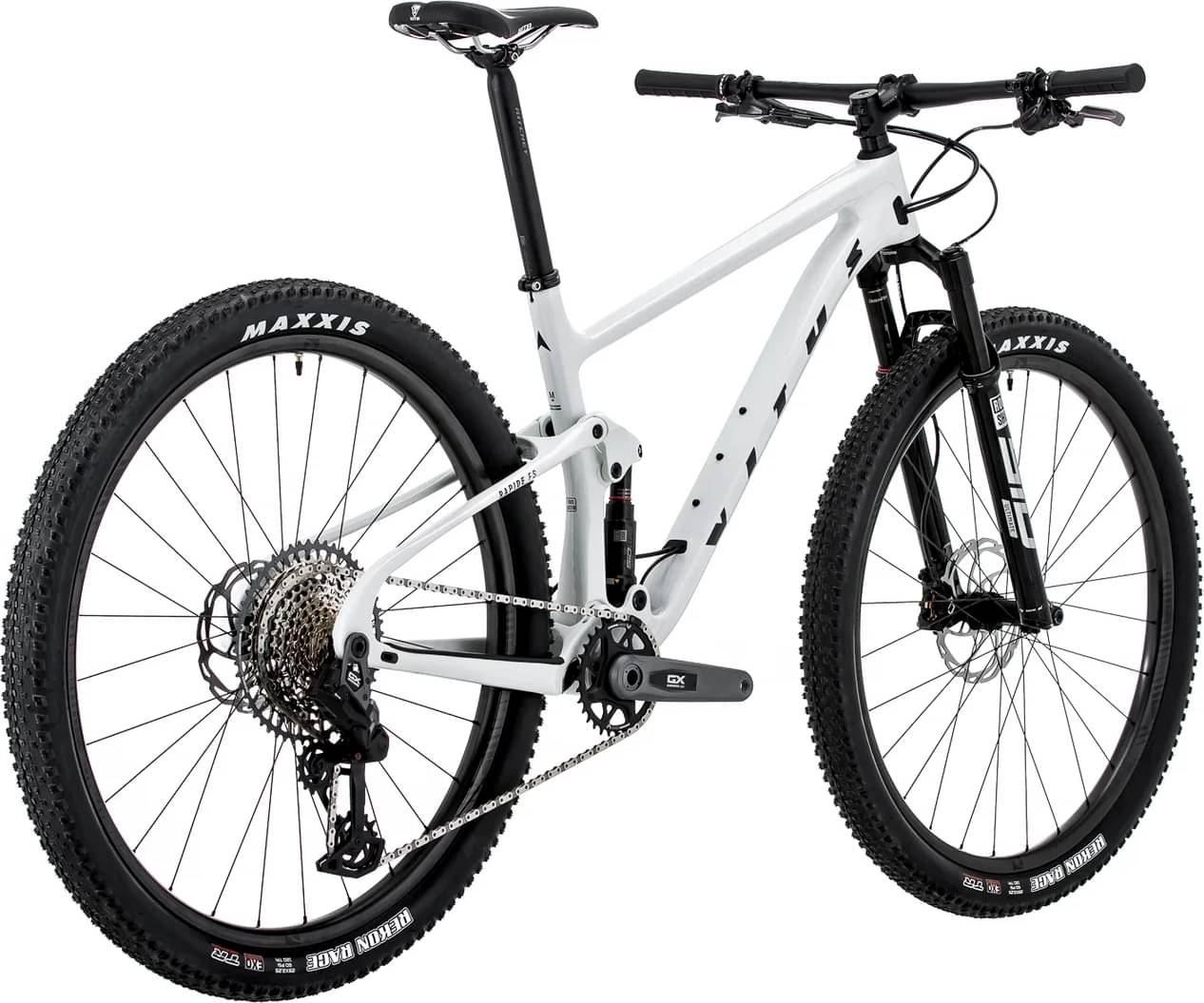

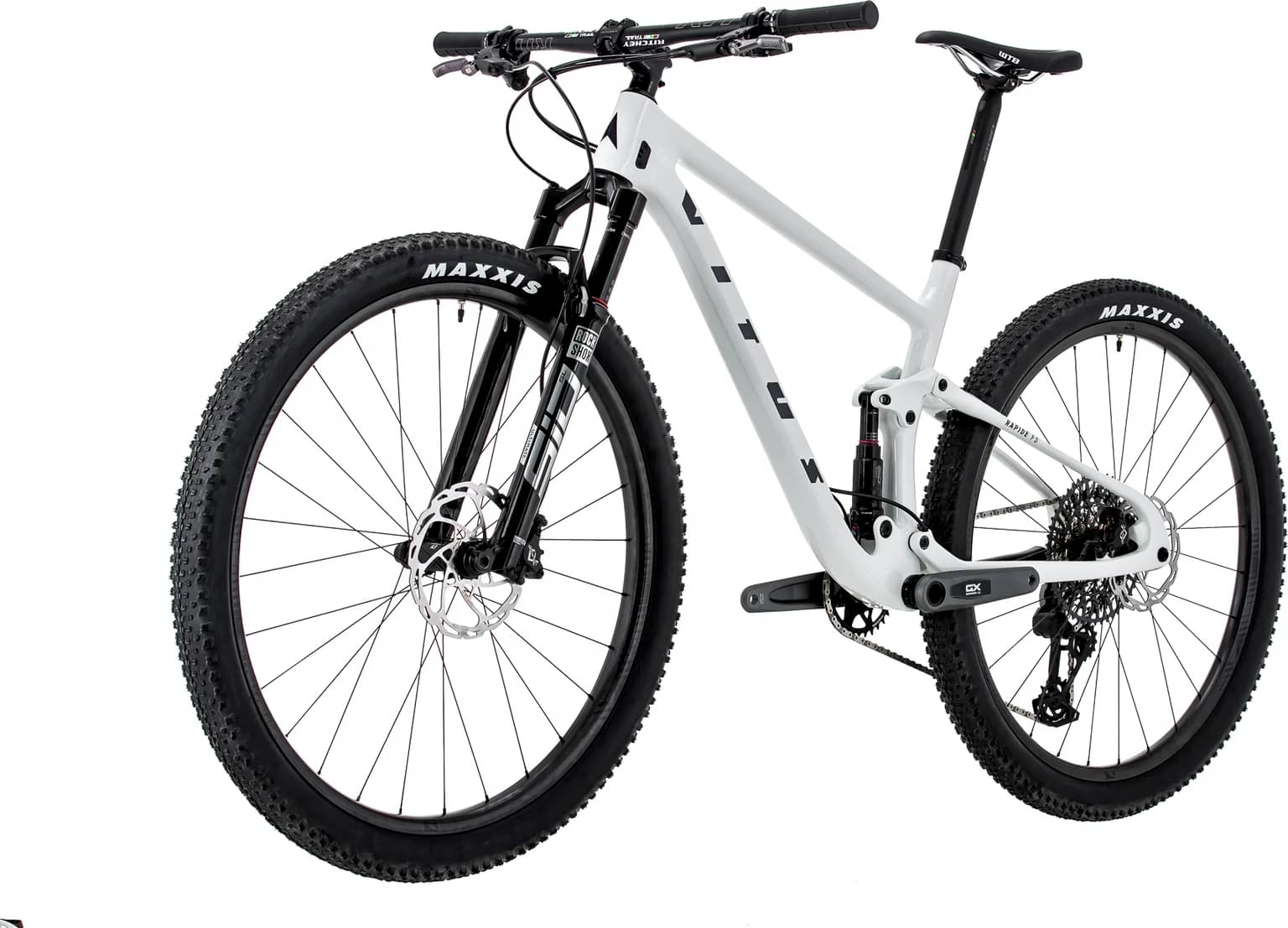

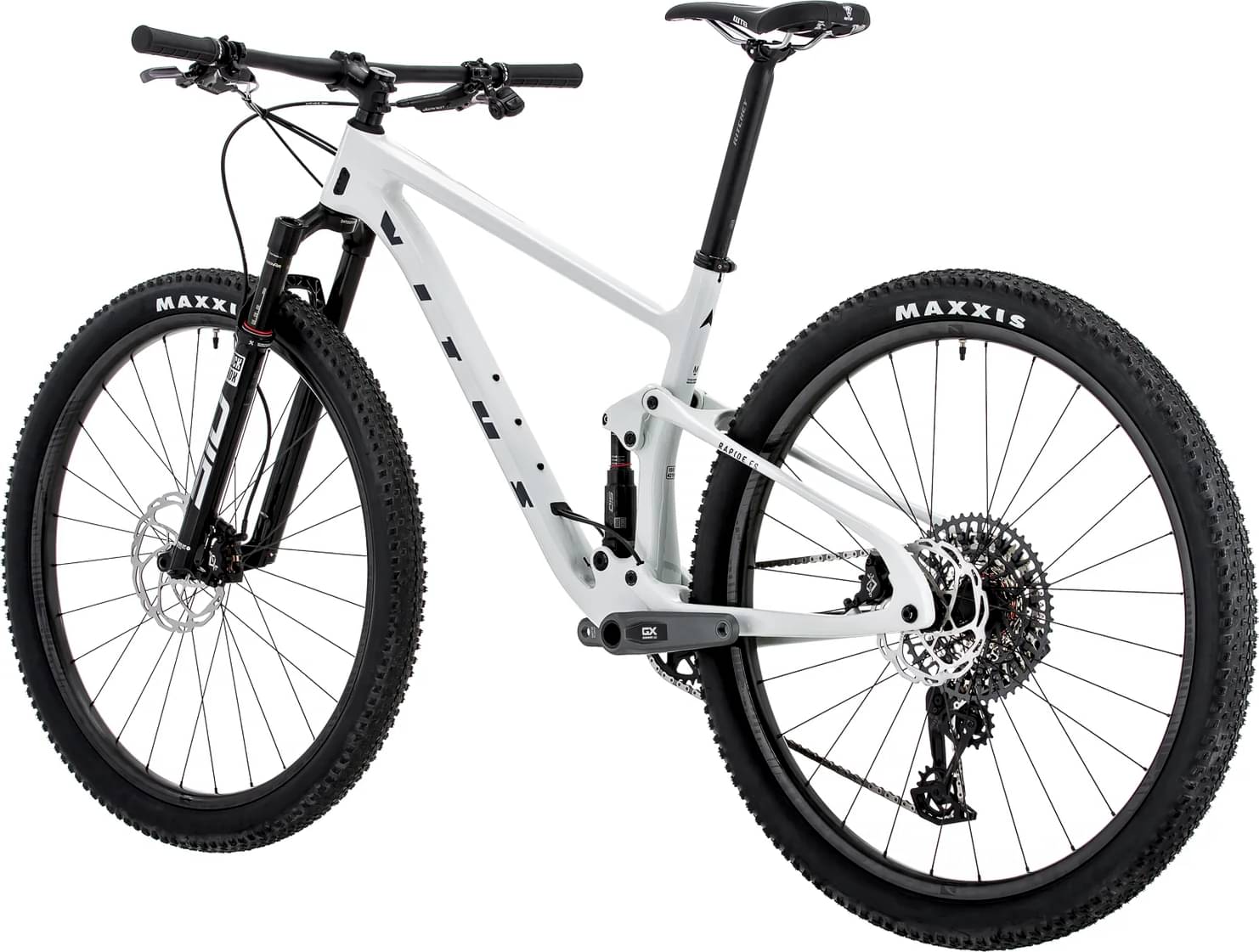

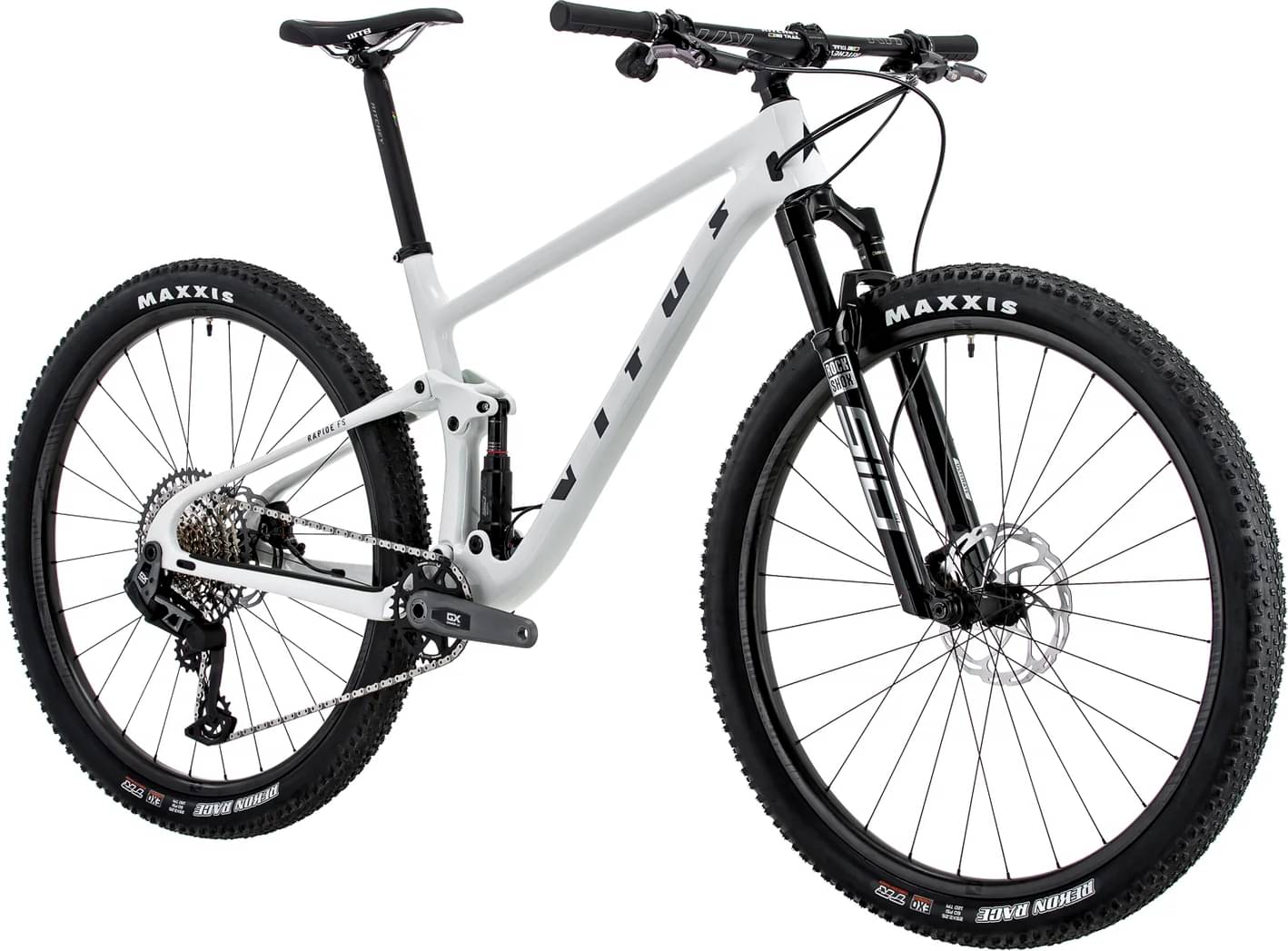

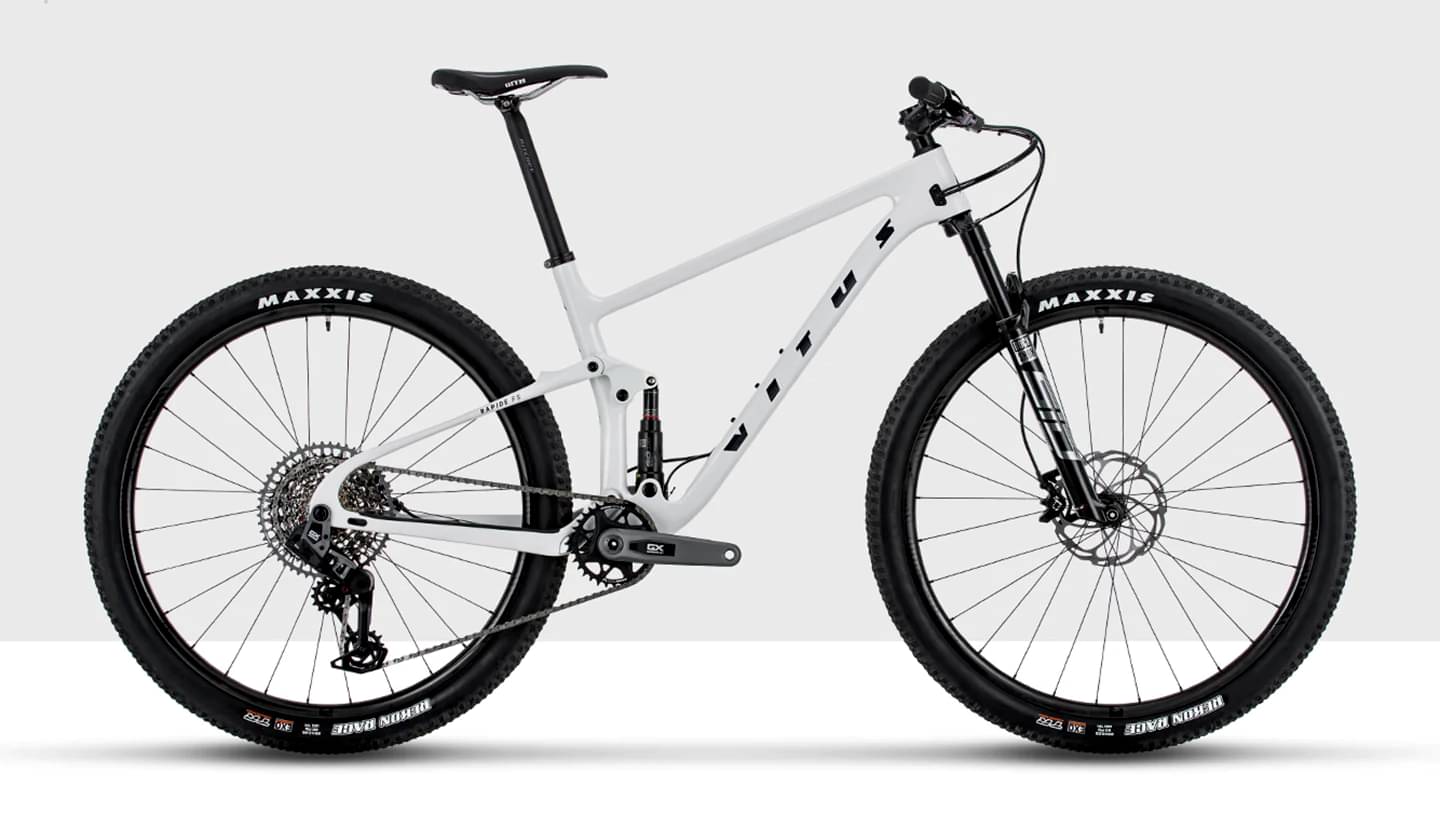

Vitus Rapide FS CRX (Sram) 2023
2023 Mountain
Estimate price |
4,599$
Weight | 11.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapide FS UD Carbon Full Suspension Frame, Post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 181mm Length, 20mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
RockShox SID SL Ultimate 29”, 100mm travel, Remote Lockout, DebonAir, Charger Race Day Damper, 32mm stanchions, tapered alloy steerer, Boost hub spacing – 110mm x 15mm Maxle Stealth axle, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+, Remote Lockout, trunnion mount, DebonAir, 165mm x 40mm
Drivetrain
Rear Derailleur

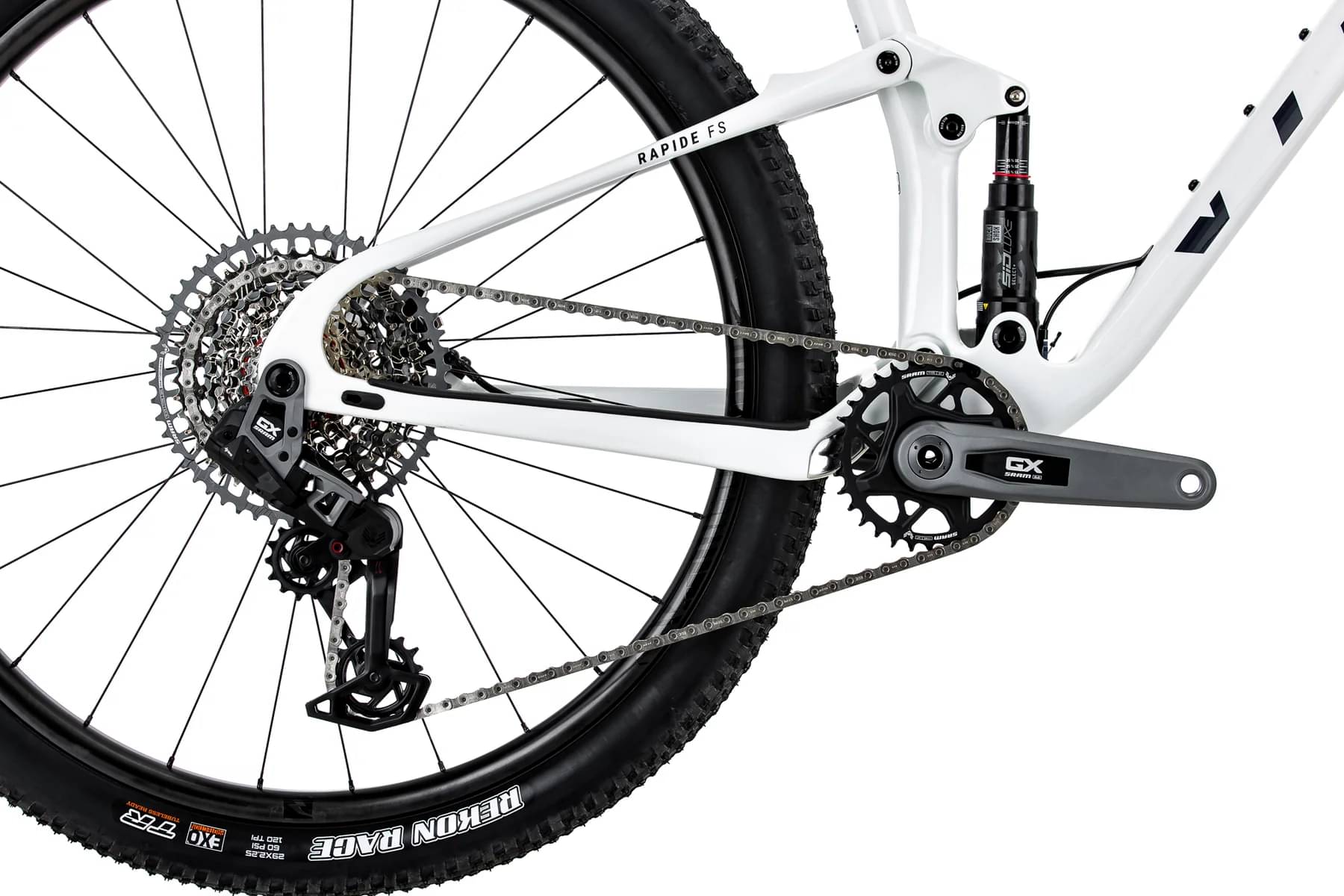

SRAM GX Eagle T-Type AXS, 12-speed, Wireless Electronic, Long Cage
Shift Levers
SRAM AXS Pod Controller, 12-speed, Wireless Electronic, MMX Clamp
Cassette
SRAM GX Eagle T-Type, 12-speed, 10-52T Range
Crank

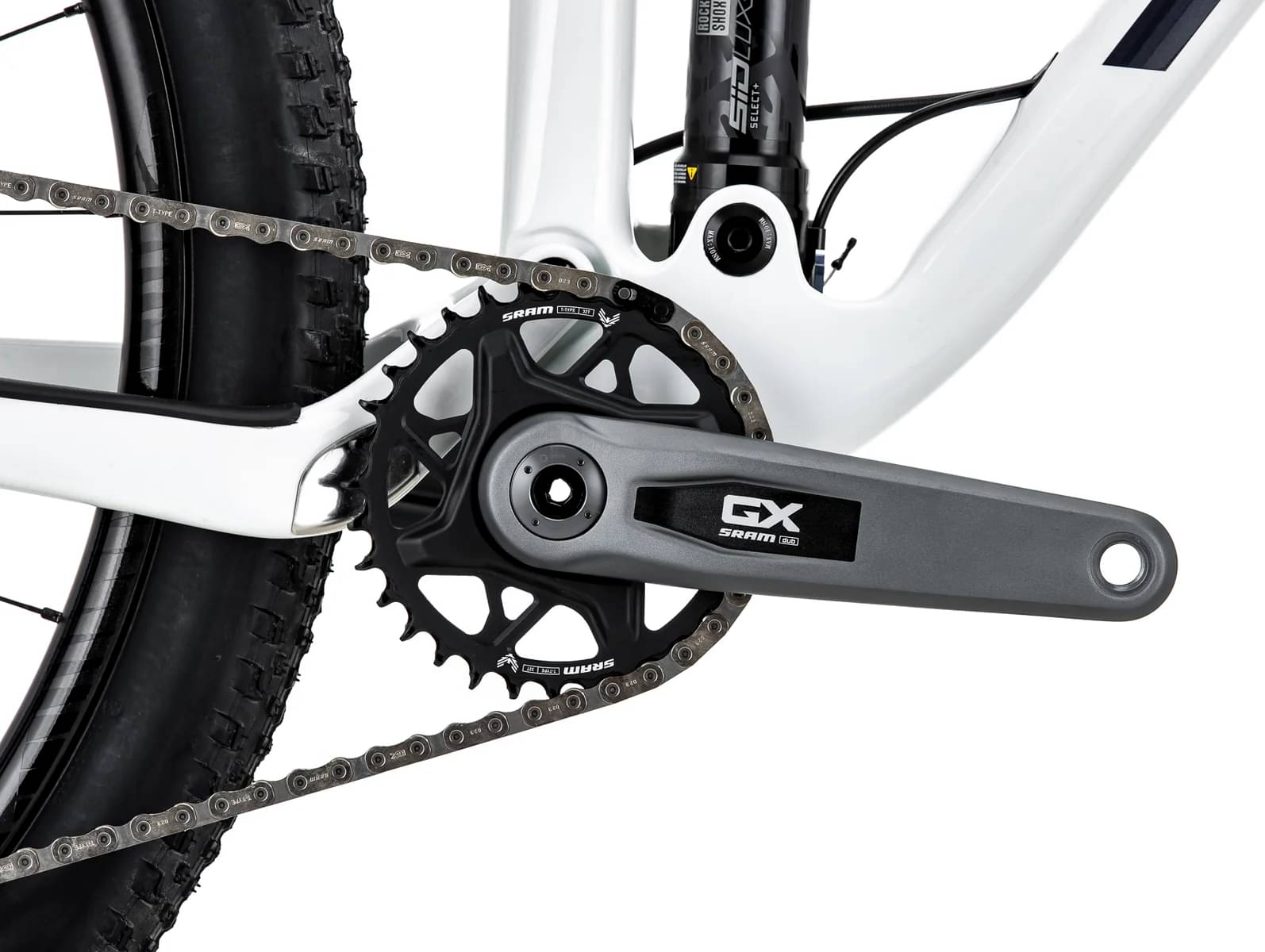

SRAM GX Eagle T-Type, 12-speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM GX T-Type, 12-speed, 118 Links
Wheels
Rims
Front: Reynolds TR 309 XC Carbon, 29", 25mm Inner Rim Width, Presta Valve, Tubeless Ready Rim Tape Installed, Rear: Reynolds TR 289 XC Carbon, 29", 28mm Inner Rim Width, Presta Valve, Tubeless Ready Rim Tape Installed, XD Freehub
Tires
Front: Maxxis Rekon Race, 29" x 2.25", EXO casing, Rear: Maxxis Rekon Race, 29" x 2.25", EXO casing
Brakes
Brakes
Hayes Dominion A2, Post Mount, Two Piston Caliper
Cockpit
Stem
Ritchey WCS C220 84D, Forged 2014 Alloy, Reach - S: 70mm, M:80mm, L:90mm, XL: 100mm, 31.8mm Handlebar Clamp Diameter, +/-6° Rise
Handlebar
Ritchey MTN WCS 2X Trail Flat Bar, 7050 Alloy, 5mm rise, 9° back sweep, S: 720mm wide, M: 740mm, L & XL: 760mm wide
Grips
Vitus Lock On
Headset
Acros AiX-322 R3, IS41.8/28.6 upper & IS52/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
WTB SL8 Comp, 142mm wide, Black, CrMo Rails
Seatpost
Ritchey WCS Zero, 3D forged 7050 alloy, zero offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.25 mm | 1.22 mm | 1.2 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 725 mm | 759 mm | 790 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 576 mm | 585 mm | 599 mm | 617 mm |
| Reach | 438 mm | 468 mm | 493 mm | 513 mm |
| Top Tube Length | 571 mm | 605 mm | 633 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1152 mm | 1186 mm | 1217 mm | 1244 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 201 cm |
Model Overview
Rapide FS CRX (Sram) is part of the Vitus Rapide model. 45 bikes variations carry this model name so far. You can easily view all of the Vitus Rapide bikes models from 2023, here.
Model range prices
Vitus Rapide FS CRS 2023 is the most affordable bike of this model and has a price of 3199$. On the other hand, Vitus Rapide FS CRX (Sram) 2023, is the most expensive and costs 4599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Vitus Rapide FS CRX (Sram) price was 4599$. In conclusion, this bike price is 141.42% higher than the price of the average Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Rapide FS CRX (Sram) has a weight of 11.39 kg (25.11 lbs). In other words, this model is 8.87% lighter than the average Crosscountry bike.
Rapide FS CRX (Sram) components
Fork
The Rapide FS CRX (Sram) comes factory-installed with the RockShox SID SL Ultimate fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Rapide FS CRX (Sram) bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rapide FS CRX (Sram) comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 153 cm – 201 cm (5.02 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
