Bike details
Overview
Key information split into simple groups.

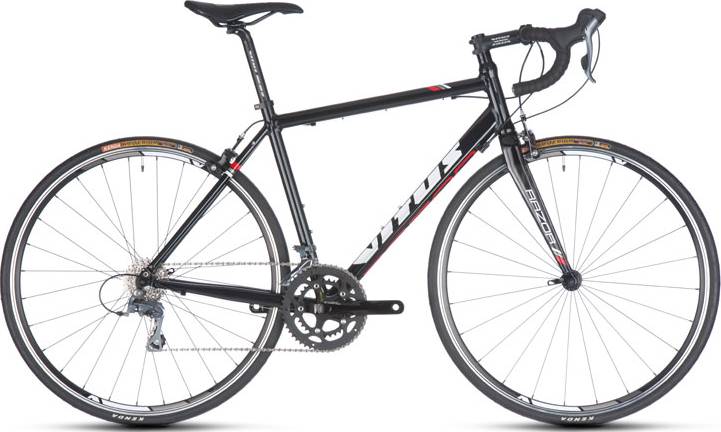

Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 1 -
Brakes Rim
Sizing
Recommended size guide.
50cm
160cm - 165cm
52cm
165cm - 170cm
54cm
170cm - 175cm
56cm
175cm - 152cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Alloy
Suspension Fork
High-modulus T700 HM-UD carbon, Alloy steerer
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Claris 2400
Front Derailleur
Shimano Claris 2400, 31.8mm band
Shift Levers
Shimano Claris 2400, 8-speed
Cassette
Shimano Shimano HG300, 8-speed, 11t-28t
Crank
Shimano Claris 2450, 50tx34t
Bottom Bracket
Shimano Octalink, (BSA)
Chain
Shimano HG40, 8-speed
Wheels
Front Hub
Vitus alloy, 100mm, QR
Rear Hub
Vitus alloy, 130mm, QR
Rims
Vitus alloy
Spokes
Stainless
Tires
Kenda, 700c x 25c
Brakes
Brakes
Dual pivot, Long reach
Cockpit
Stem
Vitus, 3D forged 6061-T6 aluminium, + / - 6 degree rise
Handlebar
Vitus compact, 6061 Alloy
Headset
Token TK410M, Integrated, 1.1/8”
Seat
Saddle
Vitus
Seatpost
Vitus, 6061-T6 alloy, 15mm offset, 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.48 mm | 1.5 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 3262 mm | 3260 mm | 3251 mm | 3245 mm | 3223 mm | 3213 mm |
| Rake | -3607 mm | -3617 mm | -3617 mm | -3617 mm | -3617 mm | -3617 mm |
| Trail | 3889 mm | 3886 mm | 3886 mm | 3886 mm | 3886 mm | 3886 mm |
| Stack | 527.1 mm | 543 mm | 552.6 mm | 562.1 mm | 576.5 mm | 595.6 mm |
| Reach | 364.6 mm | 366.9 mm | 373 mm | 375.7 mm | 393.3 mm | 397.5 mm |
| Seat Tube Angle | 74.3 ° | 73.8 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 155 mm | 165 mm | 180 mm | 200 mm |
| Wheelbase | 980 mm | 982 mm | 991 mm | 997 mm | 1019 mm | 1029 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm | cm | cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 152 cm | cm | cm |
Model Overview
Razor is part of the Vitus Razor model. Vitus launched 58 bikes of this model so far. You can easily view all of the Vitus Razor bikes models from 2015, here.
Model range prices
Vitus Razor 2015 is the most economical model, with a starting price of 668$. Vitus Razor VRS 2015 on the other hand costs 911$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2015 and its price was 668$. In conclusion, this bike price is 251.2% smaller than the price of the average Endurance bike.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Razor weighs 9.61 kg (21.19 lbs) and is much heavier than the average. In short, the average Endurance bike weight is 17.2% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Razor bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Razor has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
