Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium, Mechanical Formed Triple Butted 6061-T6
Suspension Fork
Suntour XCR Air LO-R-27.5, Tapered Alloy Steerer, 120mm Travel, 9mm QR
Drivetrain
Rear Derailleur
Shimano Deore RD-M615 Shadow Plus
Front Derailleur
Shimano Deore FD-M616, 34.9mm Band
Shift Levers
Shimano Deore SL-M610 Rapid Fire Plus, Rapid Fire Plus, 8-Speed
Cassette
Shimano, 11t-36t, 10-Speed
Crank
FSA Gamma Drive MegaExo, 175mm, 36t x 24t
Bottom Bracket
FSA MegaExo (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Shimano WH-MT35-27.5, Centrelock Disc, QR
Rear Hub
Shimano WH-MT35-27.5, Centrelock Disc, QR
Rims
Shimano WH-MT35-27.5
Tires
Continental X-King, 27.5” x 2.4” Front / 27.5” x 2.2” Rear
Brakes
Brakes
Shimano M395 Hydraulic Disc, 180mm Centrelock Rotors
Cockpit
Stem
Vitus Alloy, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.4 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 670 mm | 696 mm | 722 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 602.83 mm | 607.47 mm | 616.74 mm |
| Reach | 393.28 mm | 416.95 mm | 439.29 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1088 mm | 1114 mm | 1140 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

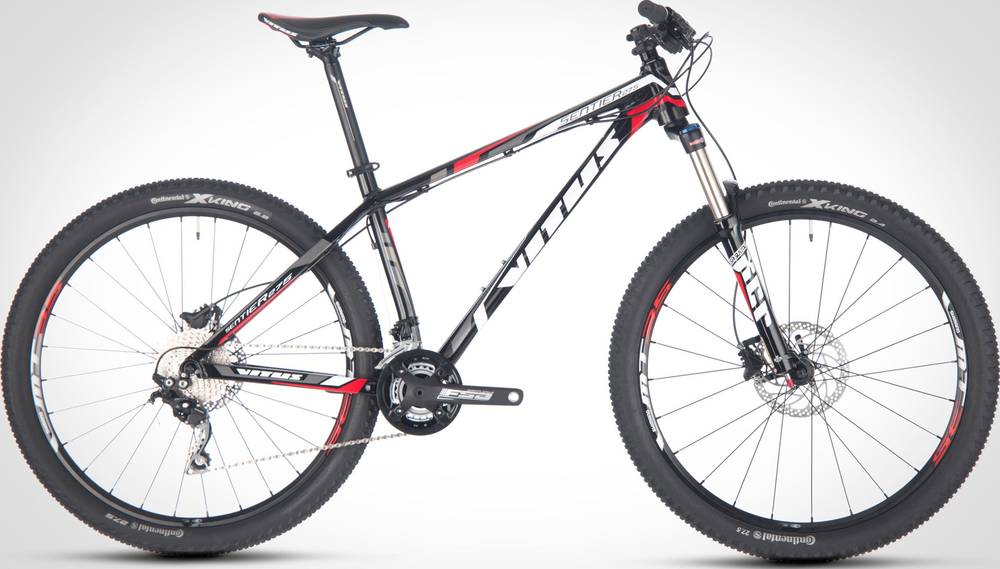

Model Overview
Sentier 275 2014 is part of the Vitus Sentier model. There are 75 bikes that carry this model name. Take a sneak peek at all Vitus Sentier bikes models from 2014, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Vitus Sentier 275 2014 it’s weighing 13.2 kg (29.1 lbs). At this weight, is slightly heavier than average. In short, the average Trail bike weight is 1.69% lower than this one.
Overview of components
Fork
Vitus Sentier 275 2014 2014 bike is equipped with the SunTour XCR Air fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Sentier 275 2014 2014 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sentier 275 2014 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
