Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium, Mechanical Formed Triple Butted 6061-T6
Suspension Fork
Suntour Raidon XC LO-R Air, Tapered Alloy Steerer, 120mm Travel, 9mm QR
Drivetrain
Rear Derailleur
Shimano XT RD-M786 Shadow Plus
Front Derailleur
Shimano Deore FD-M616, 34.9mm Band
Shift Levers
Shimano XT SL-M780, Rapid Fire Plus
Cassette
Shimano, 11t-36t, 10-Speed
Crank
FSA Comet MegaExo, 175mm, 38t x 24t
Bottom Bracket
FSA MegaExo (BSA)
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Shimano WH-MT35,, Centrelock Disc, QR
Rear Hub
Shimano WH-MT35, Centrelock Disc, QR
Rims
Shimano WH-MT35-27.5
Tires
Continental X-King,, 27.5” x 2.4” Front/27.5” x 2.2” Rear
Brakes
Brakes
Shimano SLX BR-M675 Hydraulic Disc, 180mm Centrelock Rotors
Cockpit
Stem
Vitus Alloy, +/- 7 Degree Rise, 60mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5B, Zero Stack (NO.57B) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.4 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 670 mm | 696 mm | 722 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 602.83 mm | 607.47 mm | 616.74 mm |
| Reach | 393.28 mm | 416.95 mm | 439.29 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1088 mm | 1114 mm | 1140 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

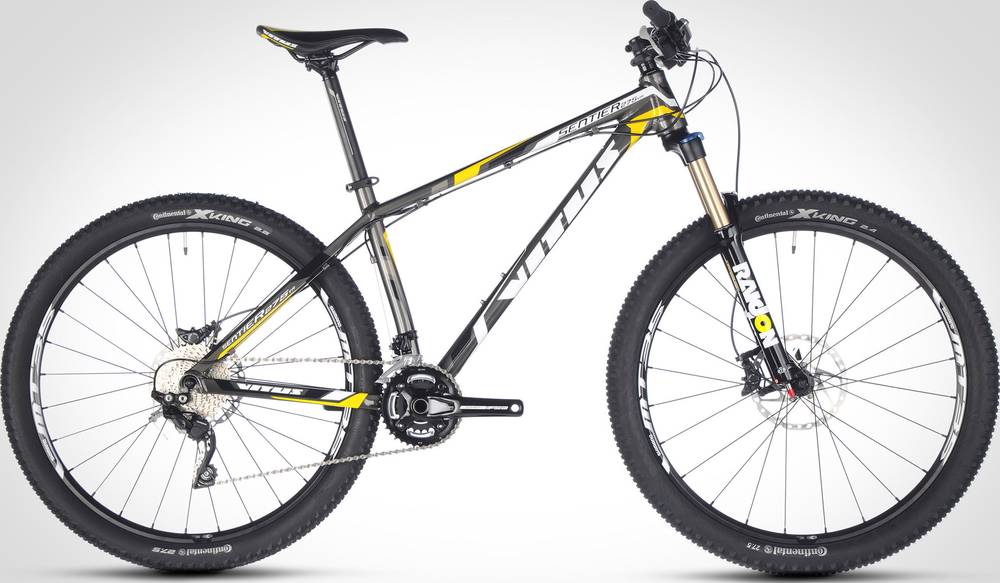

Sentier 275 VR 2014 is a Vitus Sentier model. Vitus launched 75 bikes of this model so far. You can easily view all of the Vitus Sentier bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 12.5 kg (27.56 lbs), the Sentier 275 VR 2014 model is slightly lighter than average. In short, the average Trail bike weight is 3.84% higher than this one.
Overview of components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Vitus Sentier 275 VR 2014 2014, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
