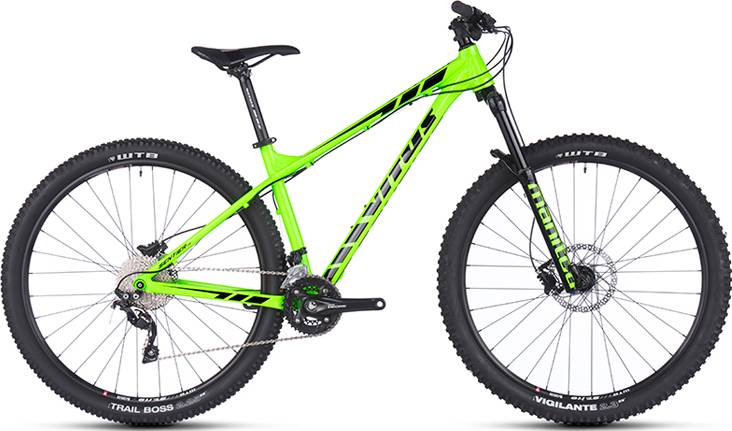

Vitus Sentier 29 2016
2016 Mountain
Estimate price |
1,176$
Weight | 13.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Manitou
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 152cm
LG
176cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mechanical Formed Triple-Butted 6061-T6 Aluminium
Suspension Fork
Manitou Minute Comp, 140mm Travel, TS Air spring, Ø32mm Aluminium stanchions, Compression to Lock-out and Rebound damping, TPC Technology ABS+ Trail Tuned, Tapered aluminium steerer, 15mm QR Through Axle
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano SLX RD-M675, Shadow Plus
Front Derailleur
Shimano Deore FD-M618, 34.9mm Band
Shift Levers
Shimano Deore SL-M610, Rapid Fire Plus, 10-Speed
Cassette
Shimano CS-HG50, 11t-36t, 10-Speed
Crank
Shimano Deore FC-M615, 175mm, 38tx24t
Bottom Bracket
Shimano
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Novatec D811, 6 Bolt, 100mm x 15mm
Rear Hub
Novatec D882, 6 Bolt, 142mm x 12mm
Rims
WTB ST i19, TCS, (tubeless ready), 29”
Spokes
Stainless, Double Butted
Tires
WTB, Front: Vigilante TCS Light, High Grip Compound, Aramid Bead, 27.5” x 2.3” Rear – Trail Boss TCS, Aramid Bead 27.5” x 2.25”
Brakes
Brakes
Shimano BR-M396, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Vitus, 3D Forged 6061-T6 Aluminium, +/- 3 Degree Rise, 50mm Extension
Handlebar
Vitus Riser Bar, 6061 Double Butted Alloy, 15mm Rise, 740mm Wide
Headset
FSA Orbit 1.5E, Zero Stack (NO.57E) 1.1/8” - 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.47 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 696 mm | 722 mm | 748 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 112 mm | 112 mm | 112 mm |
| Stack | 653.87 mm | 663.14 mm | 672.41 mm |
| Reach | 412.93 mm | 435.09 mm | 457.46 mm |
| Top Tube Length | 609 mm | 626 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1134 mm | 1160 mm | 1185 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 176 cm | 185 cm |
| Rider Max Height | 152 cm | 188 cm | 198 cm |
About this model
Sentier 29 is part of the Vitus Sentier model. There are 75 bikes that carry this model name. Take a sneak peek at all Vitus Sentier bikes models from 2016, by clicking here.
Model range prices
Vitus Sentier L 2016 is the most affordable bike of this model and has a price of 941$. On the other hand, Vitus Sentier VRX 2016, is the most expensive and costs 1550$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2016 and its price was 1069$. If we compare this with the average Trail bike cost we notice that the price is 158.37% smaller.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.23 kg (29.17 lbs), Vitus bike is slightly heavier than average. In conclusion, the average Trail bike weighs 1.93% less than Sentier 29.
Sentier 29 components
Fork
The Sentier 29 comes factory-installed with the Manitou fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Sentier 29 2016 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Sentier 29 comes in 3 sizes, that range from 170 cm – 198 cm (5.58 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
