Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 170mm -
Suspension Full
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

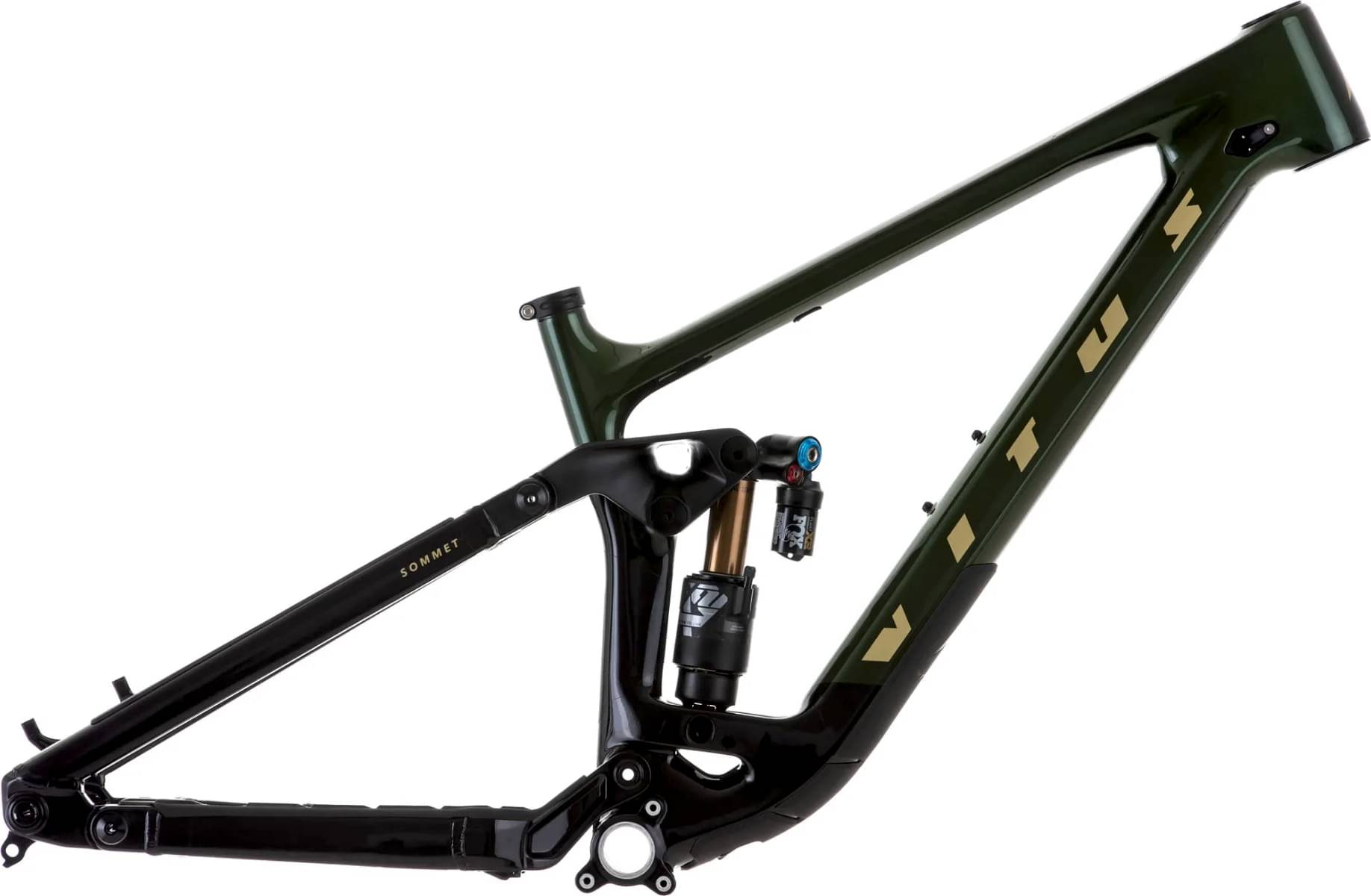

T700 carbon fibre front triangle, 6061-T6 aluminium rear
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.36 mm | 1.3 mm |
| Front Center | 761 mm | 791 mm | 823 mm | 854 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm |
| Reach | 415 mm | 440 mm | 468 mm | 495 mm |
| Top Tube Length | 565 mm | 594 mm | 618 mm | 642 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 77 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1192 mm | 1222 mm | 1254 mm | 1285 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
About this model
Sommet 297 Frame is part of the Vitus Sommet model. Vitus released 79 frames variations of this model so far. Take a sneak peek at all Vitus Sommet frames models from 2022, by clicking here.
Model range prices
Vitus Sommet 27 Frame 2022 is the most affordable frame of this model and has a price of 2310$. On the other hand, Vitus Sommet 29 Frame 2022, is the most expensive and costs 2310$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
Our math shows that the average cost of a dependable Downhill frame is 1923$. However, this doesn’t mean that if you spend less money on a Downhill frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2310$. Comparing this to the average Downhill frame price, we see that the price is 20.12% more expensive.
Sommet 297 Frame components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Sommet 297 Frame comes in 4 sizes, that range from 157 cm – 200 cm (5.15 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
