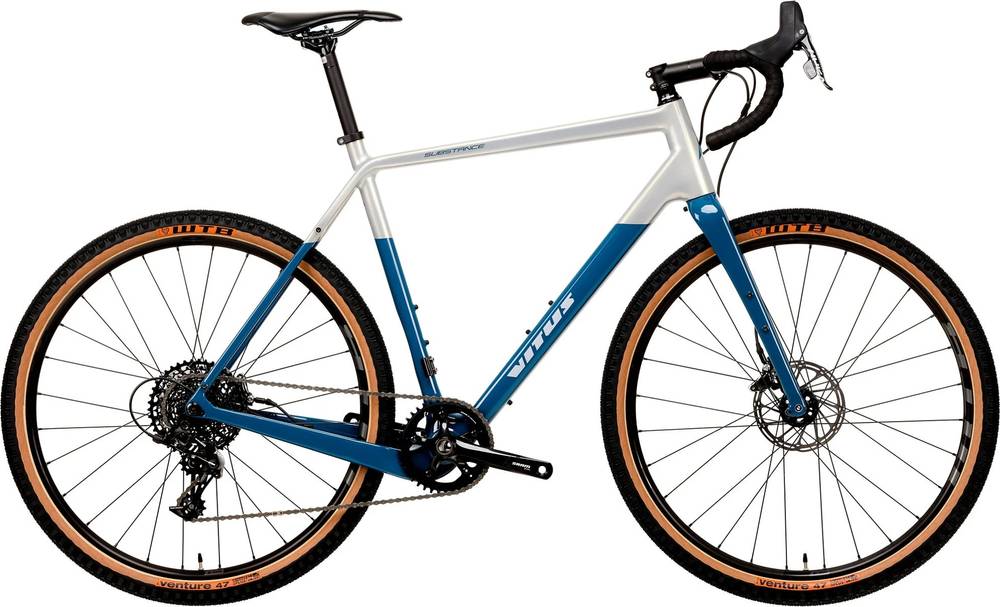

Vitus Substance CRS 1 2020
2020 Road
Estimate price |
2,541$
Weight | 9.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Apex, Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 167cm
SM
164cm - 174cm
MD
171cm - 184cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Carbon UD T700, "Internal cable routing, 142 x 12mm rear end, mud-guard mounts, rack mounts, 3 bottle cage mounts. "
Suspension Fork
UD carbon, Full carbon tapered steerer, 100 x 12mm, mud-guard mounts. Utility mounts (bottle cage or rack)
Drivetrain
Rear Derailleur
SRAM Apex, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Apex HRD 11 spd
Cassette
SunRace CSRX8 11-42T, 11spd
Crank
SRAM Apex 1, XSYNC 40T, Crank Lengths XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
BSA Threaded, SRAM BB-GXP-A1 Road 68
Chain
SRAM PC1110 116 Links with Power Lock 11 speed
Wheels
Front Hub
WTB 12 x 100mm, Sealed Enduro radial bearings, 6-bolt
Rear Hub
WTB, 12 x 142mm, Sealed Enduro radial bearings, 6-bolt, XD Freehub
Rims
WTB SpeedTerra Tubeless Tape Installed
Spokes
WTB N/A
Tires
WTB Venture 650b x 47 TCS Road Plus, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
Brakes
Brakes
SRAM Apex HRD, Cenrteline RT 160mm 6-BOLT Rotor
Cockpit
Stem
VITUS 6061 Aluminium 3D Forged, bar bore 31.8mm, +/- 7 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm
Handlebar
VITUS 6061 16° Flared Adventure 128mm drop x 77mm reach, XS:400mm S:400mm M:420mm L:420mm XL:440mm
Grips
VITUS EVA cork
Headset
FSA NO.42 tapered 1 1/8"- 1 1/2", 45°/45° upper bearing 41.8 / 28.6, lower bearing 36 / 45
Seat
Saddle
VITUS Ti-Rails
Seatpost
VITUS 6061 Aluminium 27.2mm x 350mm (300mm for XS and S), 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.52 mm | 1.55 mm | 1.58 mm |
| Front Center | 589.1 mm | 595.3 mm | 595.4 mm | 605.7 mm | 615.2 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 67 mm | 54 mm | 55 mm |
| Stack | 541.6 mm | 562.4 mm | 573 mm | 594.8 mm | 613.9 mm |
| Reach | 371 mm | 374.8 mm | 376 mm | 384.6 mm | 387.9 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1020 mm | 1026 mm | 1016 mm | 1037 mm | 1046 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 181 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 184 cm | 189 cm | 195 cm |
About this model
Substance CRS 1 is a Vitus Substance model. Vitus released 50 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Vitus Substance V 2 2020 is the most affordable bike of this model and has a price of 1033$. On the other hand, Vitus Substance CRX 2020, is the most expensive and costs 2796$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 2310$. Doing a quick comparison, we notice that Substance CRS 1 price is 6.58% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.38 kg (20.68 lbs), Vitus bike is much heavier than average. In conclusion, the average Gravel bike weighs 15.38% less than Substance CRS 1.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Substance CRS 1 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Substance CRS 1 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Substance CRS 1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Substance CRS 1 comes in 5 sizes, that range from 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
