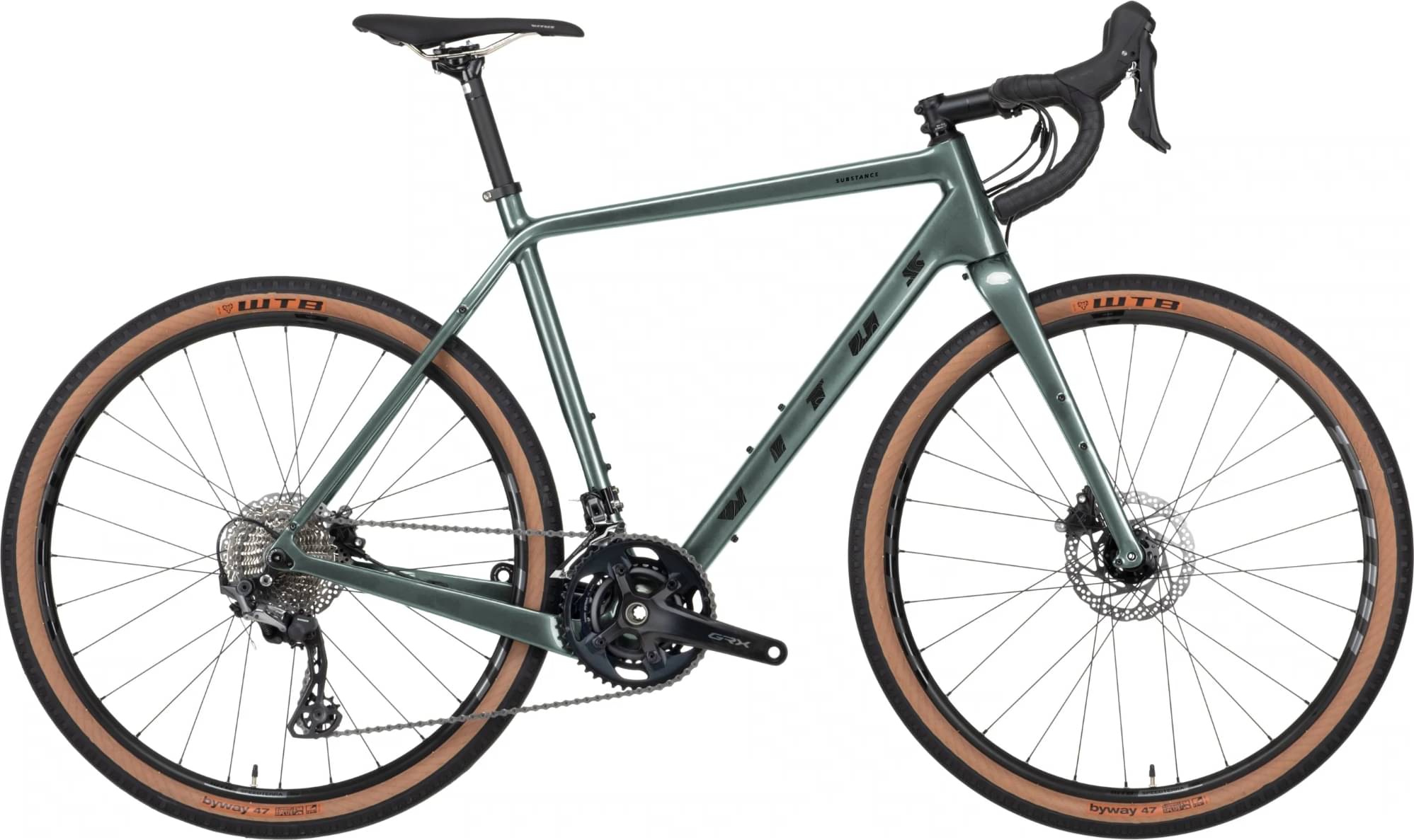

Vitus Substance CRS-2 Gravel 2022
2022 Road
Estimate price |
2,675$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 167cm
SM
164cm - 174cm
MD
171cm - 184cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Carbon, UD Carbon, Internal Cable Routing, Flat Mount, 1x Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX 812, RD-RX812, 11 Speed
Front Derailleur
Shimano GRX 810, FD-RX810, 2 x 11 Speed
Shift Levers
Shimano GRX 600, ST-RX600-R, 11 Speed
Cassette
Sunrace CSRX1, 11 Speed, 11-36T
Crank
Shimano GRX 600, FC-RX600, 46/30T, 11 Speed, XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
Shimano Ultegra, SM-BBR60, BSA Threaded, 68mm, English
Chain
KMC X11, 11 Speed
Wheels
Front Hub
WTB, 12x100mm, 6 Bolt
Rear Hub
WTB, 142x12mm, 6 Bolt, HG Freehub
Rims
WTB Speedterra i23, 700c, Tubeless Ready
Tires
Maxxis Receptor, 700 x 40c, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brakes
Shimano GRX 400 Caliper, BR-RX400, Hydraulic Disc, Flat Mount
Disk Rotors
Shimano RT70, Front: 160mm, Rear: 160mm
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, XS:400mm S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
FSA Gossamer, 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.52 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 589.1 mm | 595.3 mm | 595.4 mm | 605.7 mm | 615.2 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65 mm | 67 mm | 60 mm | 57 mm | 49 mm |
| Stack | 541.6 mm | 562.4 mm | 573 mm | 594.8 mm | 613.9 mm |
| Reach | 371 mm | 374.8 mm | 376 mm | 384.6 mm | 387.9 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1030 mm | 1041 mm | 1057 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 181 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 184 cm | 189 cm | 195 cm |
About this model
Substance CRS-2 Gravel belongs to the Vitus Substance model. 50 bikes variations carry this model name so far. You can easily view all of the Vitus Substance bikes models from 2022, here.
Model range prices
Vitus Substance 2 Gravel 2022 is the cheapest bike model and costs 911$. Vitus Substance CRX-1 HT Rival 2022 is the most expensive one and costs 3199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 2432$. Comparing the average cost of a Gravel bike to this one, you will see that Substance CRS-2 Gravel price is 1.23% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Substance CRS-2 Gravel components
Fork material
Substance CRS-2 Gravel has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Substance CRS-2 Gravel are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Substance CRS-2 Gravel has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 195 cm (5.25 ft – 6.4 ft). In short, you can easily find one that suits you.
