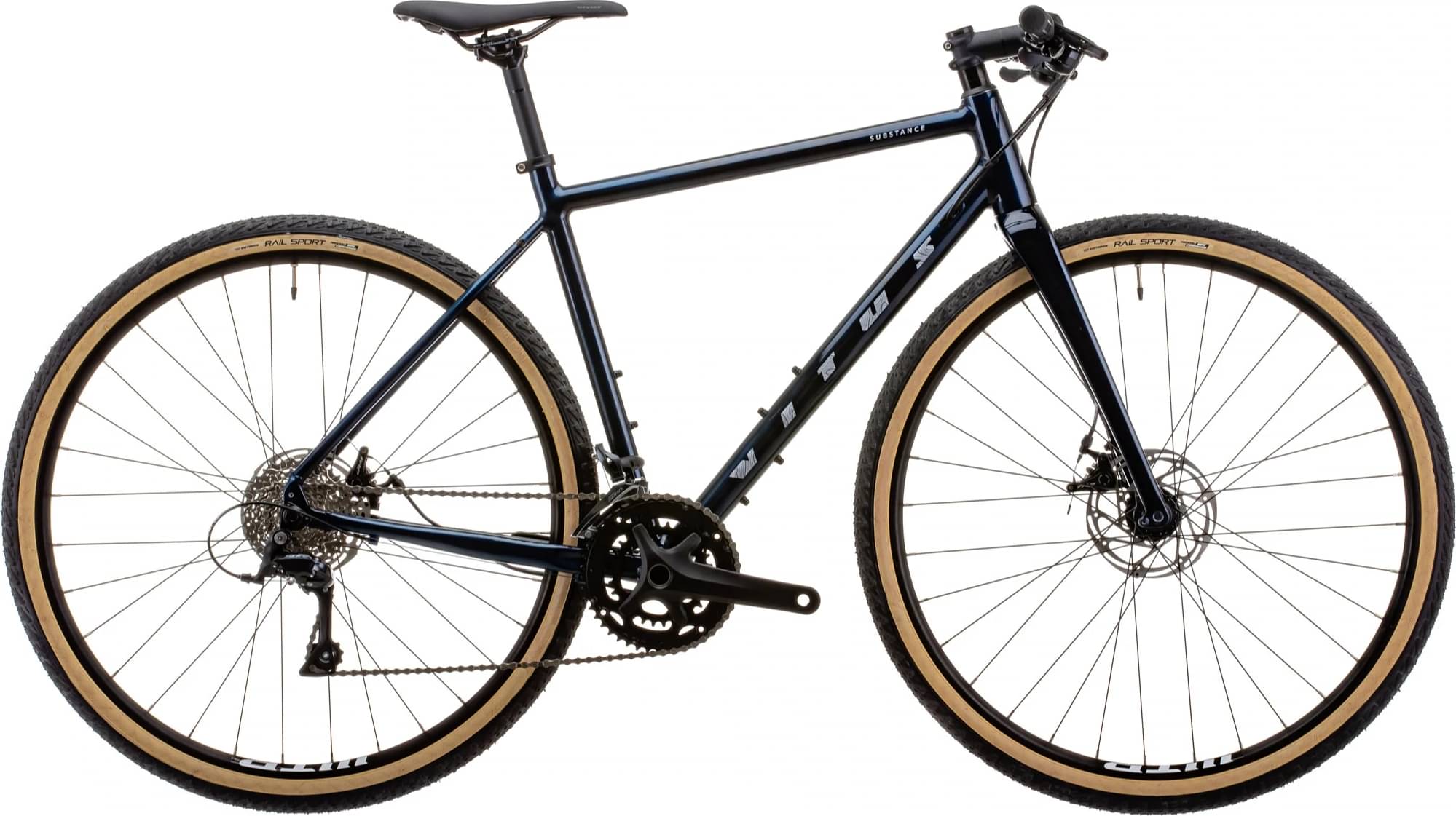

Vitus Substance V-2 Flat Bar Gravel 2022
2022 Road
Estimate price |
1,203$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 192cm
XXL
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount
Drivetrain
Rear Derailleur
Shimano Sora R3000, RD-R3000, Long Cage, 9 Speed
Front Derailleur
Shimano Sora R3000, FD-R3000, Band Type (31.8mm Clamp), 2 x 9 Speed
Shift Levers
Shimano Sora R3000, ST-R3000-R, 9 Speed
Cassette
Sunrace M96, 9 Speed, 11-34T
Crank
Prowheel RPP-521-TT, 46/30T, 9 Speed, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
Prowheel RPP-521-TT, BSA Threaded, 68mm, English
Chain
KMC X9, 9 Speed
Wheels
Front Hub
Vitus KT, XF1F-12, 12x100mm, 6 Bolt, 32 Hole
Rear Hub
Vitus KT, M4ZR, 142x12mm, 6 Bolt, 32 Hole, HG Freehub
Rims
WTB ST i23 TCS 2.0, 700c, 32 Hole, Tubeless Ready
Tires
Vee Tire Co. Rail Sport, 700c x 40c, MPC Compound, Skin Wall
Brakes
Brakes
Tektro MD-C310 Disc Brake with Shimano Sora Lever, MD-C610-C, Flat Mount, Cable Actuated
Disk Rotors
Tektro TR160, Front: 160mm, Rear: 160mm
Cockpit
Stem
Vitus 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, Rise: 15 degrees, XS:80mm S:80mm M:90mm L:100mm XL:110mm XXL:110mm
Handlebar
Vitus 6061 Aluminium, Flat Bar, Back Sweep: 6 degrees, Width: 660mm
Grips
Vitus MTB, With Plastic Lock Ring
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 350mm, 12mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.47 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 65 mm | 64 mm | 64 mm | 67 mm | 67 mm |
| Stack | 541 mm | 558 mm | 575 mm | 584 mm | 602 mm | 613 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 405 mm | 419 mm |
| Top Tube Length | 529 mm | 542 mm | 557 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1024 mm | 1029 mm | 1038 mm | 1050 mm | 1064 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm | 195 cm |
Model Overview
Substance V-2 Flat Bar Gravel belongs to the Vitus Substance model. 50 bikes variations carry this model name so far. Take a sneak peek at all Vitus Substance bikes models from 2022, by clicking here.
Model range prices
Vitus Substance 2 Gravel 2022 is the most affordable bike of this model and has a price of 911$. On the other hand, Vitus Substance CRX-1 HT Rival 2022, is the most expensive and costs 3199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Vitus Substance V-2 Flat Bar Gravel price was 1094$. Doing a quick comparison, we notice that Substance V-2 Flat Bar Gravel price is 125.05% smaller than the average cost of a Gravel bike.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Substance V-2 Flat Bar Gravel weighs 11 kg (24.25 lbs) and is much heavier than the average. In conclusion, the average Gravel bike weighs 35.3% less than Substance V-2 Flat Bar Gravel.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Substance V-2 Flat Bar Gravel components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Substance V-2 Flat Bar Gravel model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Substance V-2 Flat Bar Gravel has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Substance V-2 Flat Bar Gravel comes in 6 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
