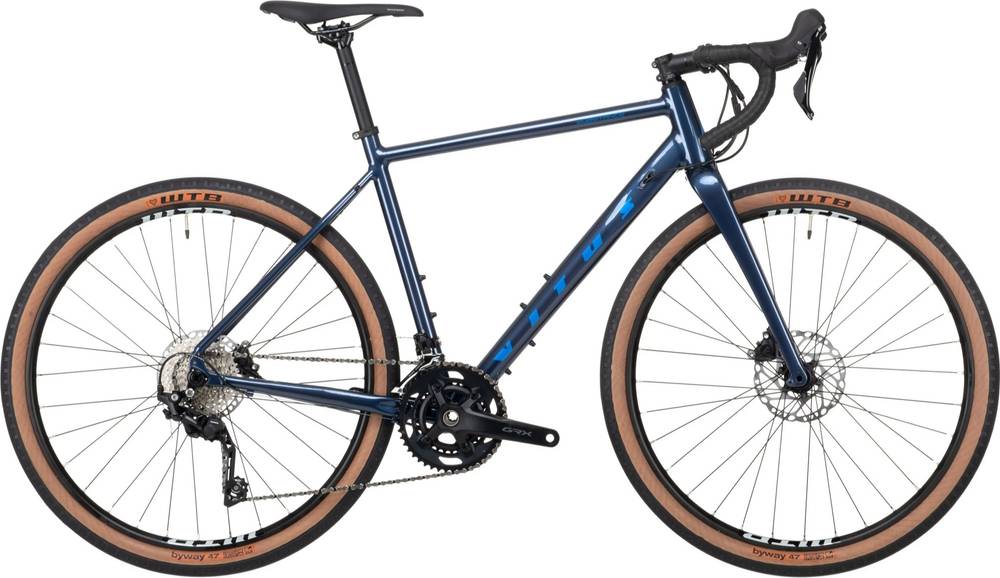

Vitus Substance VR 2 2021
2021 Road
Estimate price |
1,605$
Weight | 10.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 192cm
XXL
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatable, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX 400, RD-RX400, 10 Speed, Long Cage, Shadwow Plus
Front Derailleur
Shimano GRX 400, FD-RX400, Band-On
Shift Levers
Shimano GRX 400 ST-RX400-R, 10 Speed
Cassette
Sunrace MS0, 11-34T
Crank
Shimano GRX 600, FC-RX600 46/30T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
Shimano RS500, BB-RS500, BSA Threaded English, 68mm,
Chain
KMC X10 10 Speed
Wheels
Front Hub
Alex Bear Pawls BRD-50312F, 32 Hole, 12 x 100mm Thru Axle, Centre Lock
Rear Hub
Alex Bear Pawls, BRD-50412B, 32 Hole, 12 x 142mm Thru Axle, Centre Lock, 11 Speed, HG Freehub
Rims
WTB ST Light i23 TCS 2.0 650b, 32 Hole, Tubeless Ready, Single Eyelets
Spokes
14G Stainless Steel 16mm Brass Nipple
Tires
650b x 47, WTB Byway TCS Road Plus, Tubeless Ready, Dual DNA Compound, UST Aramid Bead. Max tyre clearance 650b x 47 or 700c x 42.
Brakes
Brakes
Shimano GRX 400, ST-RX400, Hydraulic Disc, Flat Mount
Disk Rotors
Shimano RT64, Front:160mm, Rear:160mm
Cockpit
Stem
VITUS 6061 Aluminium 3D Forged, Bar Bore 31.8mm, +/- 7 degrees, XS:80mm S:80mm M:90mm L:100mm XL:100mm XXL:110mm
Handlebar
VITUS 6061 Aluminium Wing 77mm Reach, 128mm Drop, 3 Degree Flare, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL: 440mm
Grips
VITUS EVA Cork
Headset
ACROS Aix 322 R3 Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus Steel Rail
Seatpost
VITUS 6061 Aluminium 27.2mm x 350mm, 12mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.47 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 65 mm | 64 mm | 64 mm | 67 mm | 67 mm |
| Stack | 541 mm | 558 mm | 575 mm | 584 mm | 602 mm | 613 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 405 mm | 419 mm |
| Top Tube Length | 529 mm | 542 mm | 557 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1024 mm | 1029 mm | 1038 mm | 1050 mm | 1064 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm | 195 cm |
Model Overview
Substance VR 2 is part of the Vitus Substance model. Vitus released 50 bikes variations of this model so far. Take a sneak peek at all Vitus Substance bikes models from 2021, by clicking here.
Model range prices
Vitus Substance V 2 2021 is the most affordable bike of this model and has a price of 1094$. On the other hand, Vitus Substance CRS-2 eTap AXS 2021, is the most expensive and costs 3040$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Vitus released this model in 2021, its price was 1458$. Comparing the average cost of a Gravel bike to this one, you will see that Substance VR 2 price is 68.86% lower.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Substance VR 2 weighs 10.55 kg (23.26 lbs) and is much heavier than the average. In conclusion, the average Gravel bike weighs 29.77% less than Substance VR 2.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Substance VR 2 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Vitus Substance VR 2 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
