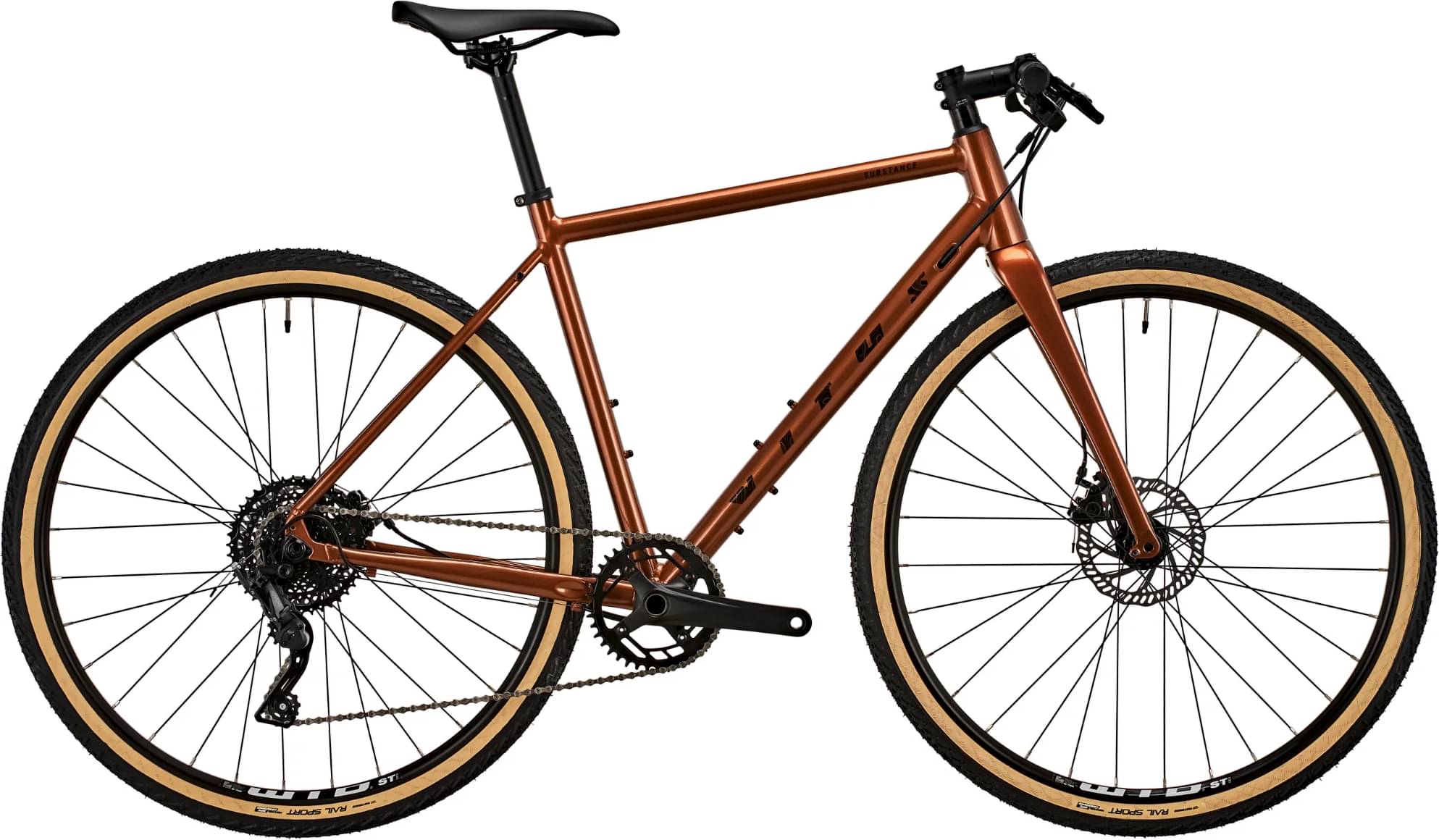

Vitus Substance VR-FB 2023
2023 Road
Estimate price |
1,203$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
154cm - 164cm
SM
161cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 194cm
XXL
192cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 142 x 12mm Hub Spacing, Flat Mount, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Drivetrain
Rear Derailleur
Microshift Advent, RD-M6195M, Medium Cage, 9 Speed
Front Derailleur
N/A, N/A
Shift Levers
Microshift Advent Trail, SL-M9195-R, 9 Speed Trigger Shifter
Cassette
Microshift Advent H Series, 11-42T, 9 Speed
Crank
Prowheel Charm, 40T, 9 Speed, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
Prowheel, BSA Threaded, 68mm, English
Chain
KMC X9, 9 Speed
Wheels
Front Hub
Vitus KT, XF1F-12, 100 x 12mm, 6 Bolt, 32 Hole
Rear Hub
Vitus KT, M4ZR, 142 x 12mm, 6 Bolt, 32 Hole, HG Freehub
Rims
WTB ST i23 TCS 2.0, 700c, 32 Hole, Tubeless Ready
Tires
Front: Vee Tire Co. Rail Sport, 700c x 40c, MPC Compound, Skin Wall, Rear: Vee Tire Co. Rail Sport, 700c x 40c, MPC Compound, Skin Wall
Brakes
Brakes
C-Star Mechanical Disc Brake, Lever: VL500D, Caliper: BH-RS910, Flat Mount, Cable Actuated
Cockpit
Stem
Vitus 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 7 degrees, XS:80mm S:80mm M:90mm L:100mm XL:110mm XXL:110mm
Handlebar
Vitus 6061 Aluminium, Flat Bar, Back Sweep: 6 degrees, Width: 660mm
Grips
Vitus MTB, With Plastic Lock Ring
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 350mm, 12mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.47 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 65 mm | 64 mm | 64 mm | 67 mm | 67 mm |
| Stack | 541 mm | 558 mm | 575 mm | 584 mm | 602 mm | 613 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 405 mm | 419 mm |
| Top Tube Length | 529 mm | 542 mm | 557 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1024 mm | 1029 mm | 1038 mm | 1050 mm | 1064 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm |
| Rider Max Height | 164 cm | 172 cm | 180 cm | 187 cm | 194 cm | 203 cm |
About this model
Substance VR-FB is a Vitus Substance model. There are 57 bikes that carry this model name. You can easily view all of the Vitus Substance bikes models from 2023, here.
Model range prices
The most economical model, the Vitus Substance V 2023 has a starting price of 973$. Vitus Substance Carbon HT Rival 2023 on the other hand is the most expensive at 2999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 1095$. In conclusion, this bike price is 124.84% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Substance VR-FB weighs 11 kg (24.25 lbs) and is much heavier than the average. In other words, this model is 35.3% heavier than the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Substance VR-FB bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Substance VR-FB is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Vitus Substance VR-FB bike has 6 sizes, in the range of 154 cm – 203 cm (5.05 ft – 6.66 ft). In short, you can easily find one that suits you.
