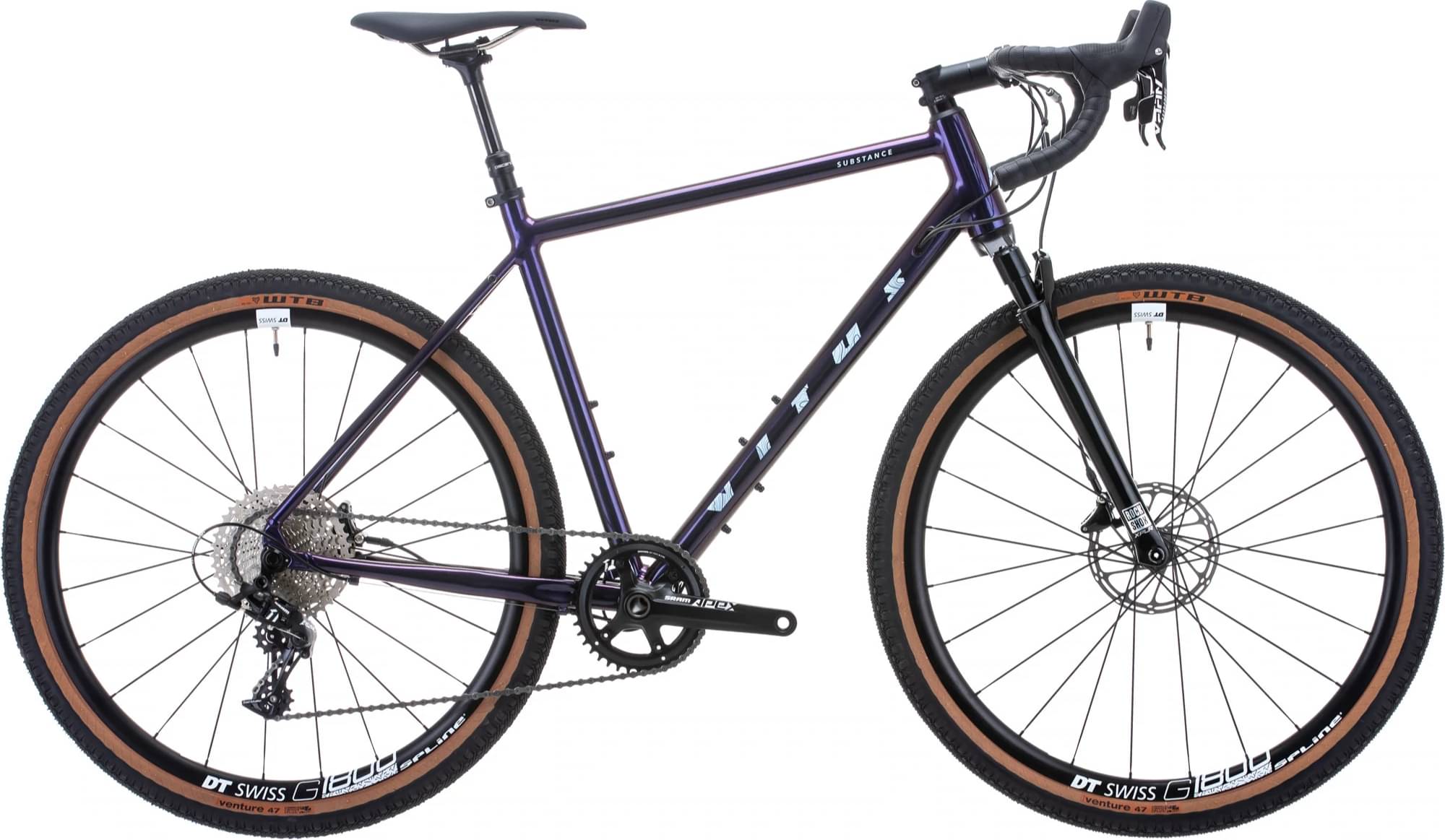

Vitus Substance VRS-1 HT Gravel 2022
2022 Road
Estimate price |
2,675$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 30mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset Apex -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 192cm
XXL
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
RockShox Rudy XPLR, 30mm Travel, Tapered Steerer, 100 x 12mm, Flat Mount
Drivetrain
Rear Derailleur
SRAM Apex, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Apex, 11 Speed
Cassette
Sunrace MS8, 11 Speed, 11-42T
Crank
SRAM Apex X-Sync, 40T, 11 Speed, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
SRAM GXP, BSA Threaded, 68mm, English
Chain
SRAM PC1110, 11 Speed
Wheels
Front Hub
DT Swiss 370, 12x100mm, 6 Bolt
Rear Hub
DT Swiss 370, 142x12mm, 6 Bolt, HG Freehub
Rims
DT Swiss G 1800 Spline, 650b, Tubeless Ready
Tires
WTB Venture TCS Road Plus, 650b x 47, Tubeless Ready, Dual DNA Compound, UST Aramid Bead
Brakes
Brakes
SRAM Apex, Hydraulic Disc, Flat Mount
Disk Rotors
SRAM Centreline, Front: 160mm, Rear: 160mm
Cockpit
Stem
Vitus 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 7 degrees, XS:80mm S:80mm M:90mm L:100mm XL:110mm XXL:110mm
Handlebar
Vitus 6061 Aluminium Wing, 77mm Reach, 128mm Drop, 16 Degree Flare, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL: 440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
Brand-X Ascend CX, 85mm Drop, 350mm Length, 27.2mm Diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.47 mm | 1.49 mm | 1.46 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 59 mm | 58 mm | 58 mm | 61 mm | 60 mm |
| Stack | 541 mm | 558 mm | 575 mm | 584 mm | 602 mm | 613 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 405 mm | 419 mm |
| Top Tube Length | 529 mm | 542 mm | 557 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1024 mm | 1029 mm | 1038 mm | 1050 mm | 1064 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm | 195 cm |
Model Overview
Substance VRS-1 HT Gravel completes the Vitus Substance model. 50 bikes variations carry this model name so far. Take a sneak peek at all Vitus Substance bikes models from 2022, by clicking here.
Model range prices
Vitus Substance 2 Gravel 2022 is the cheapest bike model and costs 911$. Vitus Substance CRX-1 HT Rival 2022 is the most expensive one and costs 3199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 2432$. Doing a quick comparison, we notice that Substance VRS-1 HT Gravel price is 1.23% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Substance VRS-1 HT Gravel has a weight of 10.8 kg (23.81 lbs). In short, the average Gravel bike weight is 32.84% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Substance VRS-1 HT Gravel components
Fork
Vitus Substance VRS-1 HT Gravel 2022 bike is equipped with the RockShox Rudy Ultimate XPLR fork, and has 30mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Substance VRS-1 HT Gravel model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Substance VRS-1 HT Gravel is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Vitus Substance VRS-1 HT Gravel bike has 6 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Substance VRS-1 HT Gravel. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
