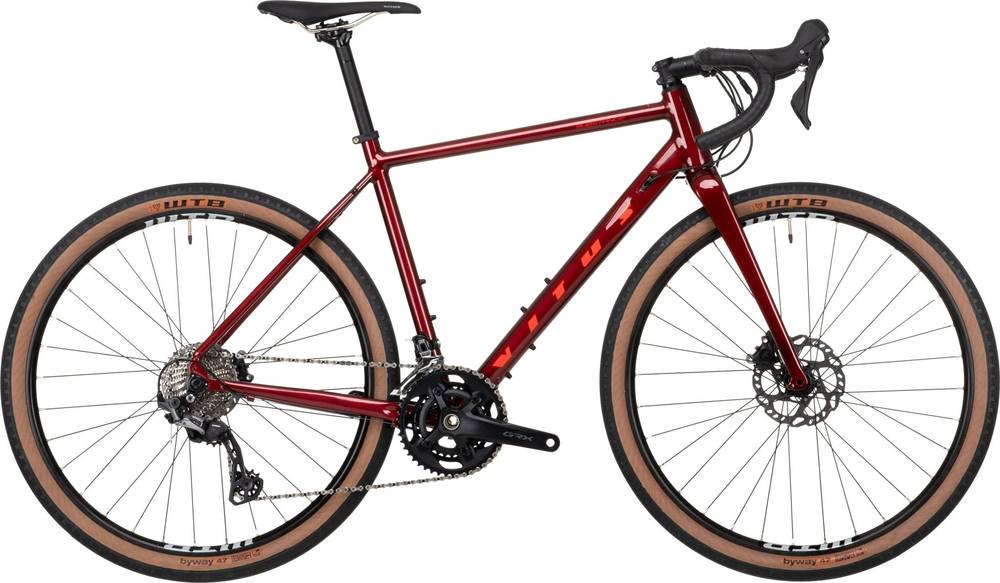

Vitus Substance VRS 2 2021
2021 Road
Estimate price |
1,738$
Weight | 10.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 192cm
XXL
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatable, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX 800, RD-RX810, 11 Speed, Long Cage, Shadwow Plus
Front Derailleur
Shimano GRX 800, FD-RX810, Band-On
Shift Levers
Shimano GRX 600 ST-RX600-R, 11 Speed
Cassette
Shimano HG700, 11-34T
Crank
Shimano GRX 600, FC-RX600 46/30T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
Shimano RS500, BB-RS500, BSA Threaded English, 68mm,
Chain
KMC X11 11 Speed
Wheels
Front Hub
Alex Bear Pawls BRD-50312F, 32 Hole, 12 x 100mm Thru Axle, Centre Lock
Rear Hub
Alex Bear Pawls, BRD-50412B, 32 Hole, 12 x 142mm Thru Axle, Centre Lock, 11 Speed, HG Freehub
Rims
WTB ST Light i23 TCS 2.0 650b, 32 Hole, Tubeless Ready, Single Eyelets
Spokes
14G Stainless Steel 16mm Brass Nipple
Tires
650b x 47, WTB Byway TCS Road Plus, Tubeless Ready, Dual DNA Compound, UST Aramid Bead. Max tyre clearance 650b x 47 or 700c x 42.
Brakes
Brakes
Shimano GRX 600, ST-RX600, Hydraulic Disc, Flat Mount
Disk Rotors
Shimano RT70, Front:160mm, Rear:140mm
Cockpit
Stem
VITUS 6061 Aluminium 3D Forged, Bar Bore 31.8mm, +/- 7 degrees, XS:80mm S:80mm M:90mm L:100mm XL:100mm XXL:110mm
Handlebar
VITUS 6061 Aluminium Wing 77mm Reach, 128mm Drop, 3 Degree Flare, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL: 440mm
Grips
VITUS Super Grip Anti Slip, Shock Proof
Headset
ACROS Aix 322 R3 Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus Crn-Ti Rail
Seatpost
VITUS 6061 Aluminium 27.2mm x 350mm, 12mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.47 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 65 mm | 64 mm | 64 mm | 67 mm | 67 mm |
| Stack | 541 mm | 558 mm | 575 mm | 584 mm | 602 mm | 613 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 405 mm | 419 mm |
| Top Tube Length | 529 mm | 542 mm | 557 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1024 mm | 1029 mm | 1038 mm | 1050 mm | 1064 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm | 195 cm |
Model Overview
Substance VRS 2 completes the Vitus Substance model. Vitus launched 50 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Vitus Substance V 2 2021 is the most affordable bike of this model and has a price of 1094$. On the other hand, Vitus Substance CRS-2 eTap AXS 2021, is the most expensive and costs 3040$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 1580$. In conclusion, this bike price is 55.82% smaller than the price of the average Gravel bike.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Substance VRS 2 weighs 10.47 kg (23.08 lbs) and is much heavier than the average. To sum up, it’s 28.78% heavier than the average weight of Gravel bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Substance VRS 2 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Substance VRS 2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Substance VRS 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Vitus Substance VRS 2 bike has 6 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
