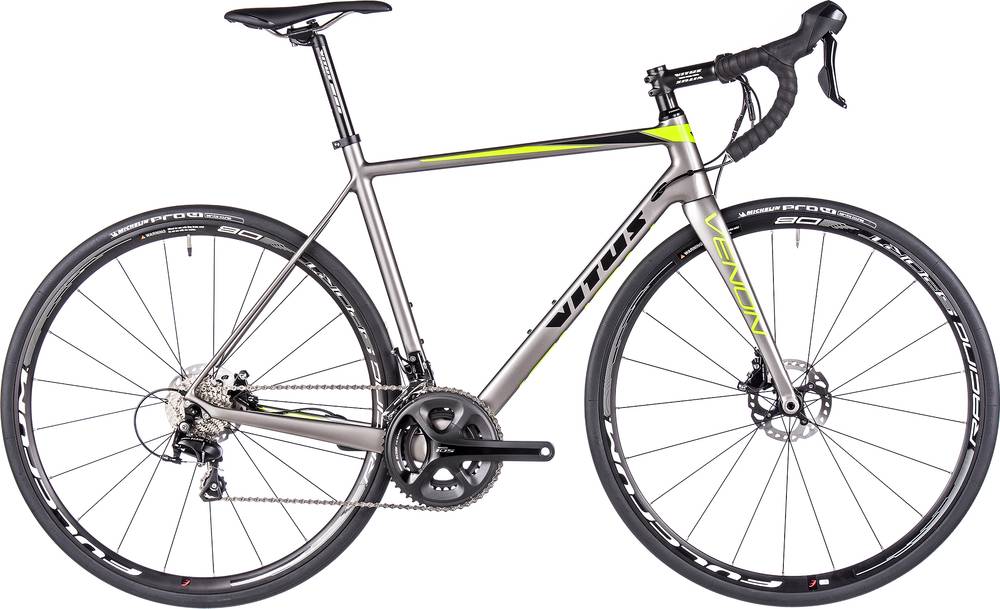

Vitus Venon Disc 2017
2017 Road
Estimate price |
2,140$
Weight | 8.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
160cm - 165cm
52cm
165cm - 172cm
54cm
170cm - 175cm
56cm
175cm - 152cm
60cm
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-modulus T700 HM-UD carbon, Disc brake specific, 135mm x 10mm QR
Suspension Fork
High-modulus T700 HM-UD carbon, Tapered carbon steerer, disc brake specific, 15mm x 100mm through axle
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105 5800
Front Derailleur
Shimano 105 5800, Braze On
Shift Levers
Shimano ST-RS 505
Cassette
Shimano 105 5800, 11-speed, 11t-28t
Crank
Shimano 105 5800, 50t x 34t
Bottom Bracket
Shimano 105 5800, BSA
Chain
KMC X11, 11-speed
Wheels
Front Hub
Fulcrum Racing Sport Disc Brake, 100mm x 15mm QR through axle
Rear Hub
Fulcrum Racing Sport Disc Brake, 135mm x 10mm QR
Rims
Fulcrum Racing Sport Disc Brake
Spokes
Fulcrum Racing Sport Disc Brake
Tires
Michelin PRO 4, 700c x 25c
Brakes
Brakes
Shimano BR-RS 505, Hydraulic Disc, 140mm rotor
Cockpit
Stem
Vitus, 3D forged 6061-T6 aluminium, + / - 7 degree rise
Handlebar
Vitus compact, 6061 Double Butted Alloy, 128mm Drop / 77mm Reach
Headset
Token A38M, Integrated, 1.1/8” – 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus UD Carbon, 2D forged head with micro-adjustment, 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.36 mm | 1.42 mm | 1.42 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 264 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 577 mm | 570 mm | 580 mm | 595 mm | 600 mm | 609 mm |
| Rake | 44 mm | 31 mm | 45 mm | 45 mm | 21 mm | 20 mm |
| Trail | 63 mm | 77 mm | 56 mm | 56 mm | 93 mm | 95 mm |
| Stack | 517.4 mm | 520.5 mm | 541.2 mm | 555.6 mm | 576.8 mm | 596 mm |
| Reach | 379 mm | 383.2 mm | 382.1 mm | 392.5 mm | 396.1 mm | 399.5 mm |
| Top Tube Length | 523 mm | 533 mm | 543 mm | 557.6 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 71 ° | 71 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 120 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 979 mm | 972 mm | 983 mm | 998 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm | cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 175 cm | 152 cm | cm | 193 cm |
Model Overview
Venon Disc is a Vitus Venon model. Vitus launched 32 bikes of this model so far. You can easily view all of the Vitus Venon bikes models from 2017, here.
Model range prices
Vitus Venon L Disc 2017 is the cheapest bike model and costs 1945$. Vitus Venon VR Disc 2017 is the most expensive one and costs 2127$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
If you want an acceptable General Road bike you should know that the average price is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 1945$. In conclusion, this bike price is 1.57% more expensive than the price of the average General Road bike.
General Road bikes average weight
General Road bikes have an average weight of 9 kg (19.84 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Venon Disc has a weight of 8.28 kg (18.25 lbs). In other words, this model is 8.7% lighter than the average General Road bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Venon Disc model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Venon Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
