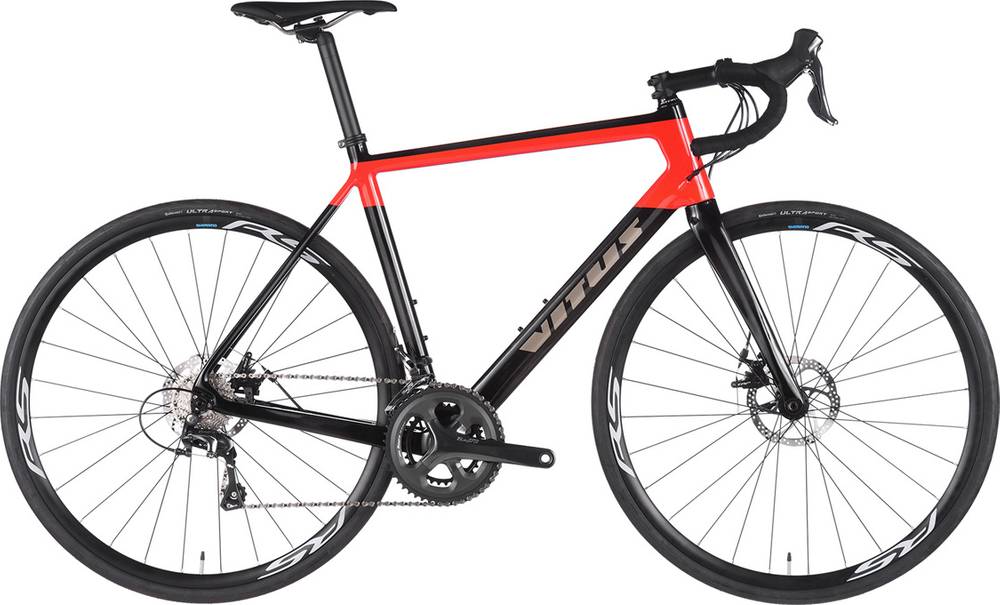

Vitus Venon Disc Tiagra 2018
2018 Road
Estimate price |
1,872$
Weight | 9.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Shimano, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
165cm - 172cm
SM
170cm - 177cm
MD
174cm - 152cm
LG
180cm - 189cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, 142x12mm Thru axle, UD, Raw finish
Suspension Fork
Carbon, Raw finish, 100x12mm Thru axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tagra, 10 speed GS cage
Front Derailleur
Shimano Tiagra, 2x Braze on
Shift Levers
Shimano Tiagra, 2 x 10 speed
Cassette
shimano HG500, 10 speed 12-28t
Crank
Shimano Tiagra, 52x36t, 50/52cm-170mm, 54/56cm-172.5, 58/60cm-175mm
Bottom Bracket
Shimano, Hollowtech II
Chain
KMC X11
Wheels
Front Hub
Shimano RS-170, 28h 100x12mm Thru axle
Rear Hub
Shimano RS-170, 28h 142x12mm Thru axle
Rims
Shimano RS-170, 700x28h
Spokes
Double Butted
Tires
Continental Ultra sport II, 700x28c
Brakes
Brakes
TRP Spyre, 160mm Flat mount, Centre lock
Cockpit
Stem
Vitus alloy, 50/52cm-100mm, 54/56cm-110mm, 58/60cm-120mm
Handlebar
Vitus alloy, 50/52cm 400mm, 54/56cm-420mm, 58/60cm-440mm
Headset
Token - Intergrated Ahead tapered, 1 1/8
Seat
Saddle
Vitus
Seatpost
Vitus carbon, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.51 mm | 1.57 mm | 1.62 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 579 mm | 580 mm | 592 mm | 608 mm | 622 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65 mm | 59 mm | 57 mm | 56 mm | 57 mm |
| Stack | 518 mm | 540 mm | 566 mm | 599 mm | 628 mm |
| Reach | 371 mm | 374 mm | 376 mm | 381 mm | 387 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 566 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 140 mm | 170 mm | 205 mm | 235 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 975 mm | 976 mm | 988 mm | 1004 mm | 1018 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 174 cm | 180 cm | 185 cm |
| Rider Max Height | 172 cm | 177 cm | 152 cm | 189 cm | 193 cm |
About this model
Venon Disc Tiagra is part of the Vitus Venon model. Vitus launched 32 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Vitus Venon Disc Tiagra 2018 has a starting price of 1702$. Vitus Venon CRi Disc Ultegra Di2 2018 on the other hand is the most expensive at 3648$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, even though the average price of a General Road bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Vitus Venon Disc Tiagra price was 1702$. Comparing this to the average General Road bike price, we see that the price is 12.51% lower.
General Road bikes average weight
The average weight for General Road bikes is 9 kg (19.84 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Venon Disc Tiagra has a weight of 9.6 kg (21.16 lbs). In other words, this model is 6.67% heavier than the average General Road bike.
Venon Disc Tiagra components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Venon Disc Tiagra model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Venon Disc Tiagra comes in 5 sizes, that range from 165 cm – 193 cm (5.41 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
