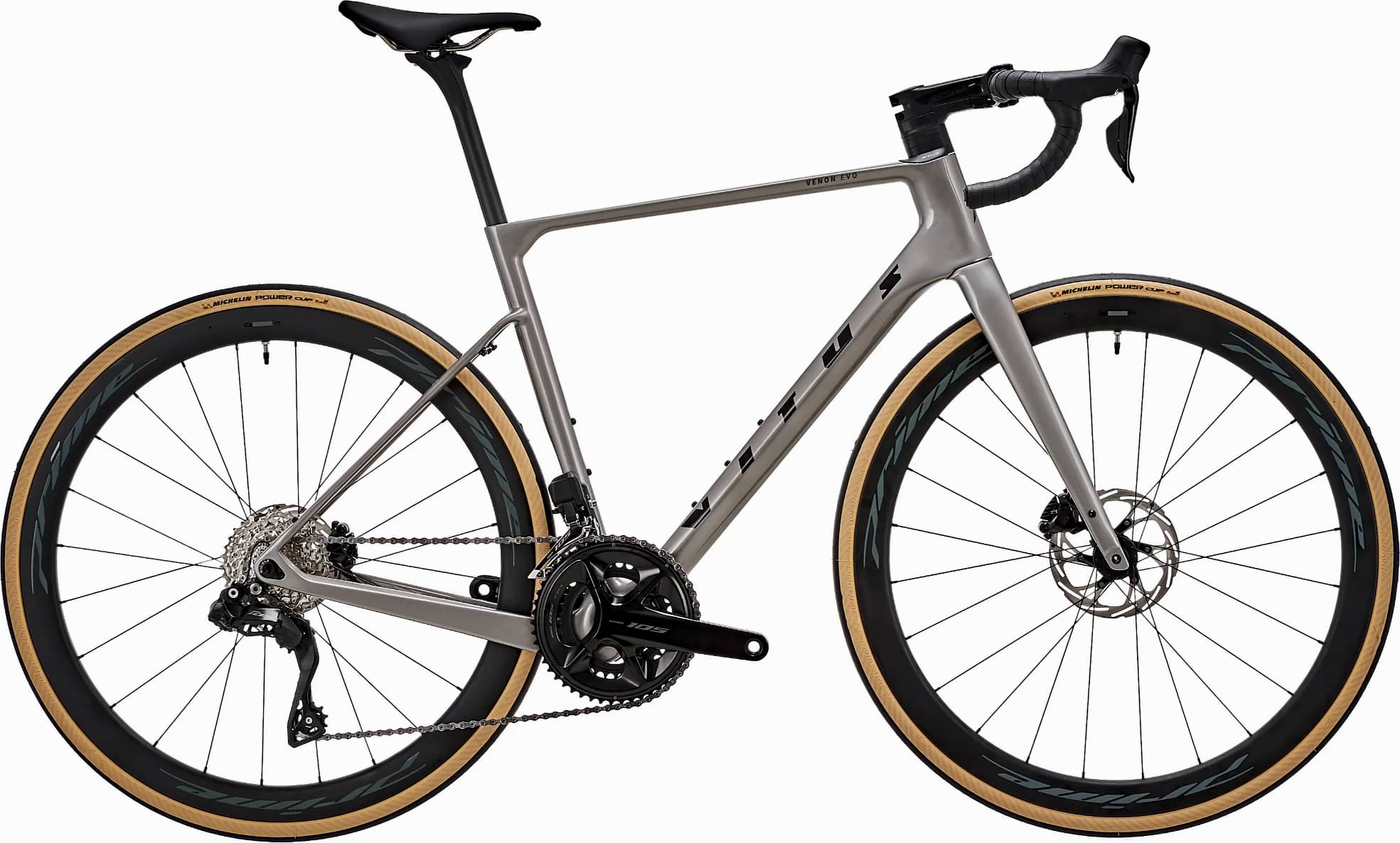

Vitus Venon EVO-RS 105 Di2 Aero 2023
2023 Road
Estimate price |
5,218$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 152cm
SM
167cm - 175cm
MD
172cm - 180cm
LG
177cm - 185cm
XL
182cm - 190cm
XXL
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Venon EVO Carbon, SL UD Carbon, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Venon EVO Carbon, SL UD Carbon, Tapered Steerer, 100 x 12mm, Flat Mount, Axle Specifcations: 123mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Drivetrain
Rear Derailleur
Shimano 105 R7150, RD-R8150-GS, 12 Speed, Shadow
Front Derailleur
Shimano 105 R7150, FD-R8150, 2 x 12 Speed
Shift Levers
Shimano 105 R7170, Wireless, 12 Speed
Cassette
Shimano CS-HG710-12, 11-34T, 12-Speed
Crank
Shimano 105 7100, 50/34T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
TriPeak BB386, BB386EVO for Shimano 24mm Spindle
Chain
Shimano M7100, 12-Speed
Wheels
Front Hub
Prime SR2D, 100 x 12mm, Centre Lock
Rear Hub
Prime SR2D, 142 x 12mm, Centre Lock, 36T Ratchet System, HG Freehub
Rims
Prime Doyenne 44 Carbon, Tubeless Ready, Disc Brake, Rim Depth: 44mm, Inner Rim Width: 23mm, Outer Rim Width: 30mm
Tires
Front: Michelin Power Cup Classic TS TLR, 700c x 28c, Tubeless Ready, Rear: Michelin Power Cup Classic TS TLR, 700c x 28c, Tubeless Ready
Brakes
Brakes
Shimano 105 R7170 Disc, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA NS SMR Aluminium, Bar Bore 31.8mm, - 6 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm
Handlebar
Prime Doyenne Lightweight Aluminium, Reach: 70mm, XS:380mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm
Grips
Vitus Super Grip, Anti Slip
Headset
ZX-1/Venon Specific FSA No.84, Sealed bearing IS52/40 top/bottom, 36deg/45deg
Seat
Saddle
Vitus Race Performance, Ti Rail
Seatpost
Prime Primavera Carbon, 27.2mm, 10mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 278 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 592 mm | 597 mm | 609 mm | 620 mm | 629 mm | 643 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 67 mm | 62 mm | 60 mm | 58 mm | 56 mm |
| Stack | 510 mm | 531 mm | 552 mm | 579 mm | 599 mm | 617 mm |
| Reach | 365 mm | 371 mm | 379 mm | 388 mm | 395 mm | 406 mm |
| Top Tube Length | 507 mm | 523 mm | 543 mm | 563 mm | 581 mm | 597 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.8 ° | 73.4 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.7 ° | 71.1 ° | 71.5 ° | 72.1 ° | 72.5 ° | 72.7 ° |
| Head Tube Length | 102 mm | 120 mm | 143 mm | 168 mm | 187 mm | 206 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 994 mm | 999 mm | 1012 mm | 1022 mm | 1031 mm | 1045 mm |
| Bottom Bracket Drop | 71 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 172 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 152 cm | 175 cm | 180 cm | 185 cm | 190 cm | 198 cm |
About this model
Venon EVO-RS 105 Di2 Aero completes the Vitus Venon model. Vitus released 32 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Vitus Venon EVO-GR Rival 2023 is the most economical model, with a starting price of 3399$. Vitus Venon EVO-RS Force AXS Aero 2023 on the other hand costs 5716$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4743$. In conclusion, this bike price is 92.65% more expensive than the price of the average Gravel bike.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.1 kg (17.86 lbs), the Venon EVO-RS 105 Di2 Aero model is slightly lighter than average. In other words, this model is 0.37% lighter than the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Venon EVO-RS 105 Di2 Aero components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Venon EVO-RS 105 Di2 Aero bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 160 cm – 198 cm (5.25 ft – 6.5 ft). In short, you can easily find one that suits you.
