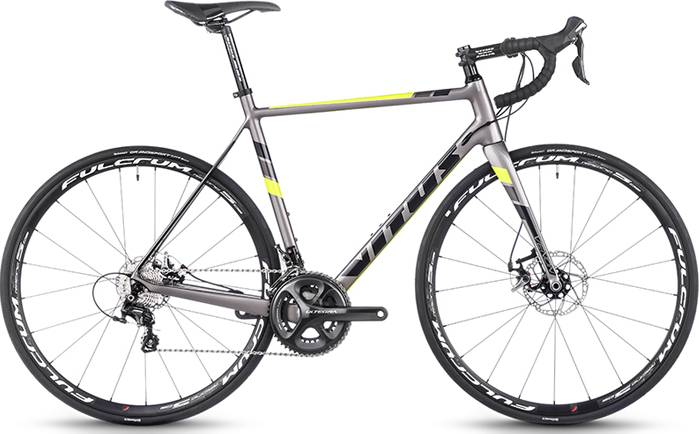

Vitus Venon VR Disc 2016
2016 Road
Estimate price |
2,408$
Weight | 8.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 1 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
50cm
160cm - 165cm
52cm
165cm - 172cm
54cm
170cm - 175cm
56cm
175cm - 152cm
60cm
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-modulus T700 HM-UD carbon, Disc brake specific, 135mm x 12mm through axle
Suspension Fork
High-modulus T700 HM-UD carbon, Tapered carbon steerer, disc brake specific, 15mm x 100mm through axle
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra 6800
Front Derailleur
Shimano Ultegra 6800, Braze On
Shift Levers
Shimano Ultegra 6800
Cassette
Shimano 105 5800, 11-speed, 11t-28t
Crank
Shimano Ultegra 6800, 50tx34t
Bottom Bracket
Shimano Ultegra 6800, BSA
Chain
KMC X11L, 11-speed
Wheels
Front Hub
Fulcrum Racing 5, Disc Brake, 100mm x 15mm QR through axle
Rear Hub
Fulcrum Racing 5, Disc Brake, 135mm x 12mm QR through axle
Rims
Fulcrum Racing 5, Disc Brake
Spokes
Fulcrum Racing 5, Disc Brake
Tires
Continental Grand Sport Race, 700c x 25c
Brakes
Brakes
TRP Spyre, 160mm rotor
Cockpit
Stem
Vitus, 3D forged 6061-T6 aluminium, + / - 7 degree rise
Handlebar
Vitus compact, 6061 Double Butted Alloy
Headset
Token A38M, Integrated, 1.1/8” – 1.5”
Seat
Saddle
Vitus
Seatpost
Vitus UD Carbon, 2D forged head with micro-adjustment, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.36 mm | 1.42 mm | 1.42 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 264 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 577 mm | 570 mm | 580 mm | 595 mm | 600 mm | 609 mm |
| Rake | 44 mm | 31 mm | 45 mm | 45 mm | 21 mm | 20 mm |
| Trail | 63 mm | 77 mm | 56 mm | 56 mm | 93 mm | 95 mm |
| Stack | 517.4 mm | 520.5 mm | 541.2 mm | 555.6 mm | 576.8 mm | 596 mm |
| Reach | 379 mm | 383.2 mm | 382.1 mm | 392.5 mm | 396.1 mm | 399.5 mm |
| Top Tube Length | 523 mm | 533 mm | 543 mm | 557.6 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 71 ° | 71 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 120 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 979 mm | 972 mm | 983 mm | 998 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm | cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 175 cm | 152 cm | cm | 193 cm |
Model Overview
Venon VR Disc completes the Vitus Venon model. 32 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
The most economical model, the Vitus Venon L Disc 2016 has a starting price of 1641$. Vitus Venon VR Disc 2016 on the other hand is the most expensive at 2188$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
If you want to purchase a solid General Road bike, it is important to know that the average cost is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Vitus released this model in 2016, its price was 2188$. Comparing the average cost of a General Road bike to this one, you will see that Venon VR Disc price is 14.26% higher.
General Road bikes average weight
If we make a quick analysis of the average weight of a General Road bike, we get 9 kg (19.84 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 8.49 kg (18.72 lbs), the Venon VR Disc model is a bit lighter than average. In other words, this model is 6.01% lighter than the average General Road bike.
Venon VR Disc components
Fork material
Venon VR Disc has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Venon VR Disc model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Venon VR Disc has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
